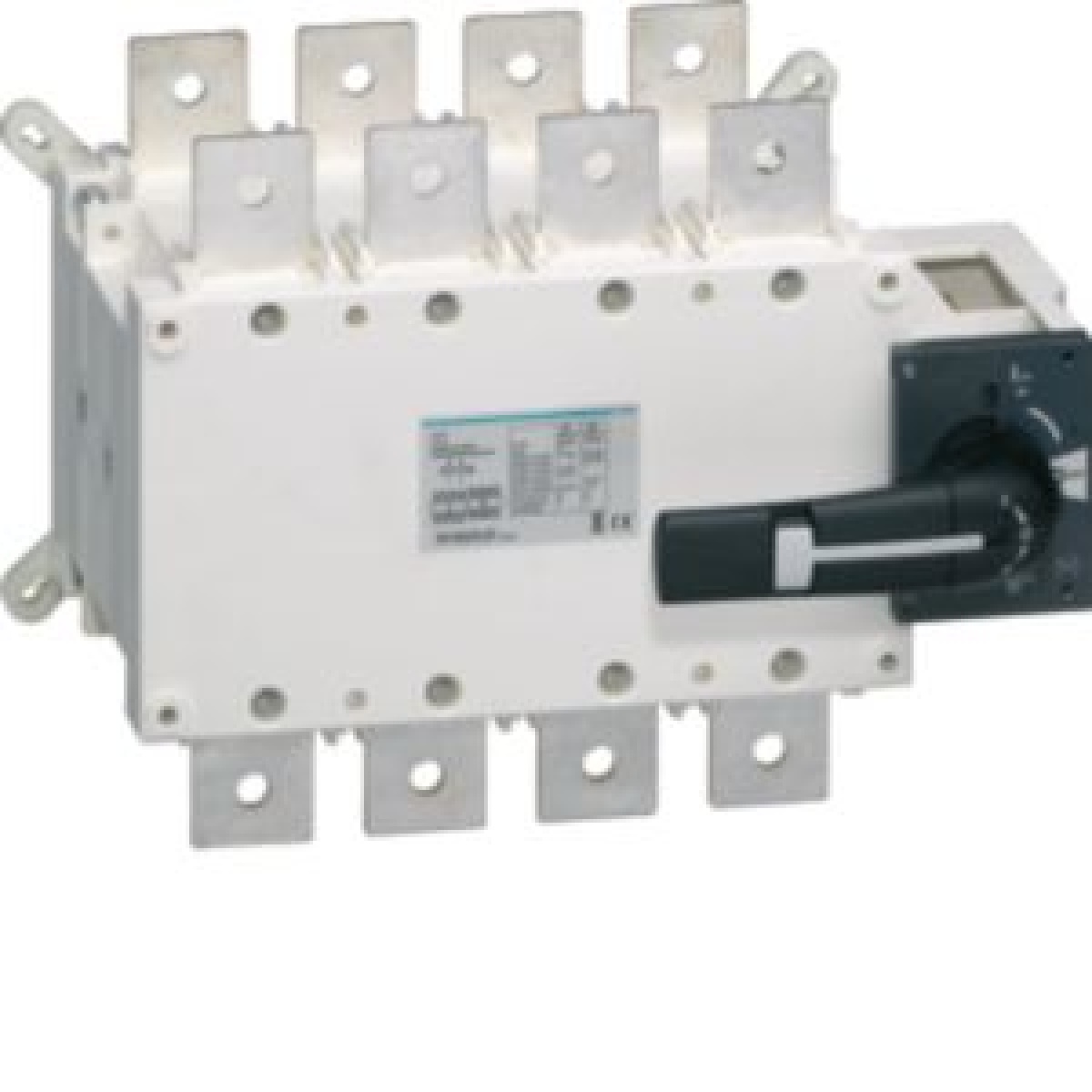

Invers cmdo manual 4P 630A
Cutting and Protection Devices
Invers cmdo manual 4P 630A
Manufacturer Ref:
HI458
Nortécnica Ref:
71HI458
EAN:
3250613190057
Description
Technical Information
Attributes
Width
379
Height
260
Depth
295
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
630
Number of poles
4
Rated operating voltage
380
690
Conditioned rated short-circuit current Iq
50
Width in number of modular spacings
12
Degree of protection IP, front side
IP00
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Cable clamp
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
225
Rated short-time withstand current lcw
17
Colour control element
Black
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Builtin device fixed builtin technique
Rated permanent current at AC-21, 400 V
630
Switching power at 400 V
414
Version as reversing switch
Yes
Rated permanent current at AC-23, 400 V
500
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager Sistemas Eléctricos Modulares SA
