Invers motor cgestão energia 4P 400A
Cutting and Protection Devices

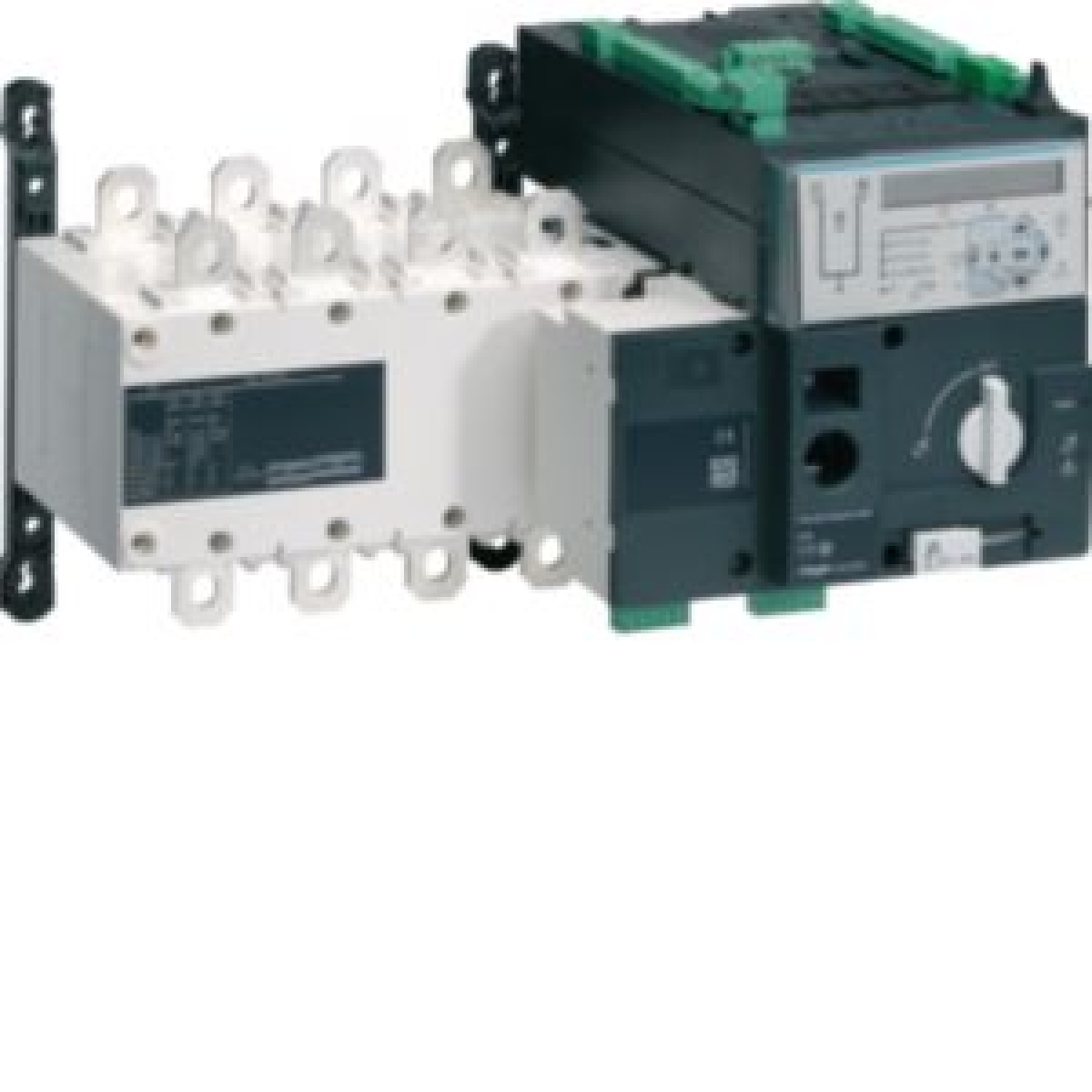

Invers motor cgestão energia 4P 400A
Manufacturer Ref:
HIC440E
Nortécnica Ref:
EAN:
3250613131807
Description
Technical Information
Attributes
Width
378
Height
244
Depth
239
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
400
Number of poles
4
Rated operating voltage
380
415
Conditioned rated short-circuit current Iq
50
Width in number of modular spacings
-
Degree of protection IP, front side
IP00
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
Yes
Type of electrical connection of main circuit
Cable clamp
Version as emergency stop installation
No
Type of control element
Other
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
180
Rated short-time withstand current lcw
15
Colour control element
Other
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
415
Motor drive optional
No
Voltage release optional
No
Device construction
Builtin device fixed builtin technique
Rated permanent current at AC-21, 400 V
400
Switching power at 400 V
263
Version as reversing switch
Yes
Rated permanent current at AC-23, 400 V
400
Degree of protection NEMA
Other
With pre-assembled cabling
No
Brands
Hager Sistemas Eléctricos Modulares SA
