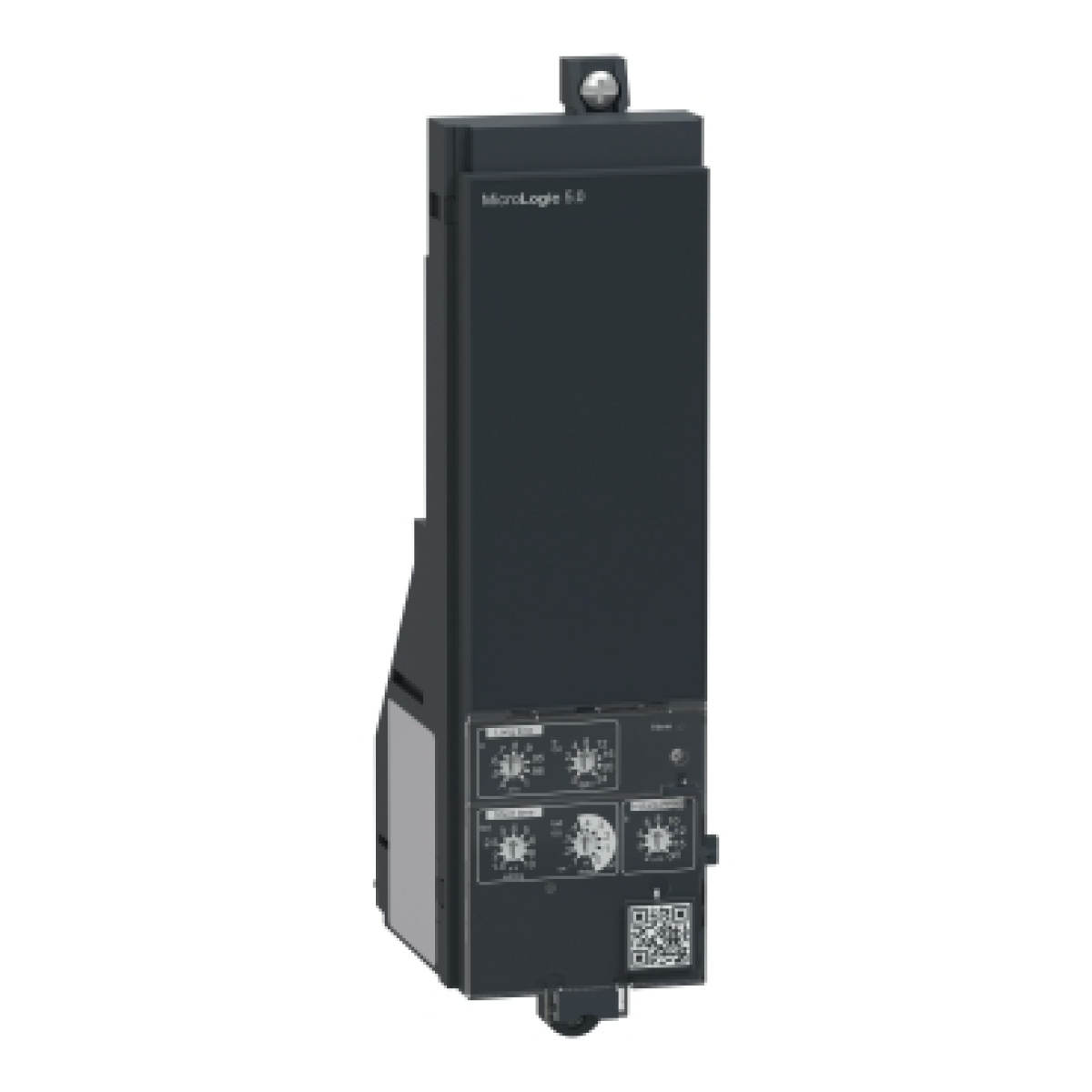

Micrologic 5 Fixo Manual NS630b-3200
Cutting and Protection Devices
Micrologic 5 Fixo Manual NS630b-3200
Manufacturer Ref:
C50FM
Nortécnica Ref:
EAN:
3606482098237
Description
Technical Information
Attributes
Width
53.6
Height
199.5
Depth
67.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
3200
Number of poles
-
Short-circuit release function
Delayed
Overload release current setting
252
3200
Voltage type supply voltage
-
External power supply required
No
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
3200
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
-
-
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
6400
48000
Current setting delayed short-circuit release
378
32000
Brands
Schneider
Technical Sheet
