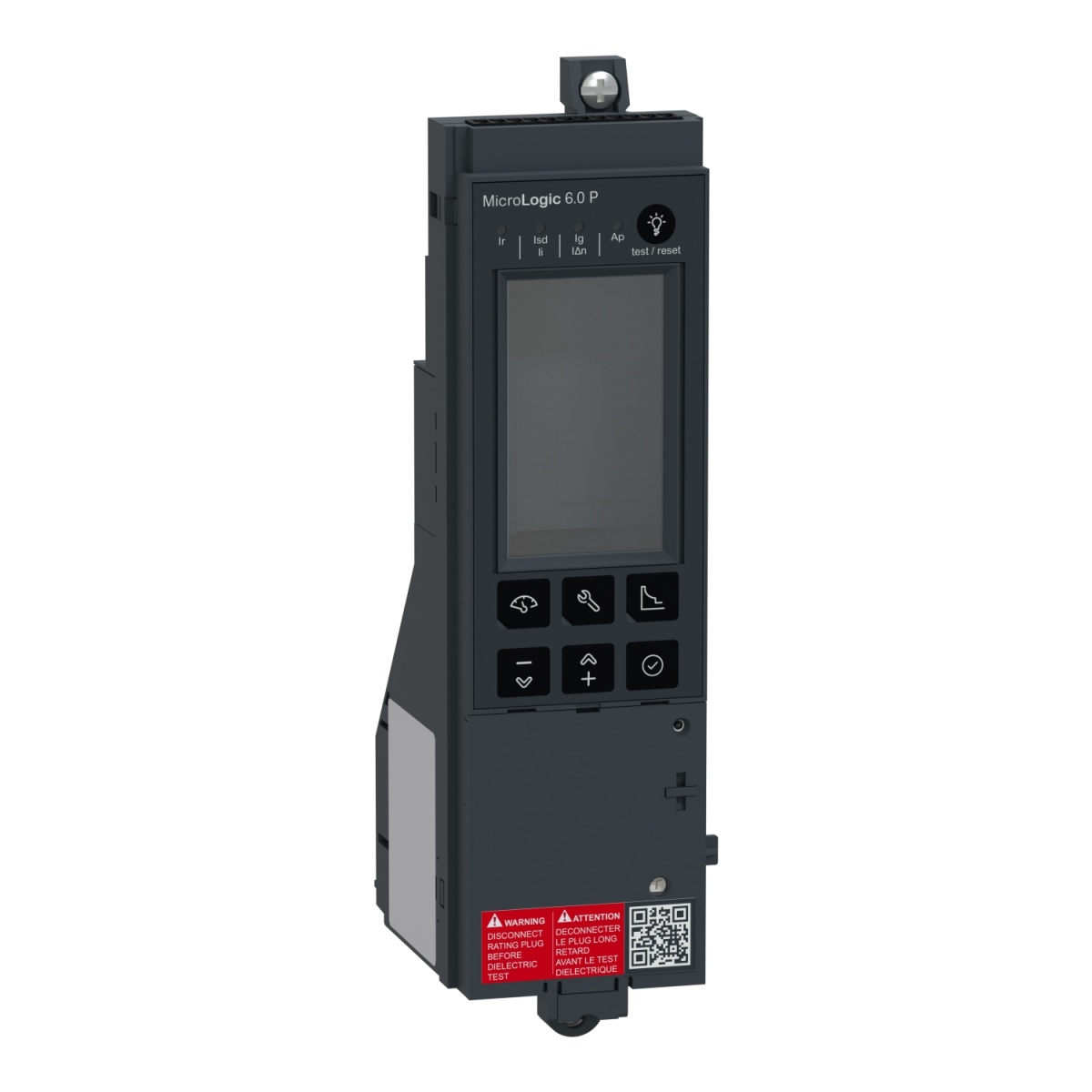

Micrologic 6.0P Extraivel Manual NS630b-1600
Cutting and Protection Devices
Micrologic 6.0P Extraivel Manual NS630b-1600
Manufacturer Ref:
C6PWM
Nortécnica Ref:
EAN:
3606482098428
Description
Technical Information
Attributes
Width
53.6
Height
199.5
Depth
67.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
1600
Number of poles
-
Short-circuit release function
Delayed
Overload release current setting
252
1600
Voltage type supply voltage
DC
External power supply required
Yes
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
Yes
Rated switch current
1600
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
24
24
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
3200
24000
Current setting delayed short-circuit release
378
16000
Brands
Schneider
