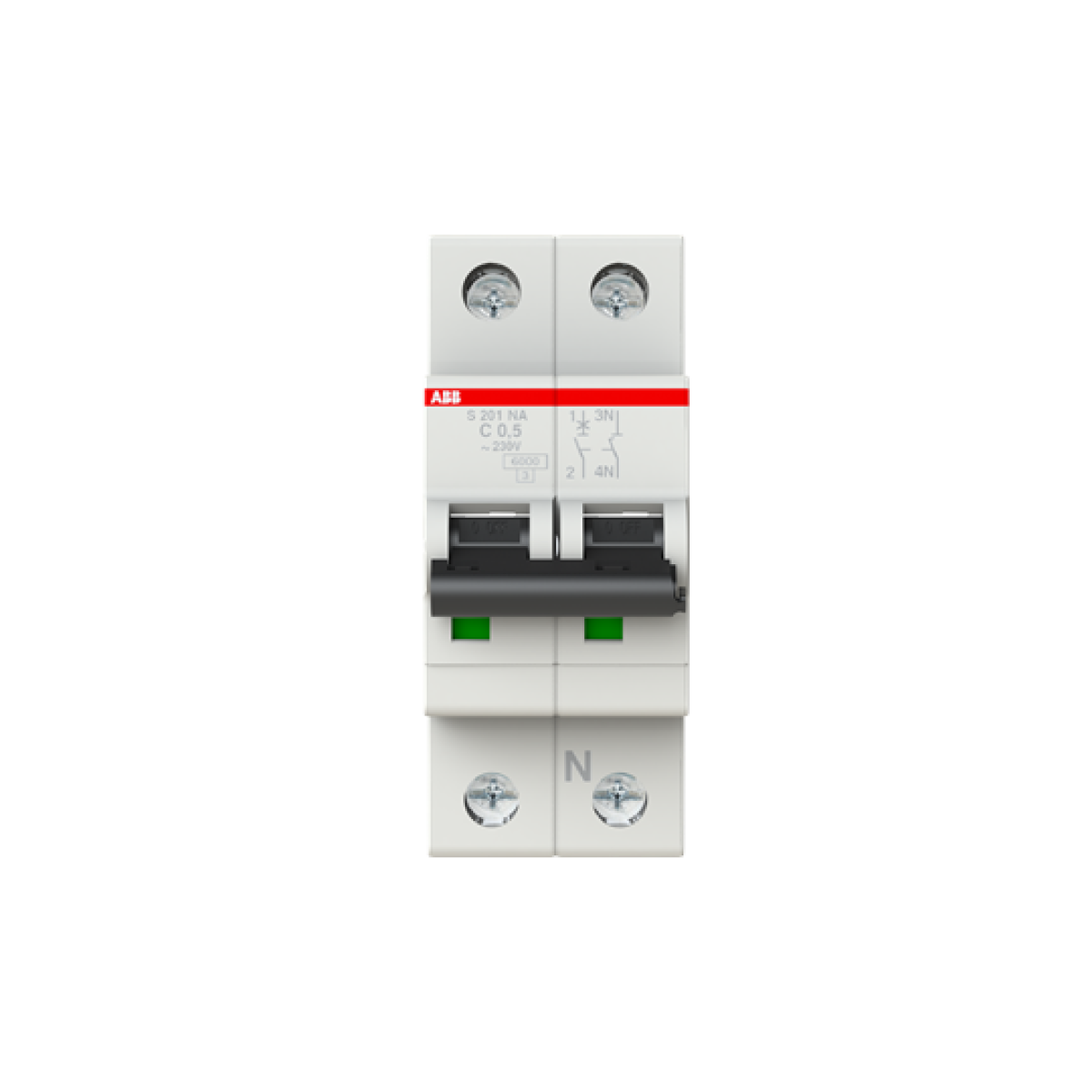

Miniature Circuit Breaker S200 1PN 05 A C
Cutting and Protection Devices
Miniature Circuit Breaker S200 1PN 05 A C
Manufacturer Ref:
2CDS251103R0984
Nortécnica Ref:
EAN:
4016779531665
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
69
Rated current
0.5
EF000228
230
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
2.0
Explosion-proof
No
Power loss
2.8
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10
Rated impulse withstand voltage Uimp
4
Brands
ABB
