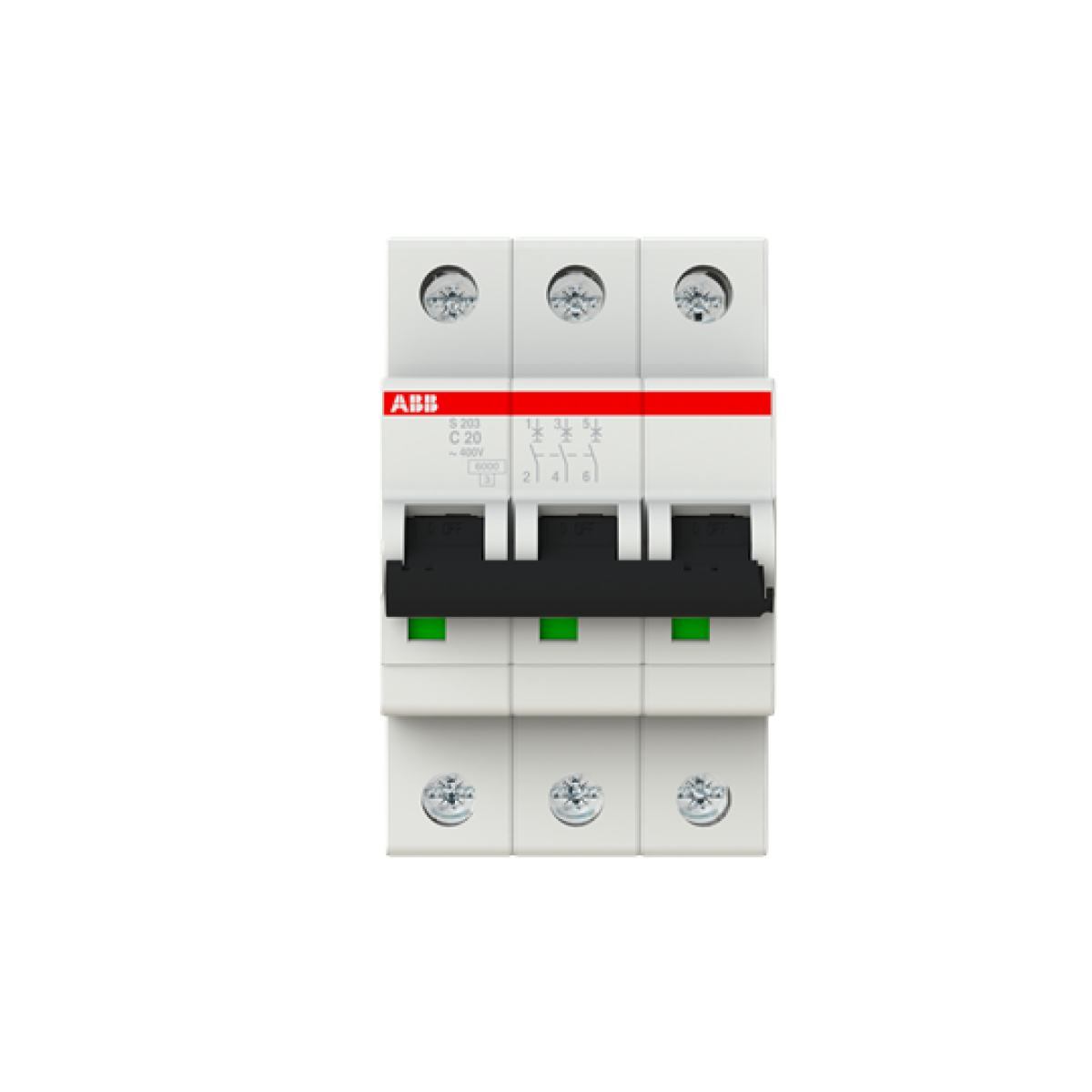

Miniature Circuit Breaker - S200 - 3P - 20 A - C
Cutting and Protection Devices
Miniature Circuit Breaker - S200 - 3P - 20 A - C
Manufacturer Ref:
2CDS253001R0204
Nortécnica Ref:
2707045
EAN:
4016779468107
Description
Technical Information
Attributes
Voltage type
Other
Profundidade incorporada
69
Corrente nominal especificada
20
EF000228
400
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
440
Current limiting class
3
Overvoltage category
3
Grau de poluição
3
Largura em número de módulos
3.0
Explosion-proof
No
Potência dissipada
7.5
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10
Tensão estipulada suportável ao choque Uimp
4
Brands
ABB
