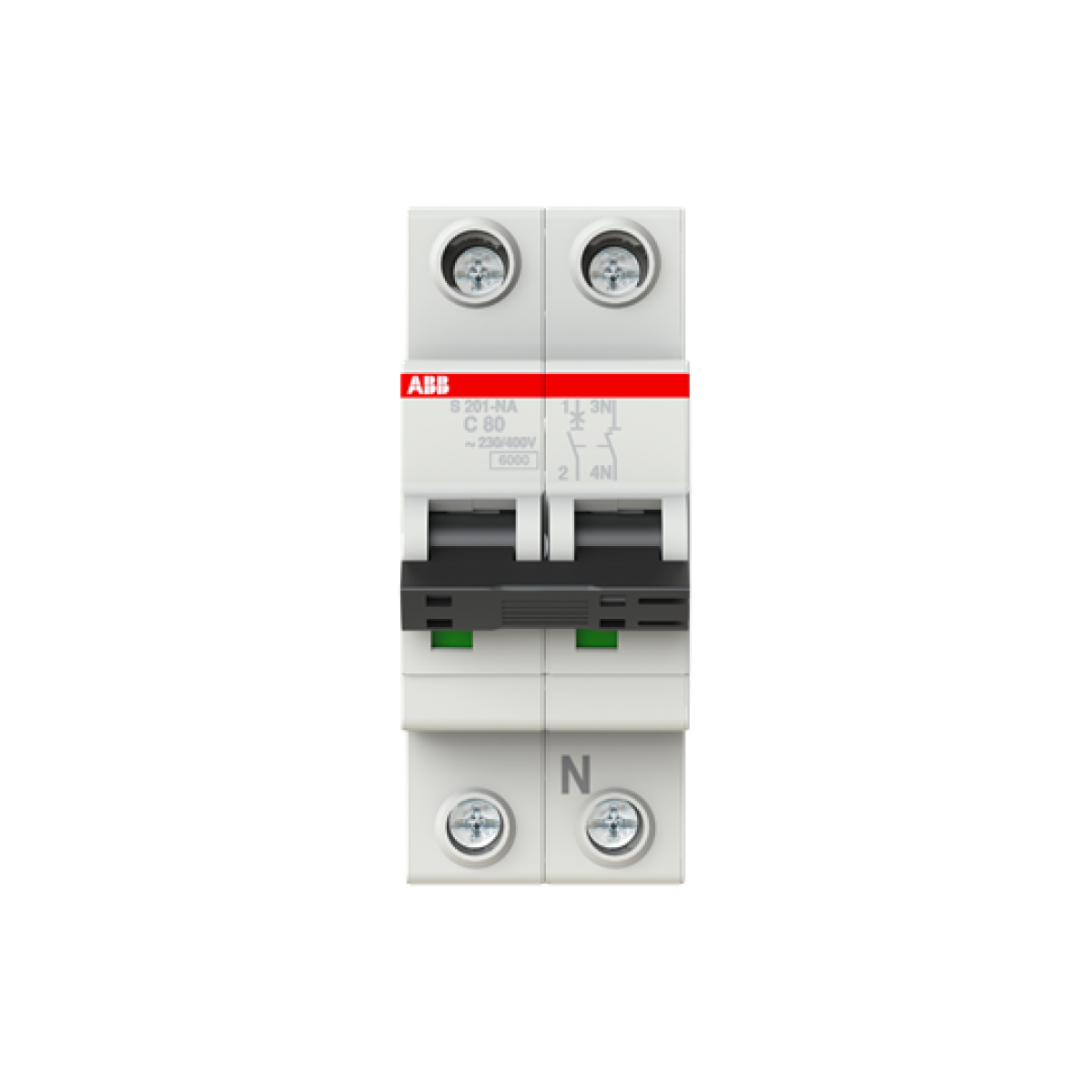

Miniature Circuit Breaker S200 80100A 1PN 80 A C
Cutting and Protection Devices
Miniature Circuit Breaker S200 80100A 1PN 80 A C
Manufacturer Ref:
2CDS251103R0804
Nortécnica Ref:
EAN:
4016779916585
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
69
Rated current
80
EF000228
230
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
2.0
Explosion-proof
No
Power loss
19.6
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
2.5
50
Connectable conductor cross section multi-wired
4
35
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
4
Brands
ABB
