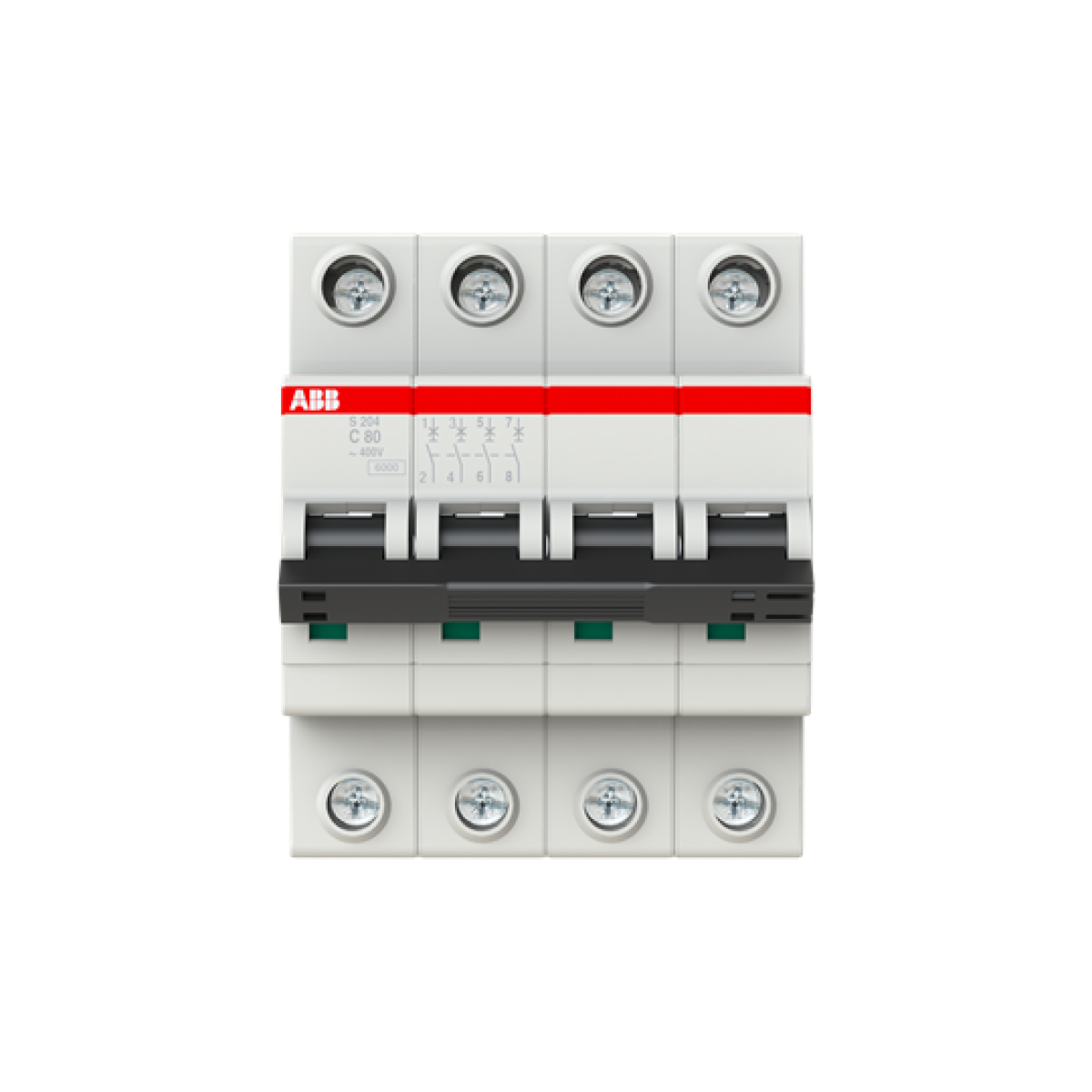

Miniature Circuit Breaker - S200 80-100A - 4P - 80 A - C
Cutting and Protection Devices
Miniature Circuit Breaker - S200 80-100A - 4P - 80 A - C
Manufacturer Ref:
2CDS254001R0804
Nortécnica Ref:
272CDS254001R0804
EAN:
4016779916424
Description
Technical Information
Attributes
Voltage type
Other
Profundidade incorporada
69
Corrente nominal especificada
80
EF000228
400
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
440
Current limiting class
3
Overvoltage category
3
Grau de poluição
3
Largura em número de módulos
4.0
Explosion-proof
No
Potência dissipada
8.1
Degree of protection IP
IP20
Number of protected poles
4
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
2.5
50
Connectable conductor cross section multi-wired
4
35
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6
Tensão estipulada suportável ao choque Uimp
4
Brands
ABB
