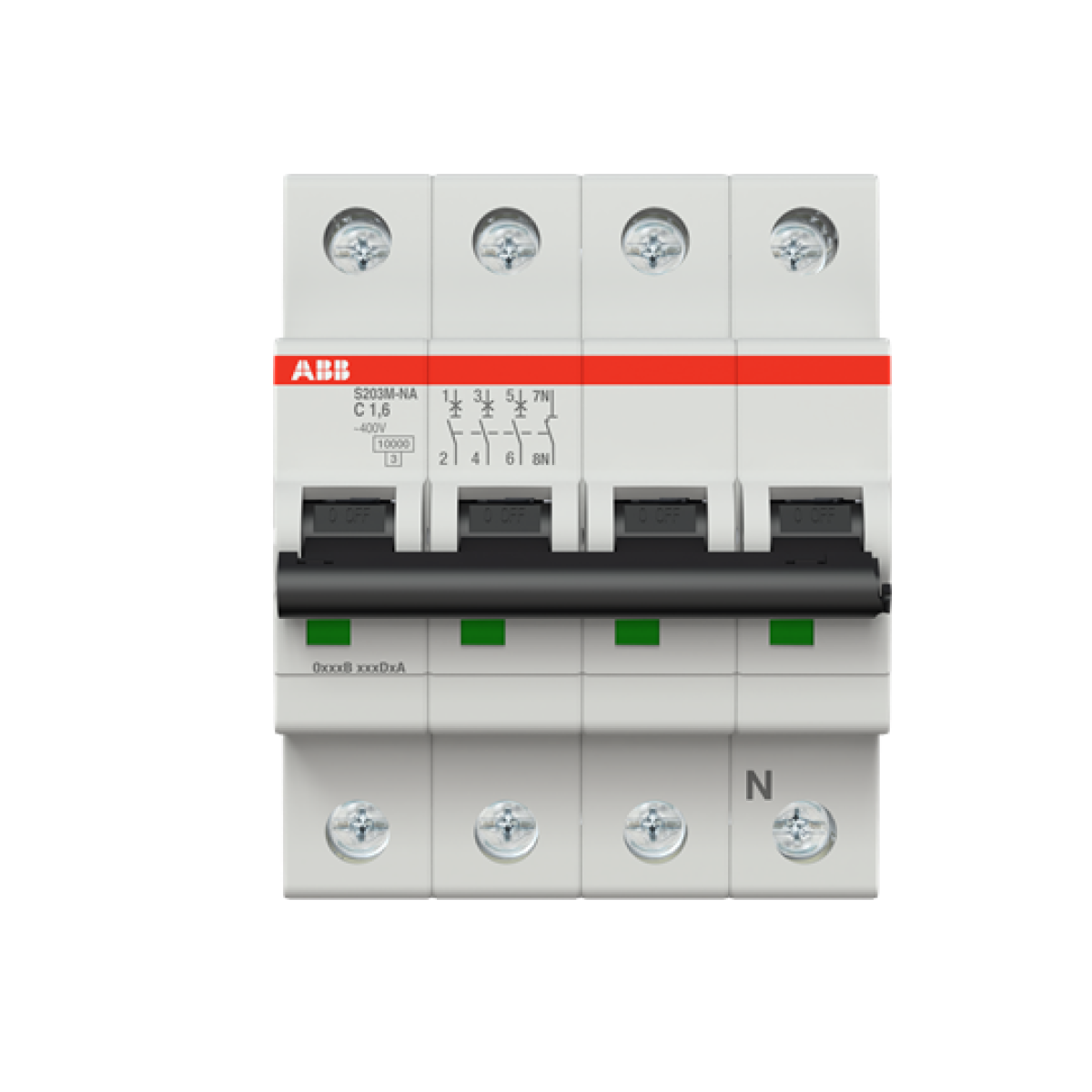

Miniature Circuit Breaker - S200M - 3PN - 1.6 A - C
Cutting and Protection Devices
Miniature Circuit Breaker - S200M - 3PN - 1.6 A - C
Manufacturer Ref:
2CDS273103R0974
Nortécnica Ref:
EAN:
4016779550505
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
69
Rated current
1.6
Rated voltage
400
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
4.0
Explosion-proof
No
Power loss
6.4
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15
Rated impulse withstand voltage Uimp
4
Brands
ABB
