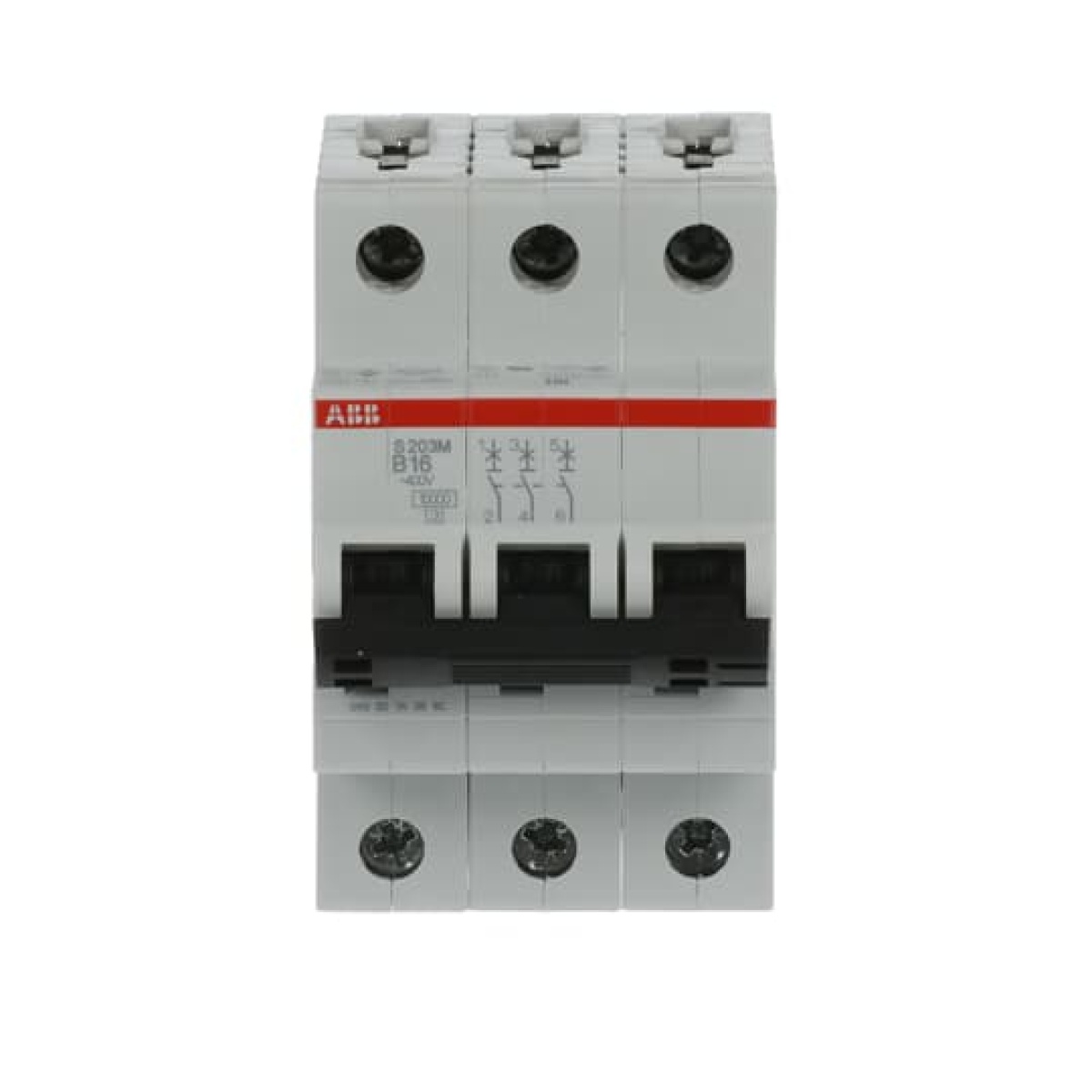

Miniature Circuit Breaker S200M 3P 16 A B
Cutting and Protection Devices
Miniature Circuit Breaker S200M 3P 16 A B
Manufacturer Ref:
2CDS273001R0165
Nortécnica Ref:
EAN:
4016779549691
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
69
Rated current
16
EF000228
400
Frequency
50
60
Release characteristic
B
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
3.0
Explosion-proof
No
Power loss
7.5
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15
Rated impulse withstand voltage Uimp
4
Brands
ABB
