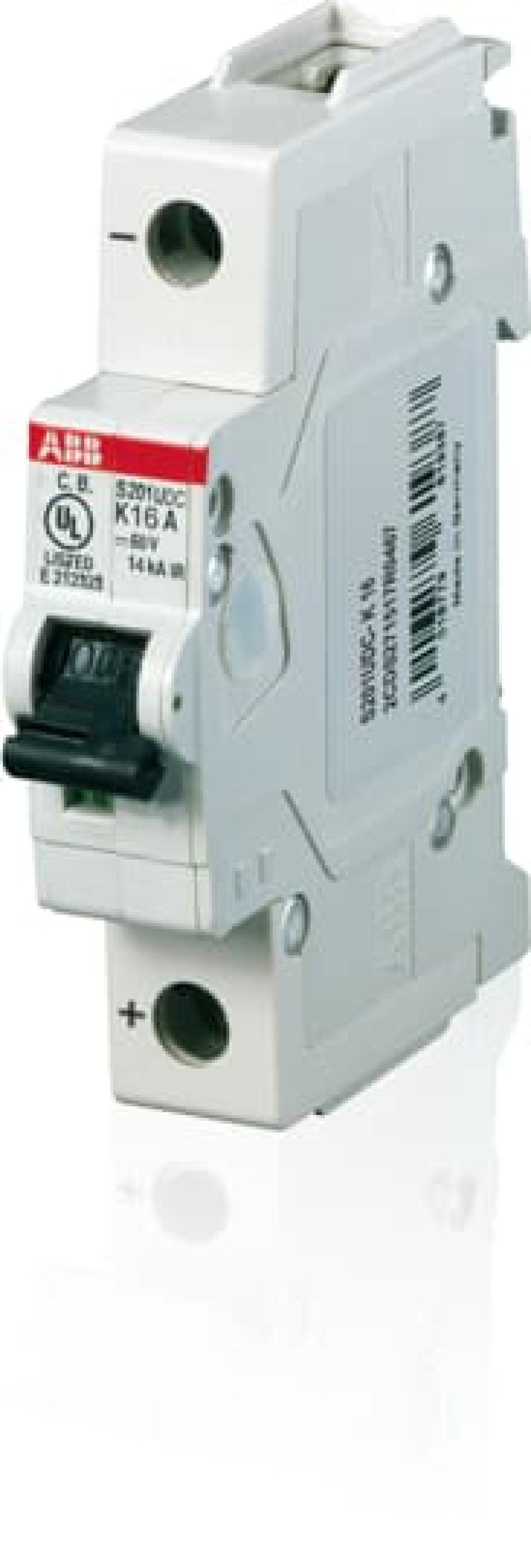

Miniature Circuit Breaker S200UDC 1P 32 A K
Cutting and Protection Devices
Miniature Circuit Breaker S200UDC 1P 32 A K
Manufacturer Ref:
2CDS271517R0537
Nortécnica Ref:
EAN:
4016779826082
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
69
Rated current
32
Rated voltage
125
Frequency
0
0
Release characteristic
K
Rated insulation voltage Ui
-
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
1.0
Explosion-proof
No
Power loss
4.2
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
25
Connectable conductor cross section multi-wired
0.75
16
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
14
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
14
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
4
Brands
ABB
