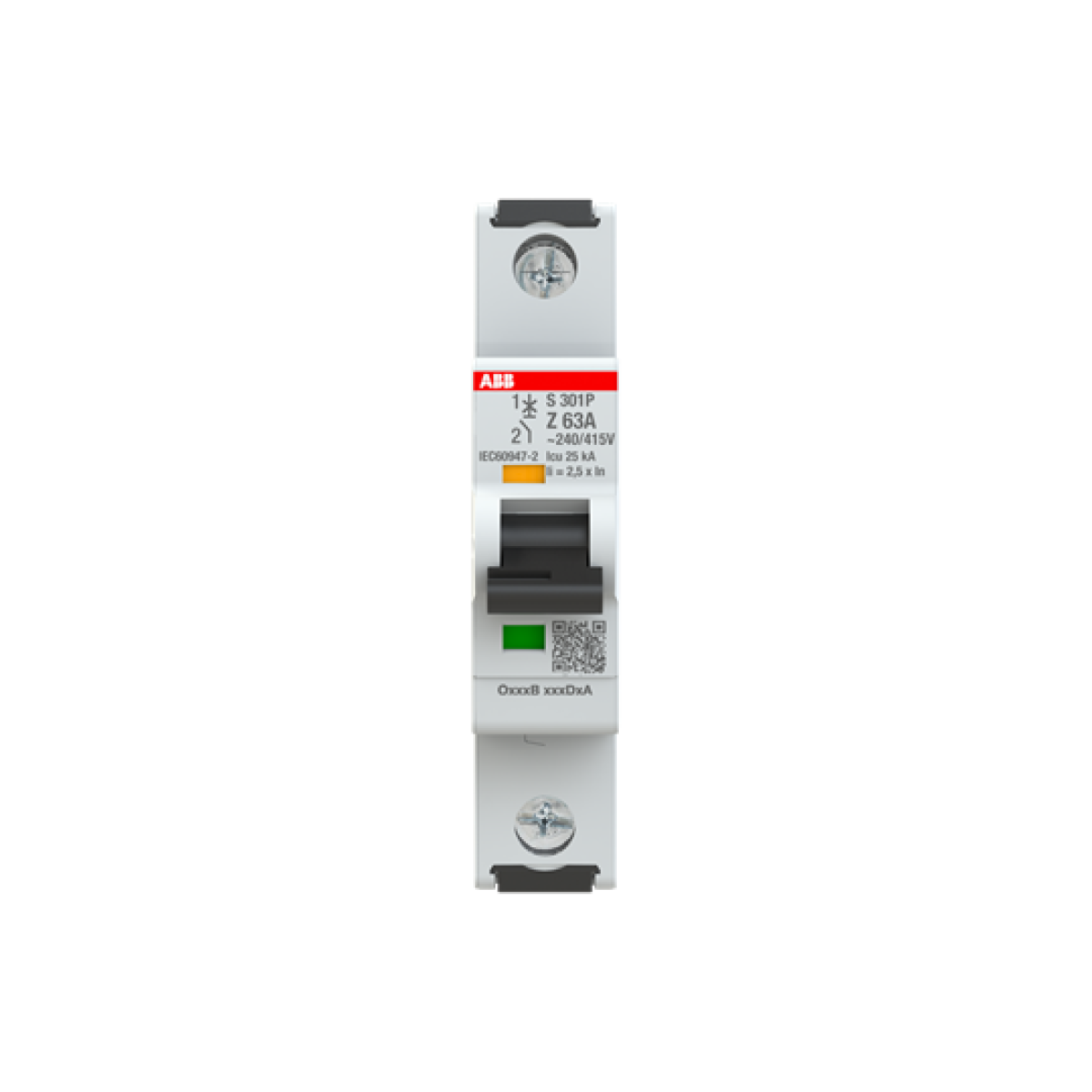

Miniature Circuit Breaker - S300P - 1P - 63 A - Z
Cutting and Protection Devices
Miniature Circuit Breaker - S300P - 1P - 63 A - Z
Manufacturer Ref:
2CDS381001R0608
Nortécnica Ref:
EAN:
4016779079969
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
69
Rated current
63
Rated voltage
240
Frequency
50
60
Release characteristic
Z
Rated insulation voltage Ui
500
Current limiting class
-
Overvoltage category
4
Pollution degree
3
Width in number of modular spacings
1.0
Explosion-proof
No
Power loss
6
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-40
70
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
6
Brands
ABB
