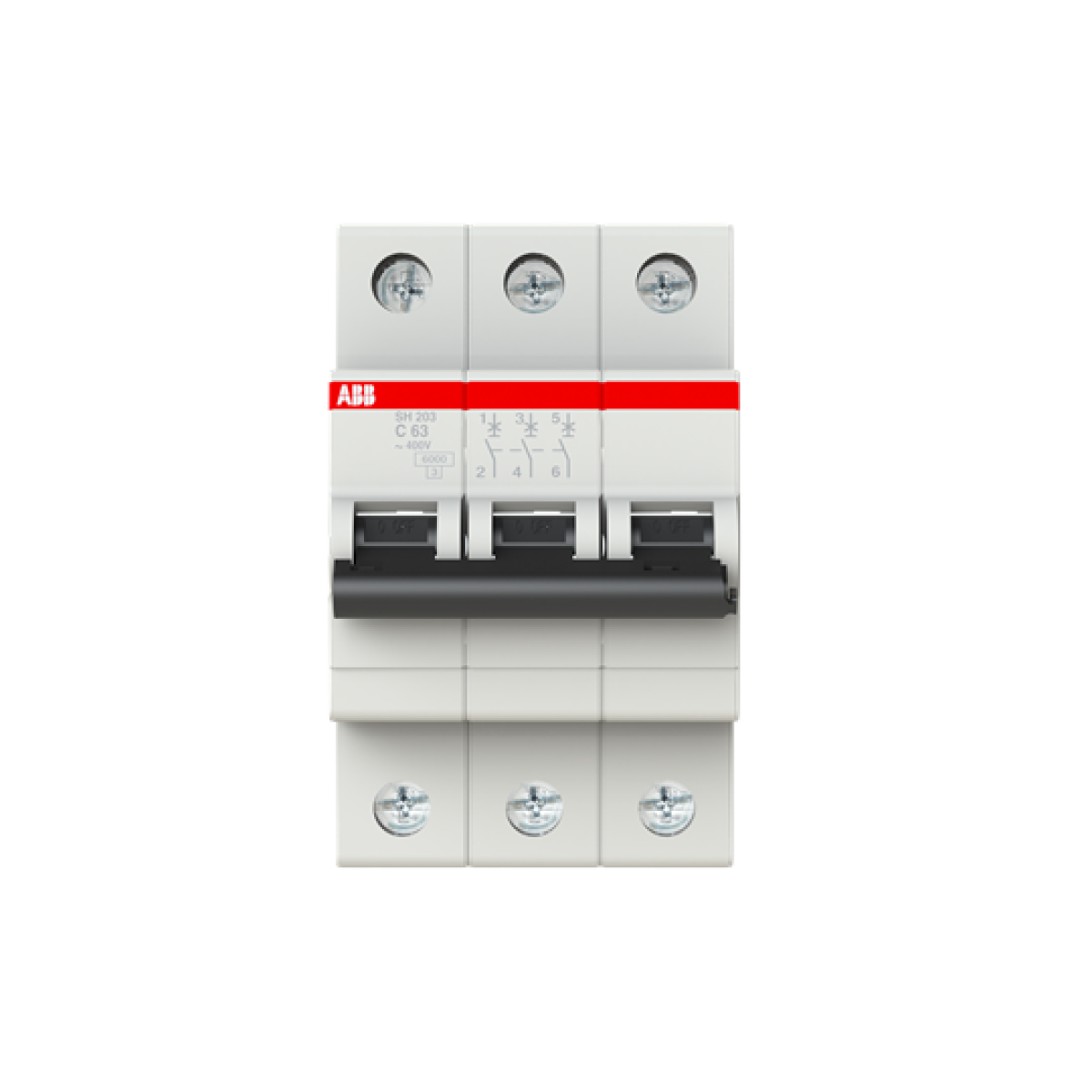

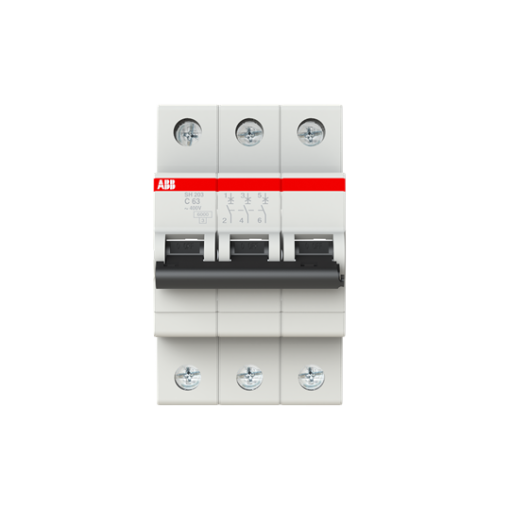

Miniature Circuit Breaker - SH200 - 3P - 63 A - C
Cutting and Protection Devices
Miniature Circuit Breaker - SH200 - 3P - 63 A - C
Manufacturer Ref:
2CDS213001R0634
Nortécnica Ref:
272CDS213001R0634
EAN:
4016779701310
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
69
Rated current
63
Rated voltage
400
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Largura em número de módulos
3.0
Explosion-proof
No
Power loss
14.4
Degree of protection IP
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
25
Connectable conductor cross section multi-wired
0.75
16
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
No
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
4
Brands
ABB
