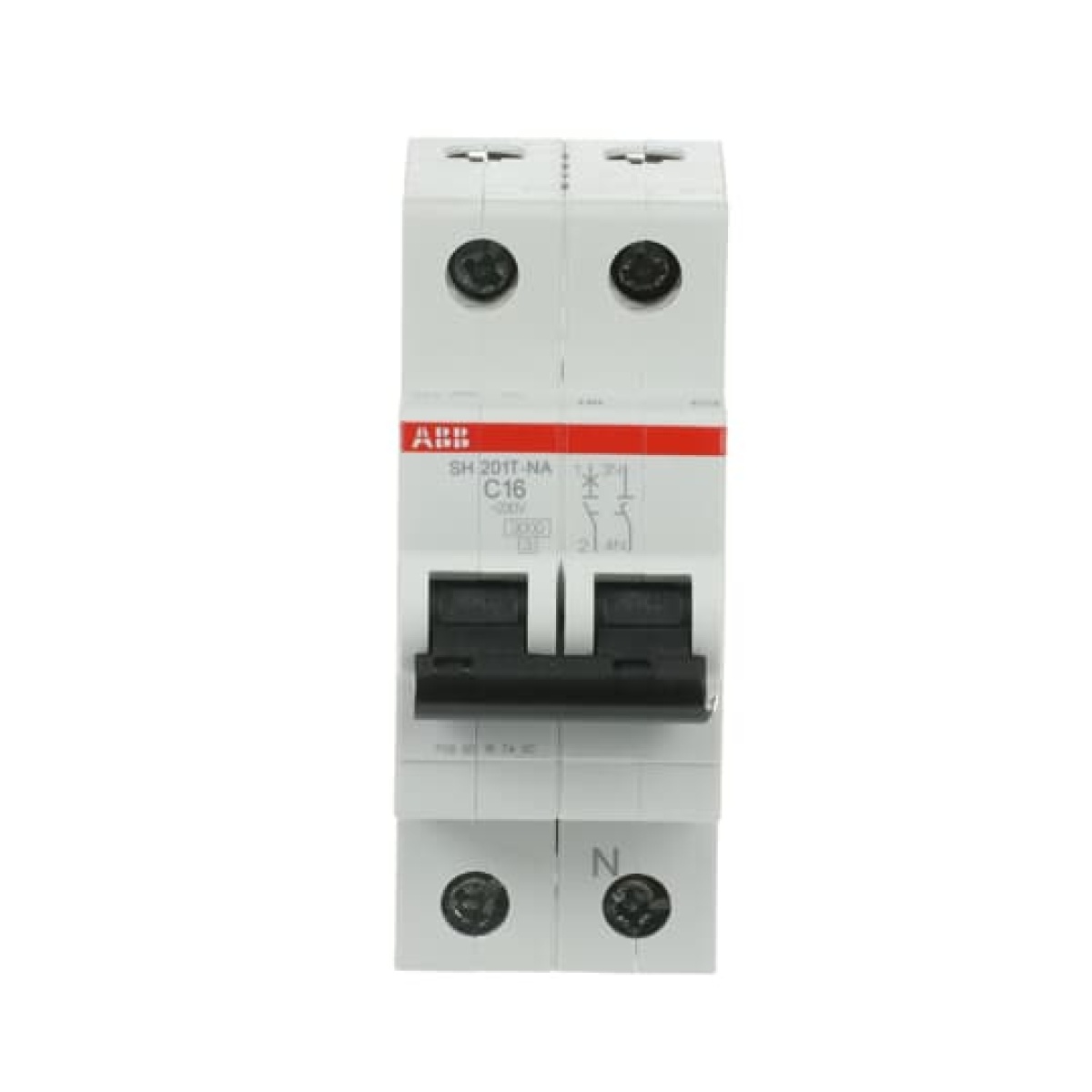

Miniature Circuit Breaker - SH200T - 1PN - 16 A - C
Cutting and Protection Devices
Miniature Circuit Breaker - SH200T - 1PN - 16 A - C
Manufacturer Ref:
2CDS231103R0164
Nortécnica Ref:
2701231103R0164
EAN:
4016779632157
Description
Technical Information
Attributes
Voltage type
Other
Profundidade incorporada
69
Corrente nominal especificada
16
EF000228
230
Frequency
50
60
Release characteristic
C
Tensão nominal de isolamento Ui
440
Current limiting class
3
Overvoltage category
3
Grau de poluição
2
Largura em número de módulos
2.0
Explosion-proof
No
Potência dissipada
5
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0.75
25
Connectable conductor cross section multi-wired
0.75
16
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Additional equipment possible
No
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Tensão estipulada suportável ao choque Uimp
4
Brands
ABB
