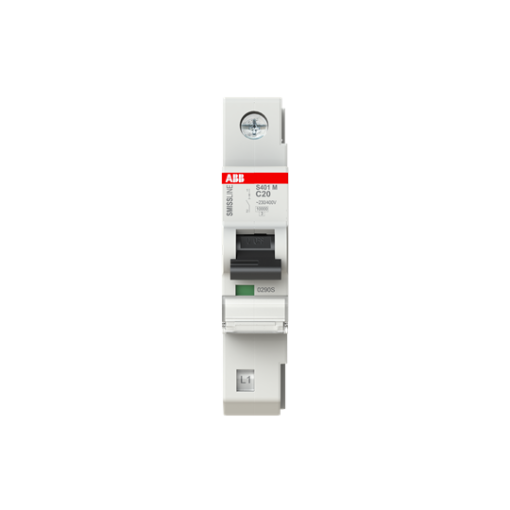

Miniature Circuit Breaker
Cutting and Protection Devices
Miniature Circuit Breaker
Manufacturer Ref:
2CCS571001R0204
Nortécnica Ref:
27S401MC20
EAN:
7612270101436
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
75
Rated current
20
Rated voltage
240
Frequency
50
60
Release characteristic
C
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Largura em número de módulos
1
Explosion-proof
No
Power loss
2
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15
Rated impulse withstand voltage Uimp
4
Brands
ABB
Technical Sheet
