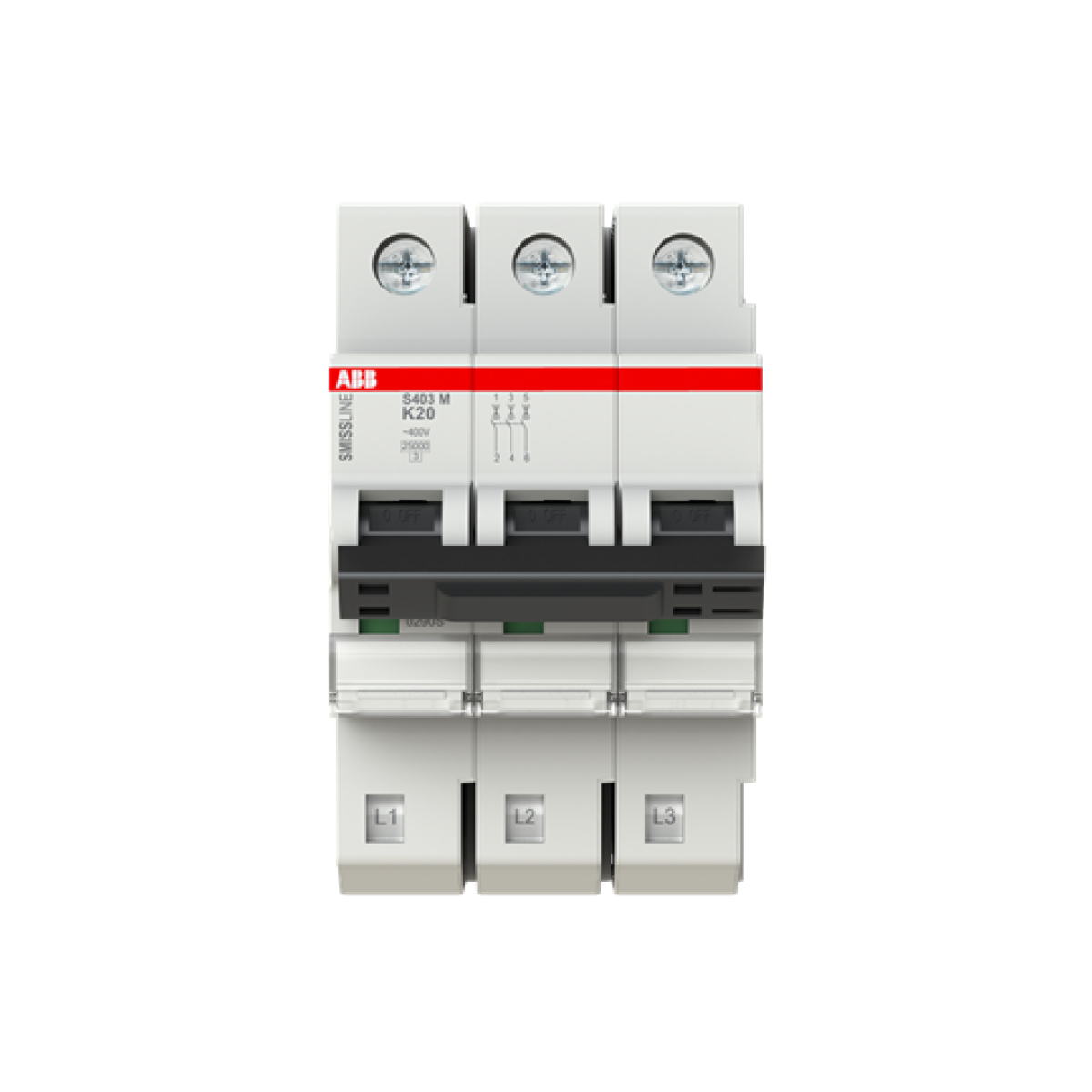

Miniature Circuit Breaker
Cutting and Protection Devices
Miniature Circuit Breaker
Manufacturer Ref:
2CCS573001R0487
Nortécnica Ref:
EAN:
7612270103256
Description
Technical Information
Attributes
Voltage type
Other
Built-in depth
75
Rated current
20
EF000228
415
Frequency
50
60
Release characteristic
K
Rated insulation voltage Ui
440
Current limiting class
3
Overvoltage category
3
Pollution degree
3
Width in number of modular spacings
3
Explosion-proof
No
Power loss
6
EF005474
IP20
Number of protected poles
3
Concurrently switching neutral conductor
No
Connectable conductor cross section solid-core
0.75
35
Connectable conductor cross section multi-wired
0.75
25
Ambient temperature during operating
-25
60
Flush-mounted installation
No
Additional equipment possible
Yes
Number of poles total
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15
Rated impulse withstand voltage Uimp
4
Brands
ABB
