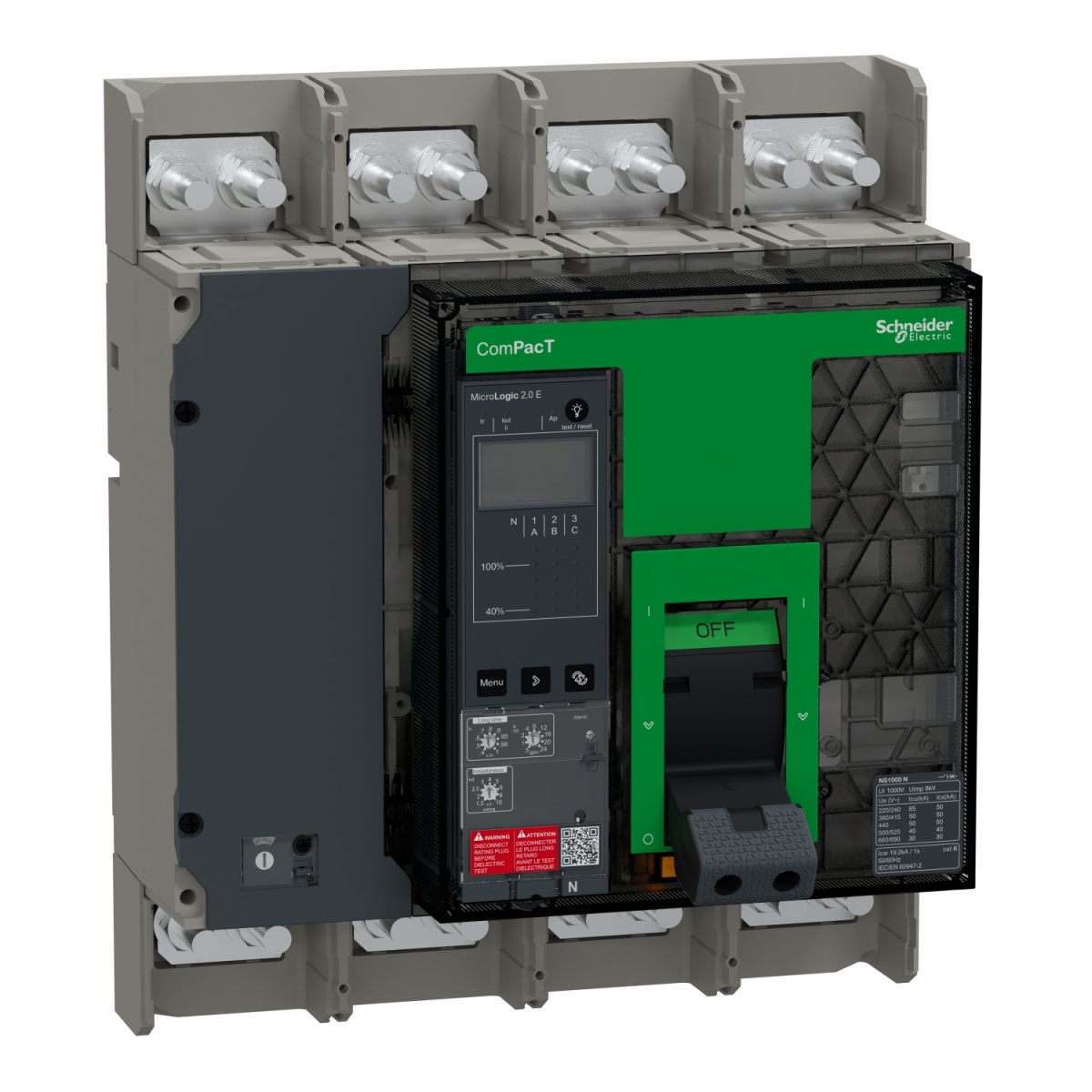

NS1000N 50kA 4P 1000A Fixo Manual 2.0E
Cutting and Protection Devices
NS1000N 50kA 4P 1000A Fixo Manual 2.0E
Manufacturer Ref:
C100N42EFM
Nortécnica Ref:
51C100N42EFM
EAN:
3606482098046
Description
Technical Information
Attributes
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
1000
With integrated under voltage release
No
Number of poles
4
Overload release current setting
400
1000
Number of auxiliary contacts as change-over contact
0
Rated voltage
690
690
Power loss
88
Degree of protection IP
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Wing knob
With switched-off indicator
Yes
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50
Adjustment range short-term delayed short-circuit release
-
-
Adjustment range undelayed short-circuit release
600
10000
Suitable for DIN rail top hat rail mounting
No
Integrated earth fault protection
No
Motor drive optional
Yes
Device construction
Built-in device fixed built-in technique
DIN rail top hat rail mounting optional
No
Complete device with protection unit
Yes
Brands
Schneider
