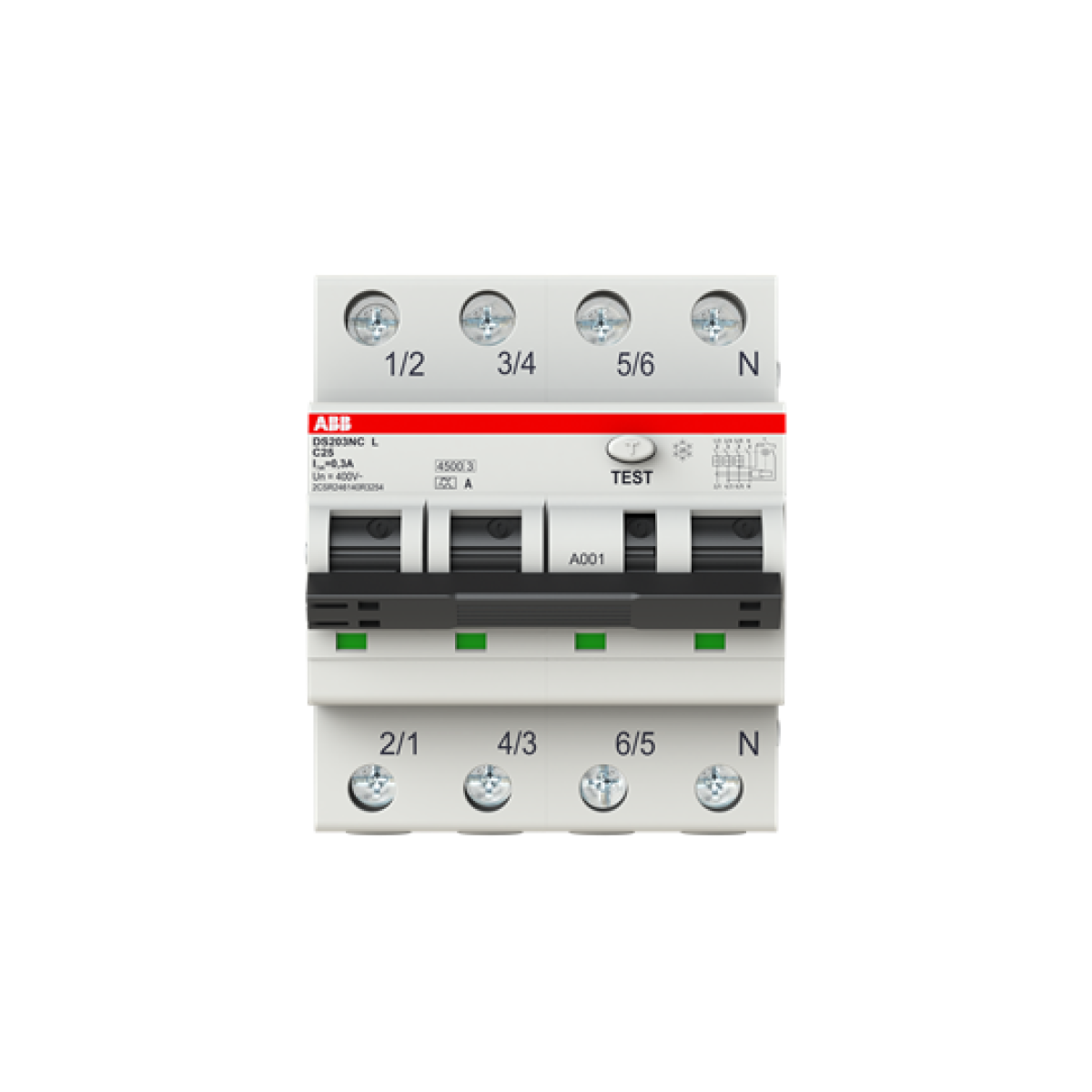

Residual Current Circuit Breaker with Overcurrent Protection
Cutting and Protection Devices
Residual Current Circuit Breaker with Overcurrent Protection
Manufacturer Ref:
2CSR246140R3254
Nortécnica Ref:
EAN:
8012542354024
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
69
Rated current
25
EF000228
415
Release characteristic
C
Rated insulation voltage Ui
500
Rated fault current
0.3
Leakage current type
A
Surge current capacity
0.25
Current limiting class
3
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
4
Power loss
10.3
Frequency
50/60 Hz
Degree of protection IP
IP2X
Number of protected poles
3
Concurrently switching neutral conductor
Yes
Rated short-circuit breaking capacity according to IEC 60947-2
6
Connectable conductor cross section solid-core
25
25
Connectable conductor cross section multi-wired
25
25
With interlocking device
Yes
Ambient temperature during operating
-25
55
Flush-mounted installation
No
Number of poles total
4
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
4.5
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
4.5
Brands
ABB
