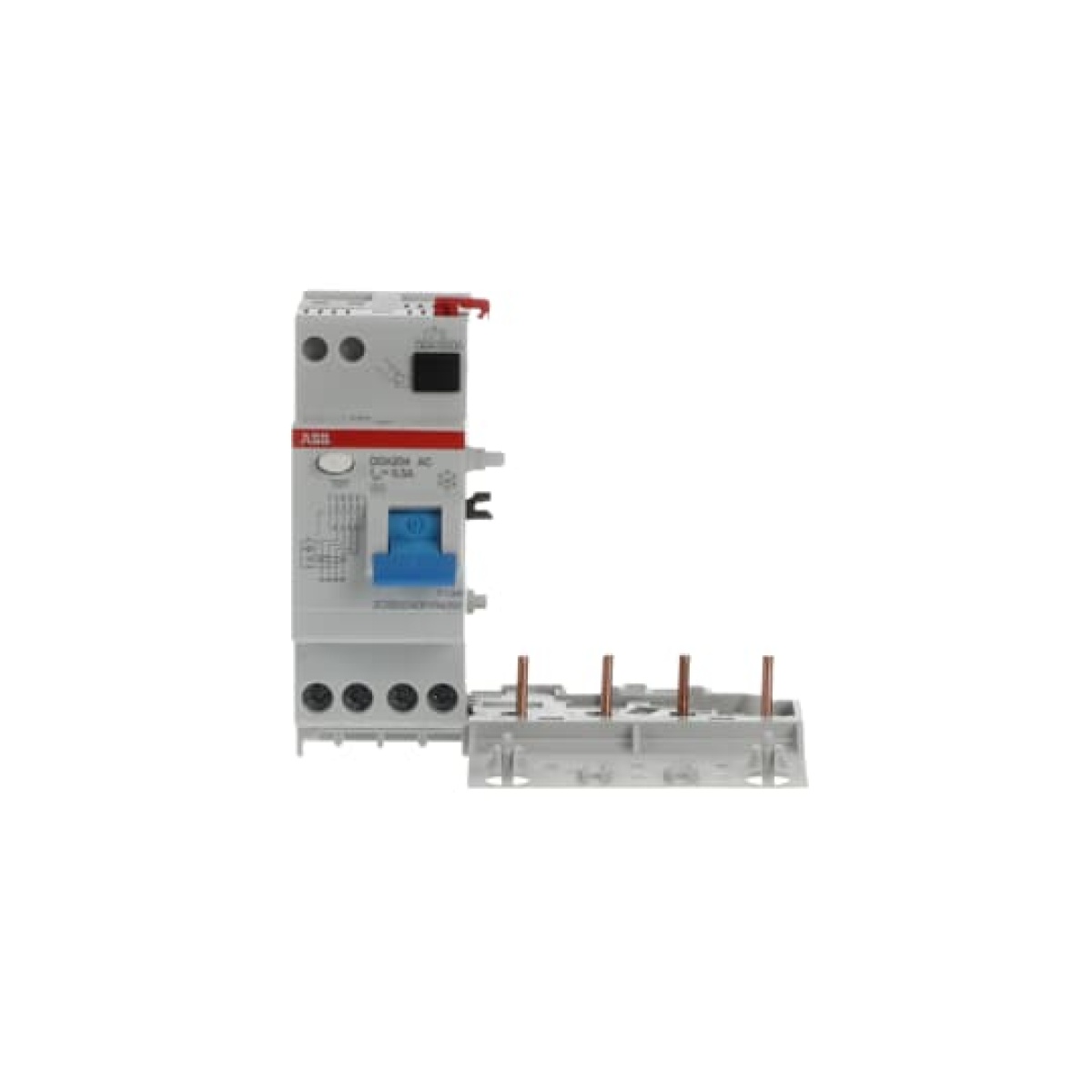

Residual Current Device Block
Cutting and Protection Devices
Residual Current Device Block
Manufacturer Ref:
2CSB204001R4250
Nortécnica Ref:
2754204001R4250
EAN:
8012542794806
Description
Technical Information
Attributes
Corrente nominal
25
Rated insulation voltage Ui
500
Number of poles
4
Delay adjustable
No
Max. delay time
-
Leakage current type
AC
Surge current capacity
-
Pollution degree
-
Rated fault current
0.5
0.5
Nominal voltage
230
400
Power loss
3
Frequency
50/60 Hz
Degree of protection IP
IP2X
Connectable conductor cross section solid-core
16
16
Connectable conductor cross section multi-wired
16
16
With interlocking device
Yes
Ambient temperature during operating
-25
55
Rated fault current adjustable
No
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Brands
ABB
Technical Sheet
