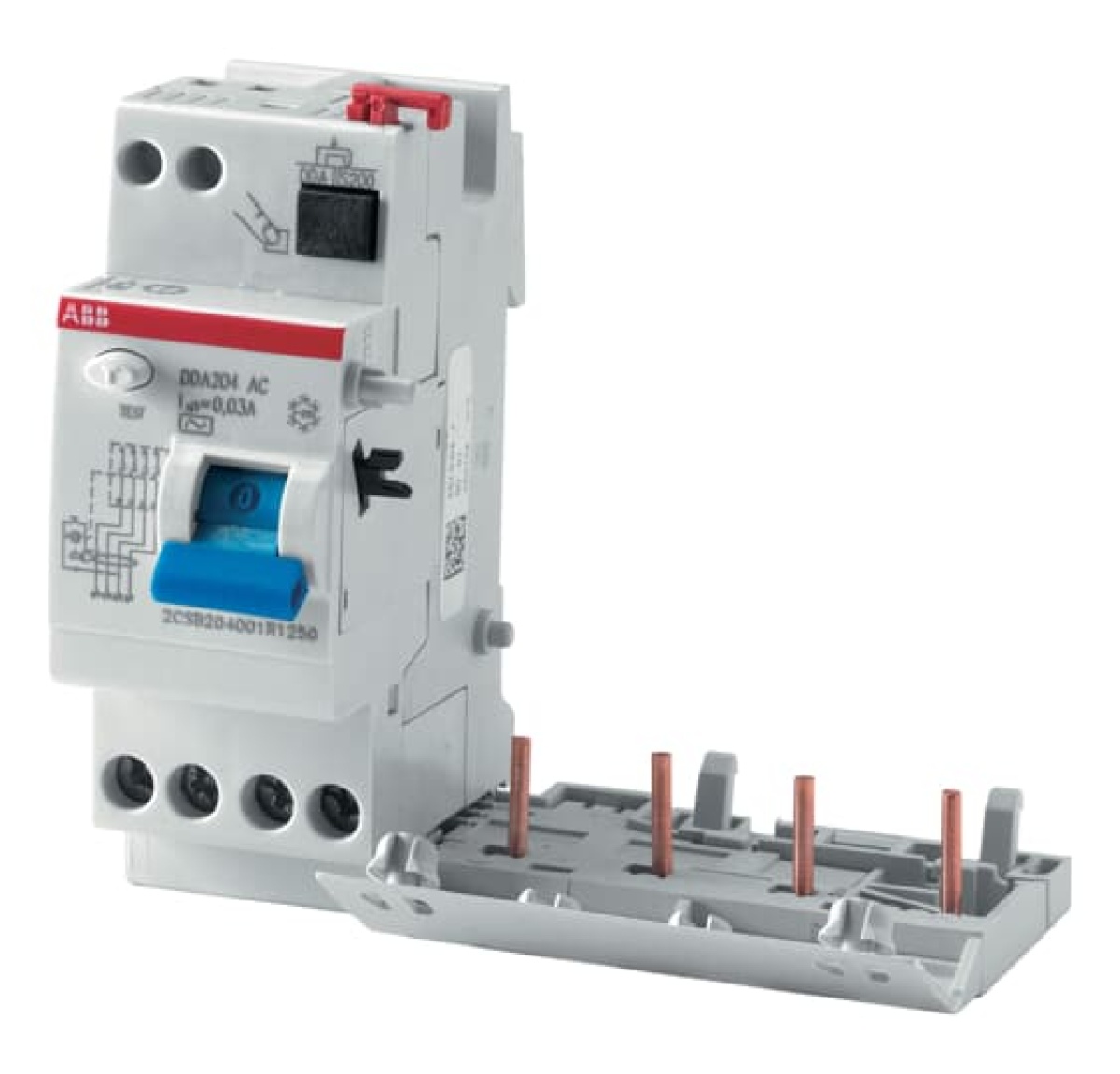

Residual Current Device Block
Cutting and Protection Devices
Residual Current Device Block
Manufacturer Ref:
2CSB204101R3630
Nortécnica Ref:
272CSB204101R3630
EAN:
8012542798804
Description
Technical Information
Attributes
Corrente nominal
63
Rated insulation voltage Ui
500
Number of poles
4
Delay adjustable
No
Max. delay time
-
Leakage current type
A
Surge current capacity
-
Pollution degree
-
Rated fault current
0.3
0.3
Nominal voltage
230
400
Power loss
7.6
Frequency
50/60 Hz
Degree of protection IP
IP2X
Connectable conductor cross section solid-core
25
25
Connectable conductor cross section multi-wired
25
25
With interlocking device
Yes
Ambient temperature during operating
-25
55
Rated fault current adjustable
No
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
4
Brands
ABB
Technical Sheet
