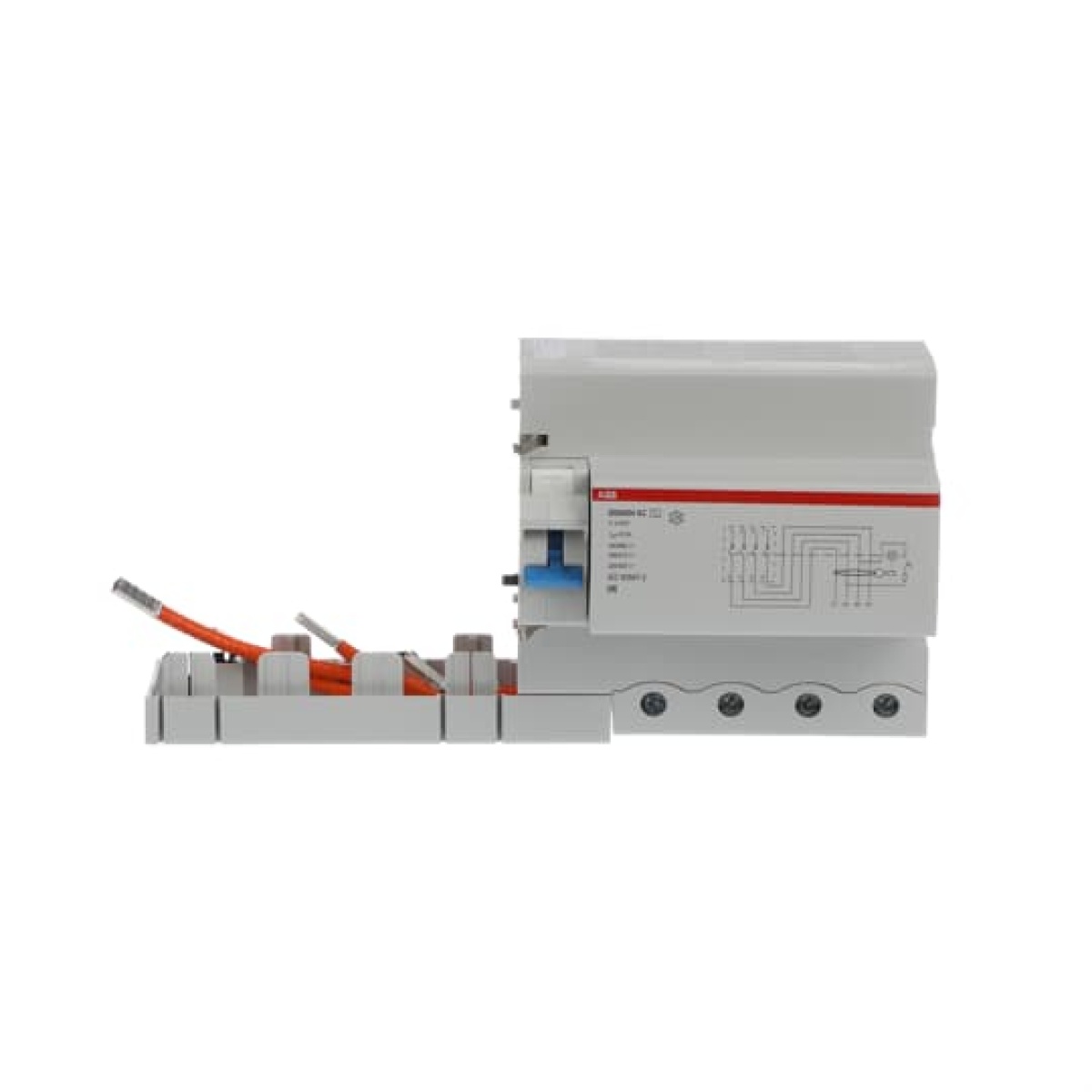

Residual Current Device Block
Cutting and Protection Devices
Residual Current Device Block
Manufacturer Ref:
2CSB804001R3630
Nortécnica Ref:
2701B804001R3630
EAN:
8012542924609
Description
Technical Information
Attributes
Corrente nominal
63
Rated insulation voltage Ui
690
Number of poles
4
Delay adjustable
No
Max. delay time
-
Leakage current type
AC
Surge current capacity
0.25
Pollution degree
-
Rated fault current
0.3
0.3
Nominal voltage
230
690
Power loss
13.5
Frequency
50/60 Hz
Degree of protection IP
IP2X
Connectable conductor cross section solid-core
6
50
Connectable conductor cross section multi-wired
6
70
With interlocking device
No
Ambient temperature during operating
-25
60
Rated fault current adjustable
No
Anti-nuisance tripping version
No
Rated impulse withstand voltage Uimp
6
Brands
ABB
