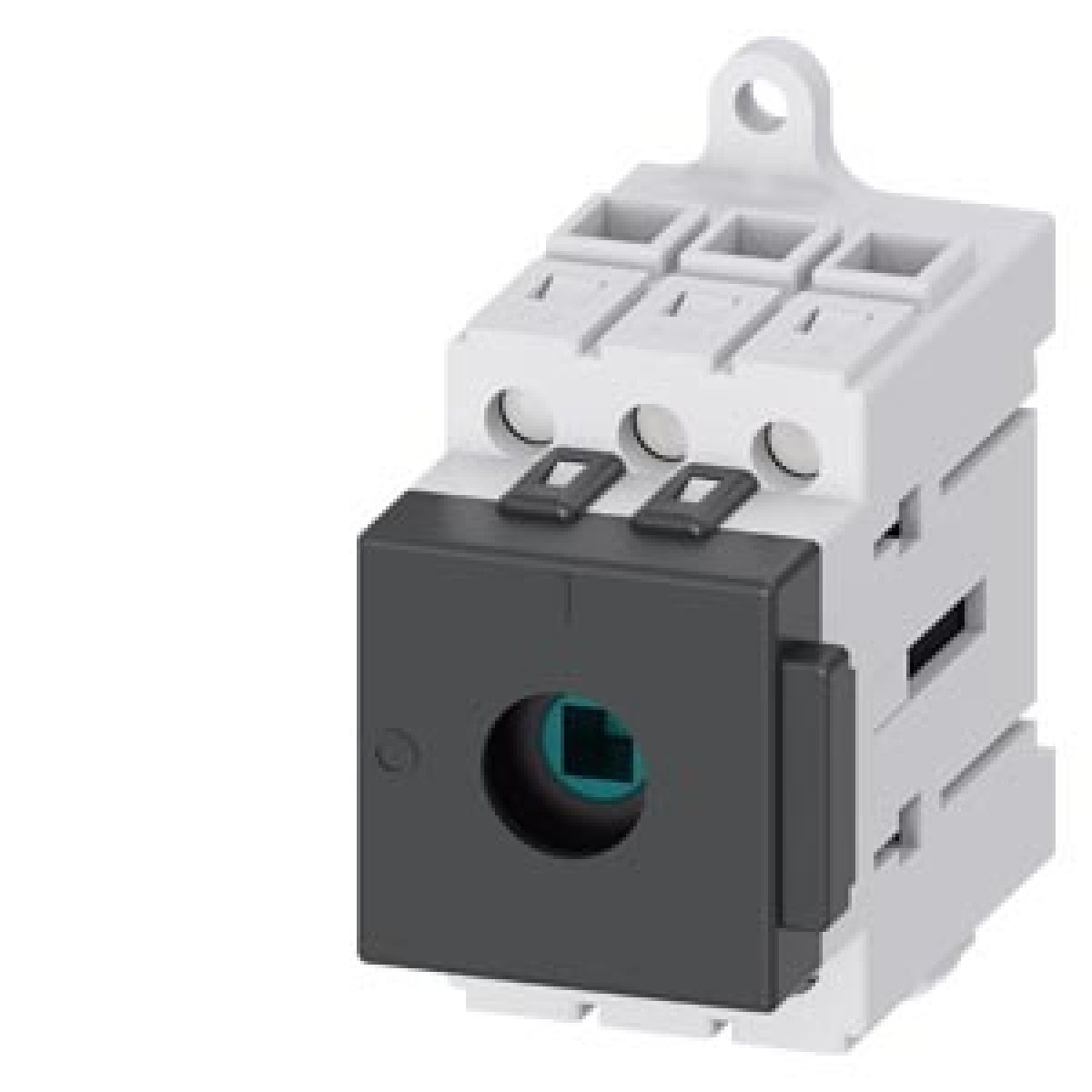

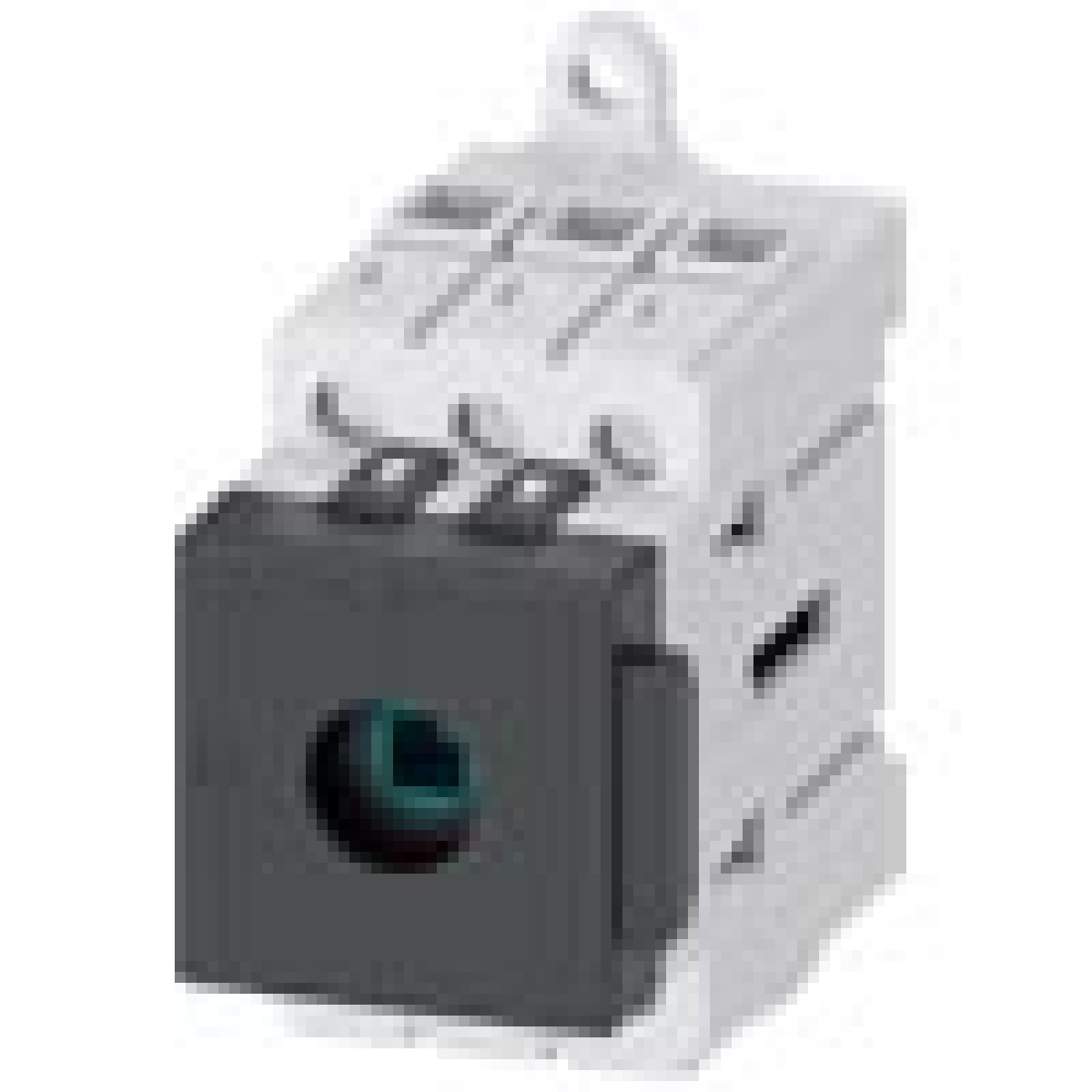

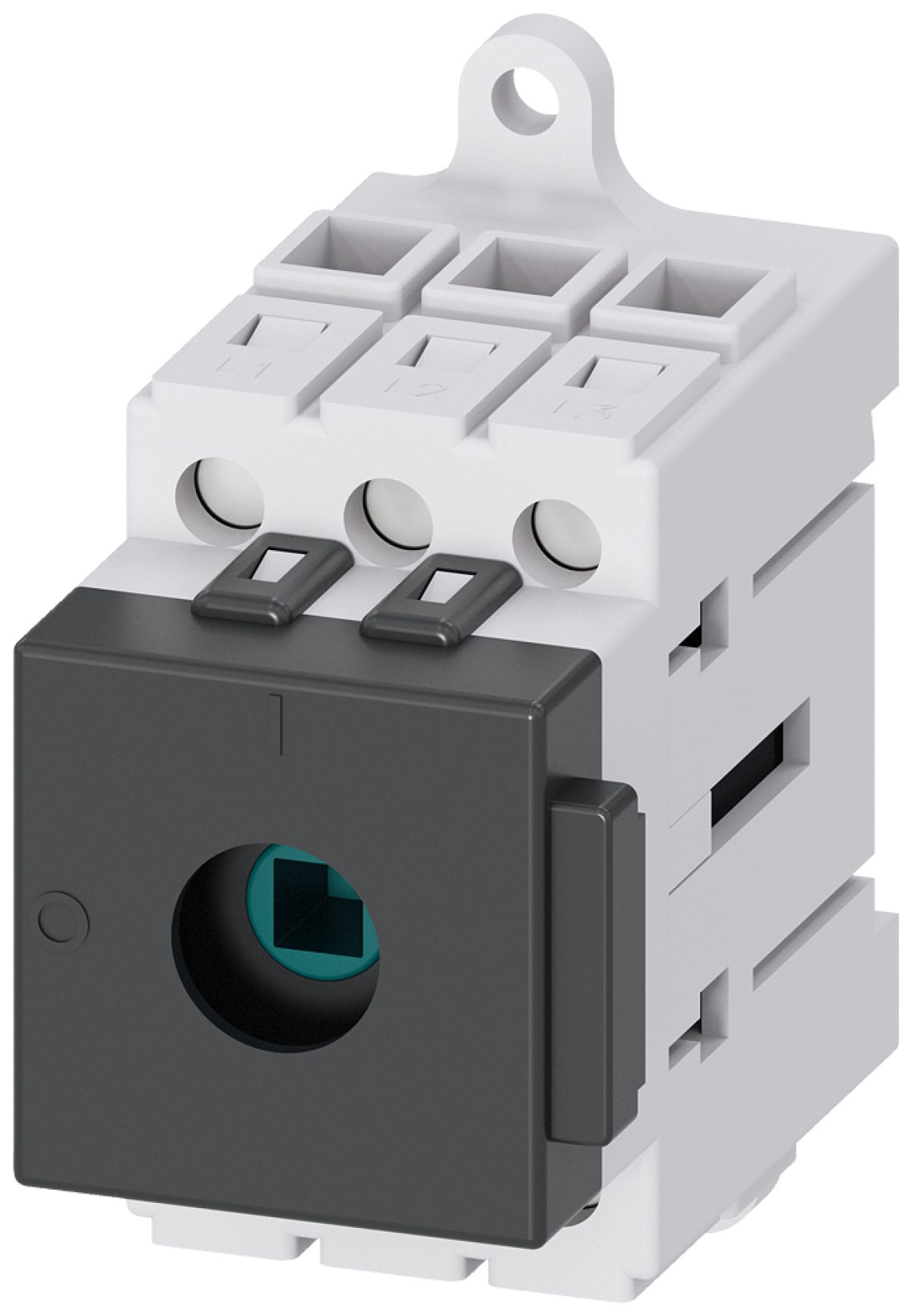

Switch disconnector 3LD3 Iu 63 A main control switch 3pole
Cutting and Protection Devices
Switch disconnector 3LD3 Iu 63 A main control switch 3pole
Manufacturer Ref:
3LD34100TK05
Nortécnica Ref:
EAN:
4001869551685
Description
Technical Information
Attributes
Rated operation power at AC-3, 400 V
19
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
63
Number of poles
3
Rated operating voltage
-
Conditioned rated short-circuit current Iq
-
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Frame clamp
Version as emergency stop installation
Yes
Type of control element
-
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
22
Rated short-time withstand current lcw
1
Colour control element
Other
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
-
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
-
Rated permanent current at AC-21, 400 V
63
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
43
Degree of protection NEMA
Other
Brands
Siemens AG
