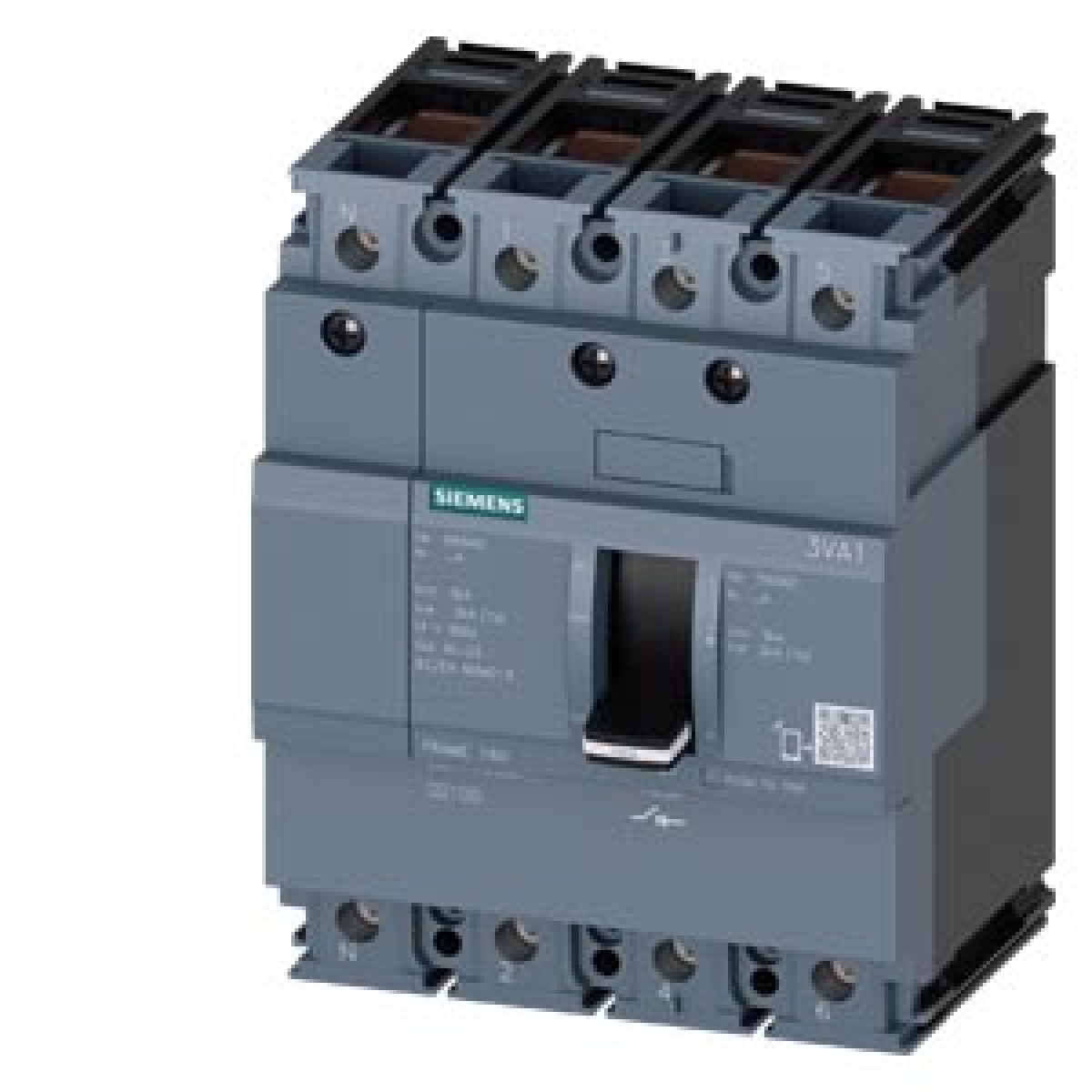

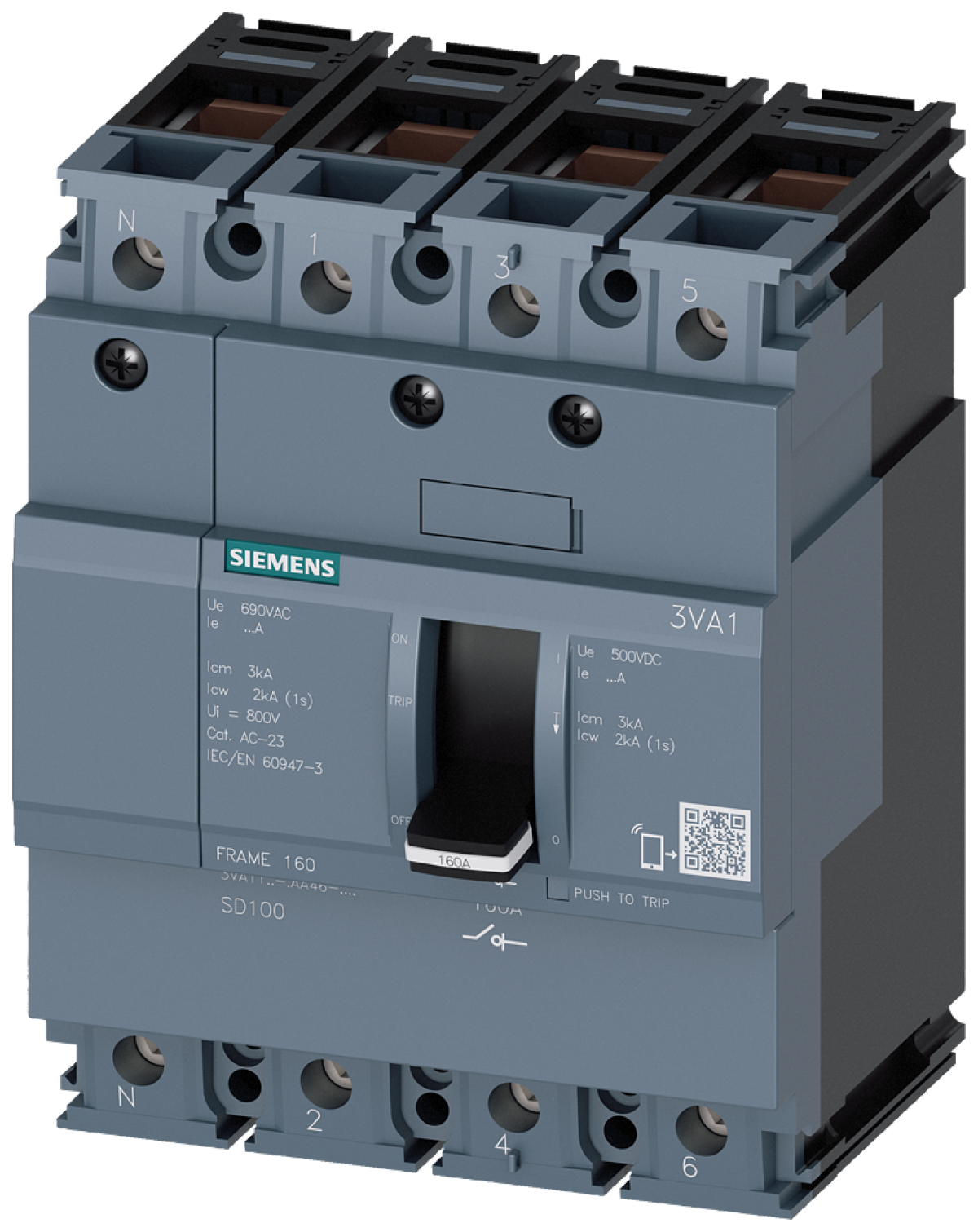

Switch disconnector 3VA1 IEC frame 160 4pole SD100 In63 A without overload
Cutting and Protection Devices
Switch disconnector 3VA1 IEC frame 160 4pole SD100 In63 A without overload
Manufacturer Ref:
3VA11631AA460AA0
Nortécnica Ref:
EAN:
4042948800638
Description
Technical Information
Attributes
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
63
Number of poles
4
Rated operating voltage
-
Conditioned rated short-circuit current Iq
-
Degree of protection IP, front side
IP40
Number of auxiliary contacts as change-over contact
0
Number of switches
-
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
-
Version as emergency stop installation
Yes
Type of control element
Rocker lever
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
-
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
-
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
690
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
-
Rated permanent current at AC-21, 400 V
63
Switching power at 400 V
-
Version as reversing switch
-
Rated permanent current at AC-23, 400 V
63
Degree of protection NEMA
Other
Brands
Siemens AG
