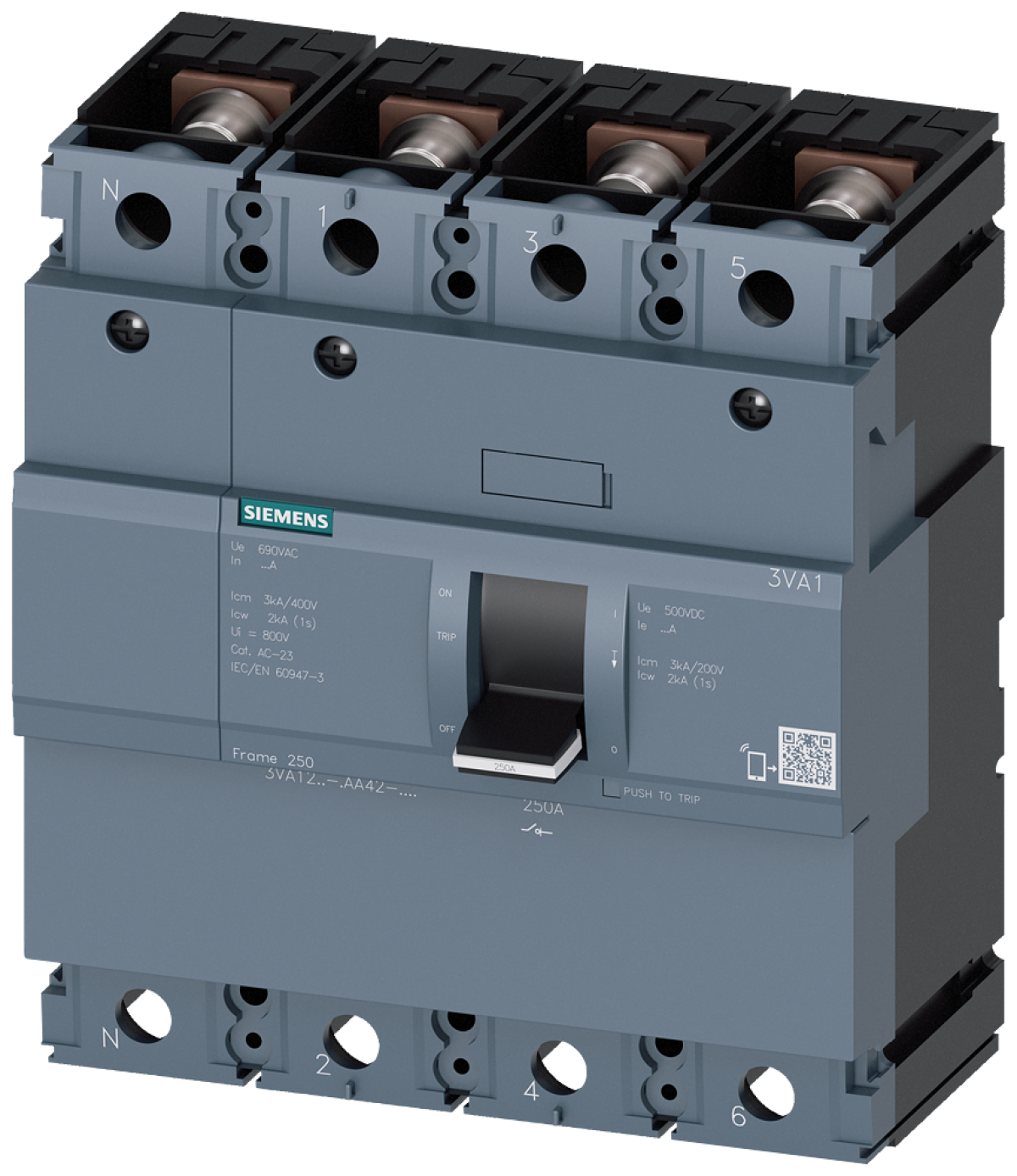

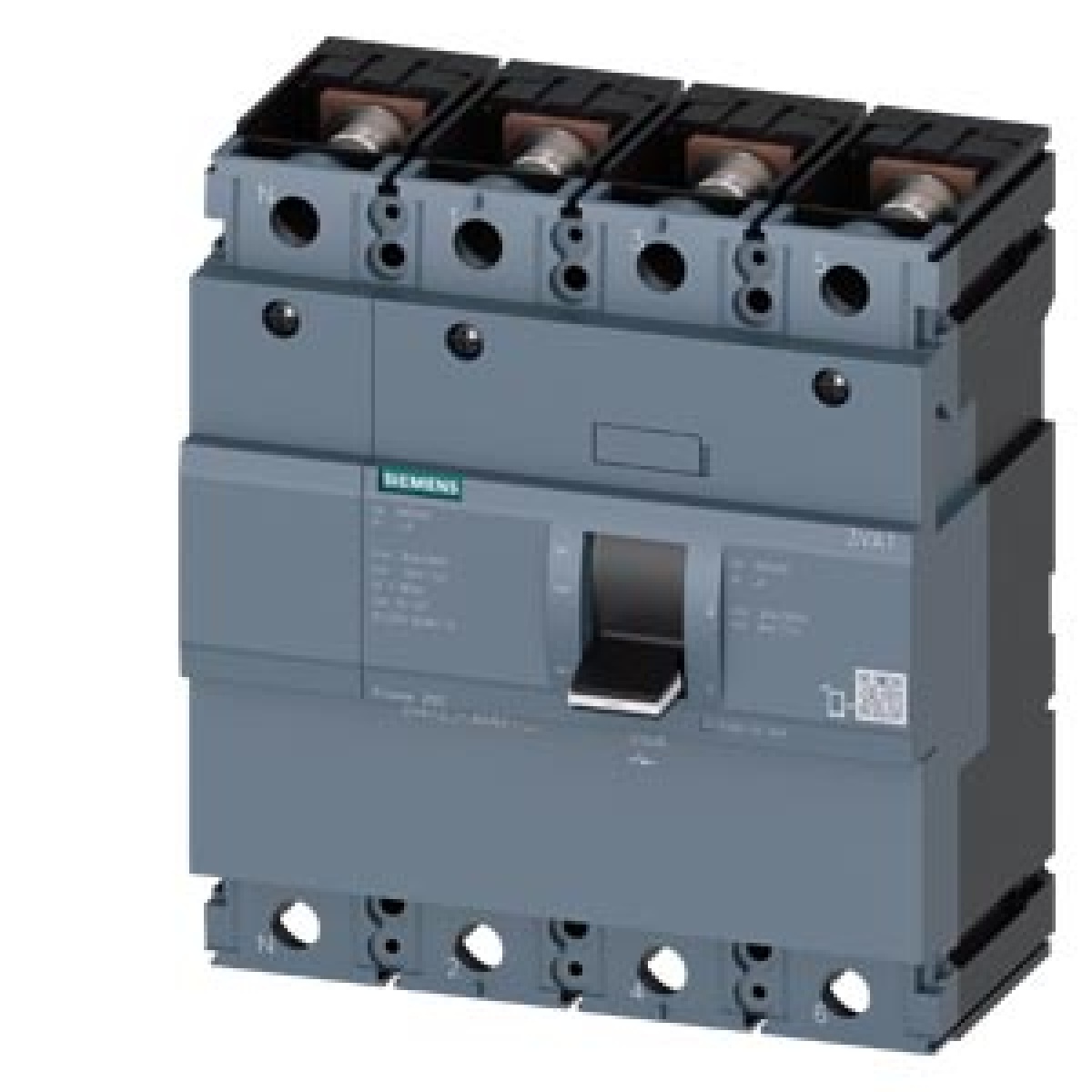

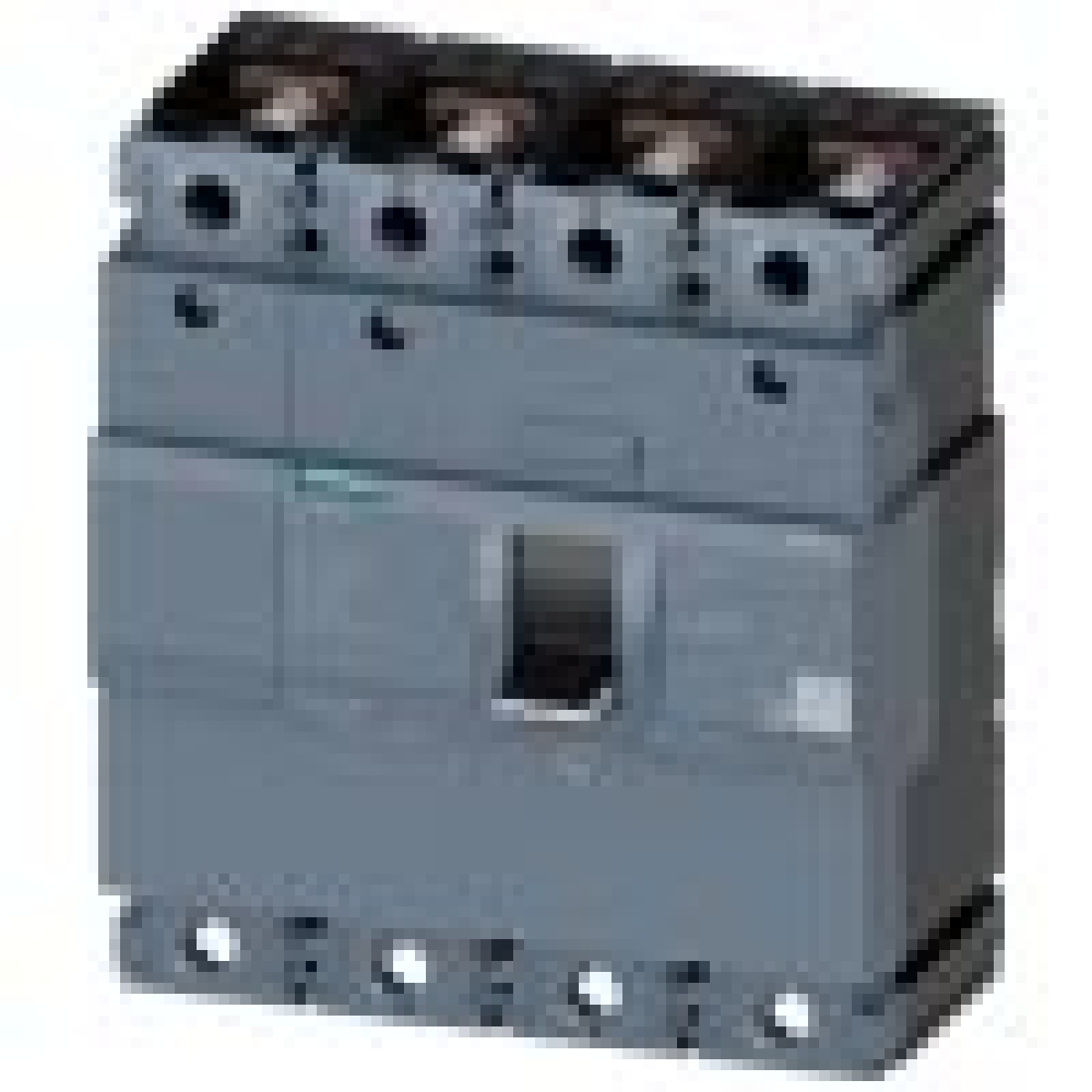

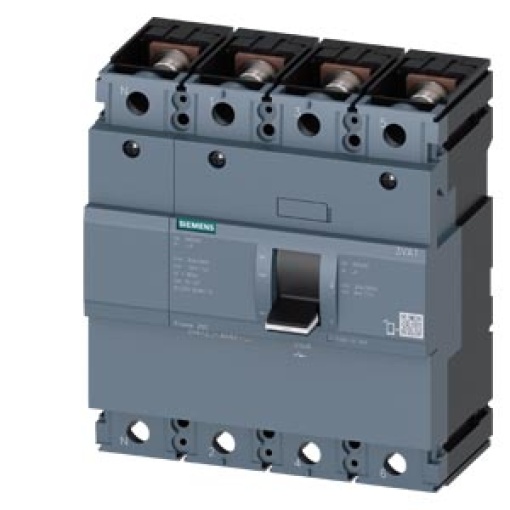

Switch disconnector 3VA1 IEC frame 250 4pole SD100 In250 A without overloa
Cutting and Protection Devices
Switch disconnector 3VA1 IEC frame 250 4pole SD100 In250 A without overloa
Manufacturer Ref:
3VA12251AA420AA0
Nortécnica Ref:
EAN:
4042948800393
Description
Technical Information
Attributes
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
250
Number of poles
4
Rated operating voltage
-
Conditioned rated short-circuit current Iq
-
Degree of protection IP, front side
IP40
Number of auxiliary contacts as change-over contact
0
Number of switches
-
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Rail connection
Version as emergency stop installation
Yes
Type of control element
Rocker lever
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
-
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
-
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
690
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
-
Rated permanent current at AC-21, 400 V
250
Switching power at 400 V
-
Version as reversing switch
-
Rated permanent current at AC-23, 400 V
250
Degree of protection NEMA
Other
Brands
Siemens AG
