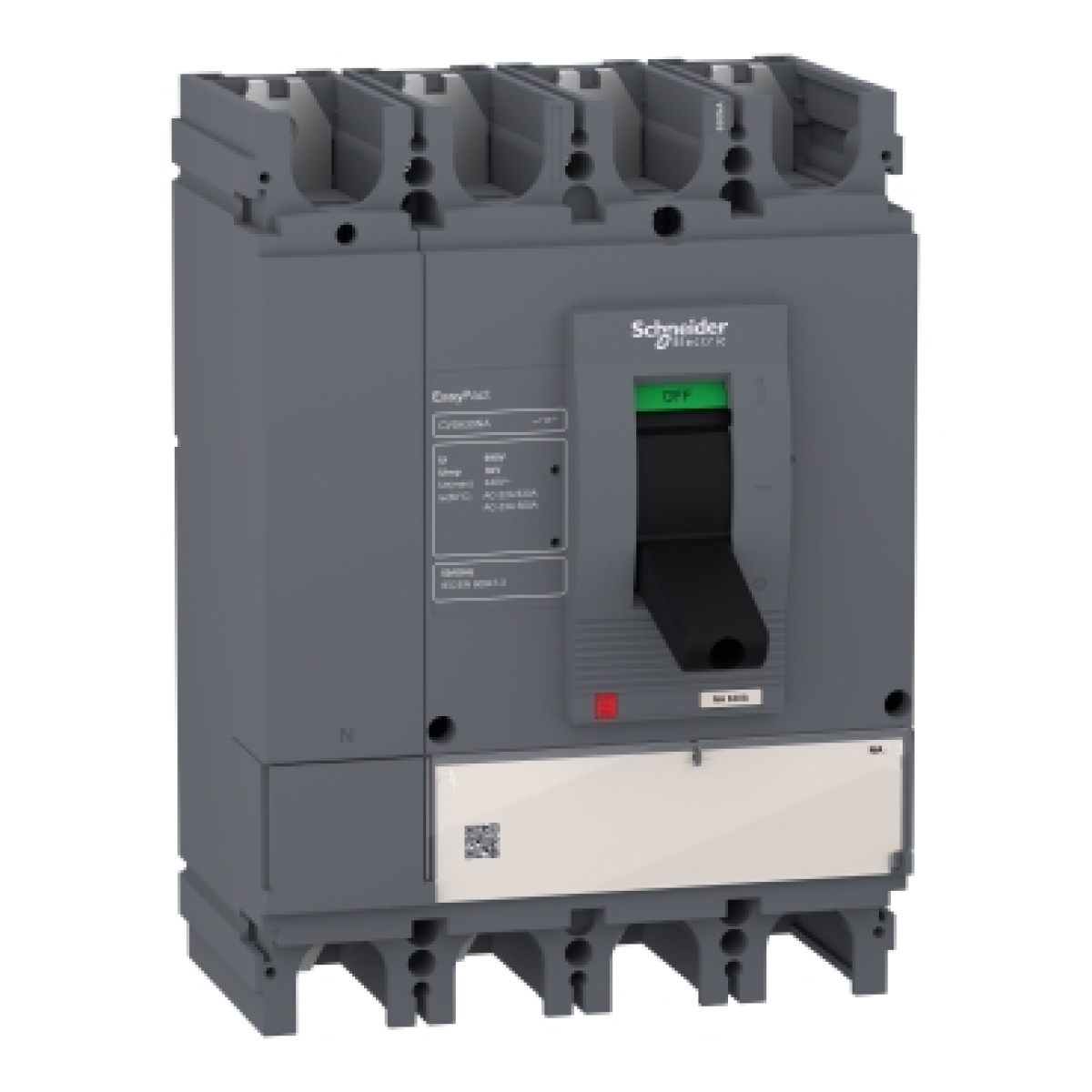

switch disconnector EasyPact CVS630NA, 4 poles, 630 A AC22A, 500 A AC23A
Cutting and Protection Devices
switch disconnector EasyPact CVS630NA, 4 poles, 630 A AC22A, 500 A AC23A
Manufacturer Ref:
LV563401
Nortécnica Ref:
EAN:
3606480257872
Description
Technical Information
Attributes
Width
140
Height
255
Depth
110
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
600
Number of poles
4
Rated operating voltage
220
440
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP40
Number of auxiliary contacts as change-over contact
5
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Wing knob
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
6
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
Yes
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
Yes
Max. rated operation voltage Ue AC
440
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
-
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
500
Degree of protection NEMA
-
With pre-assembled cabling
-
Brands
Schneider
