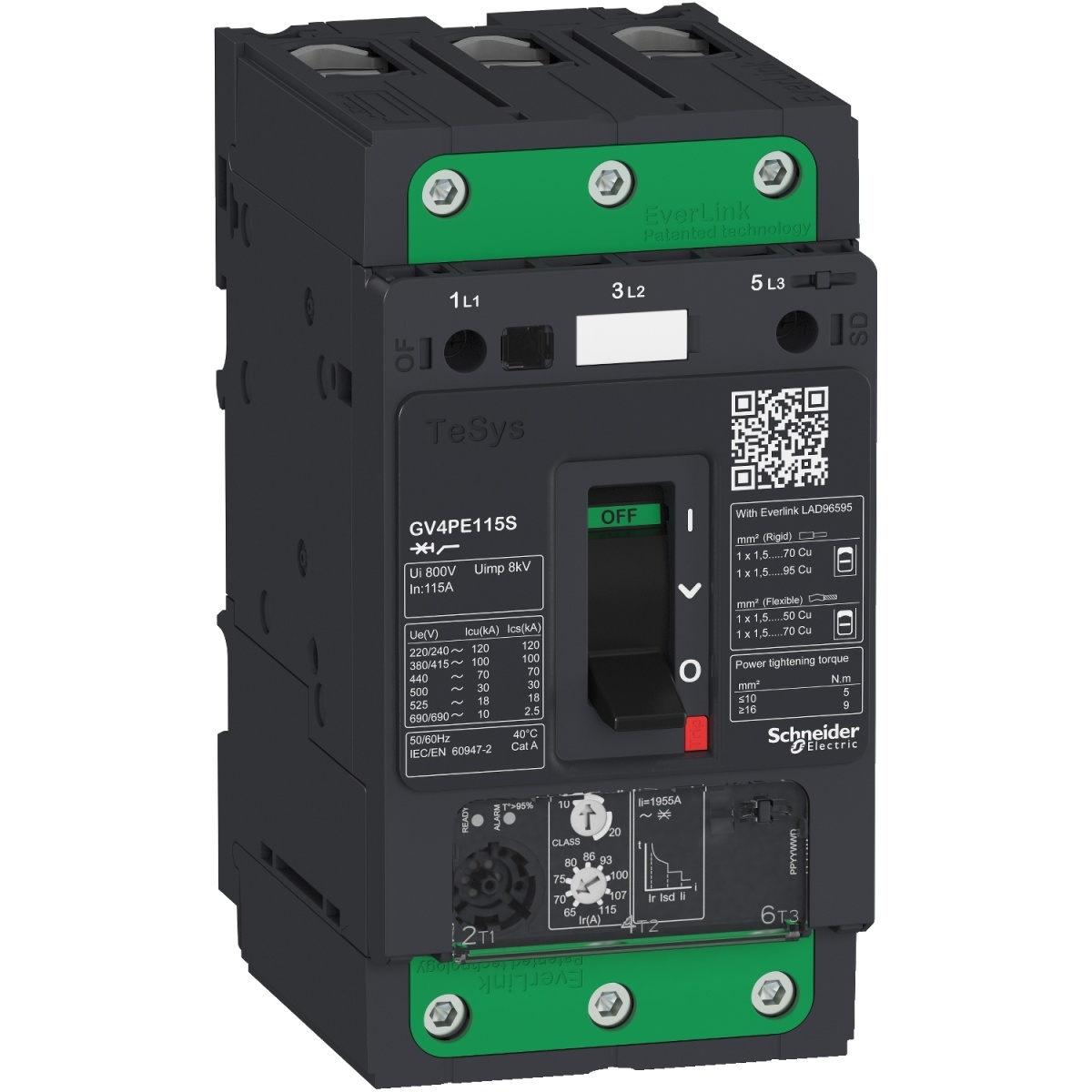

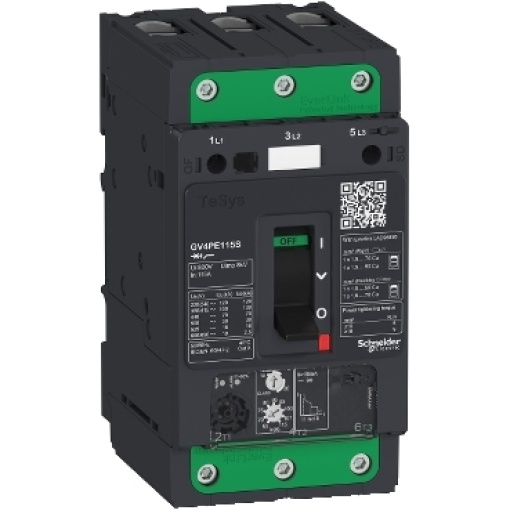

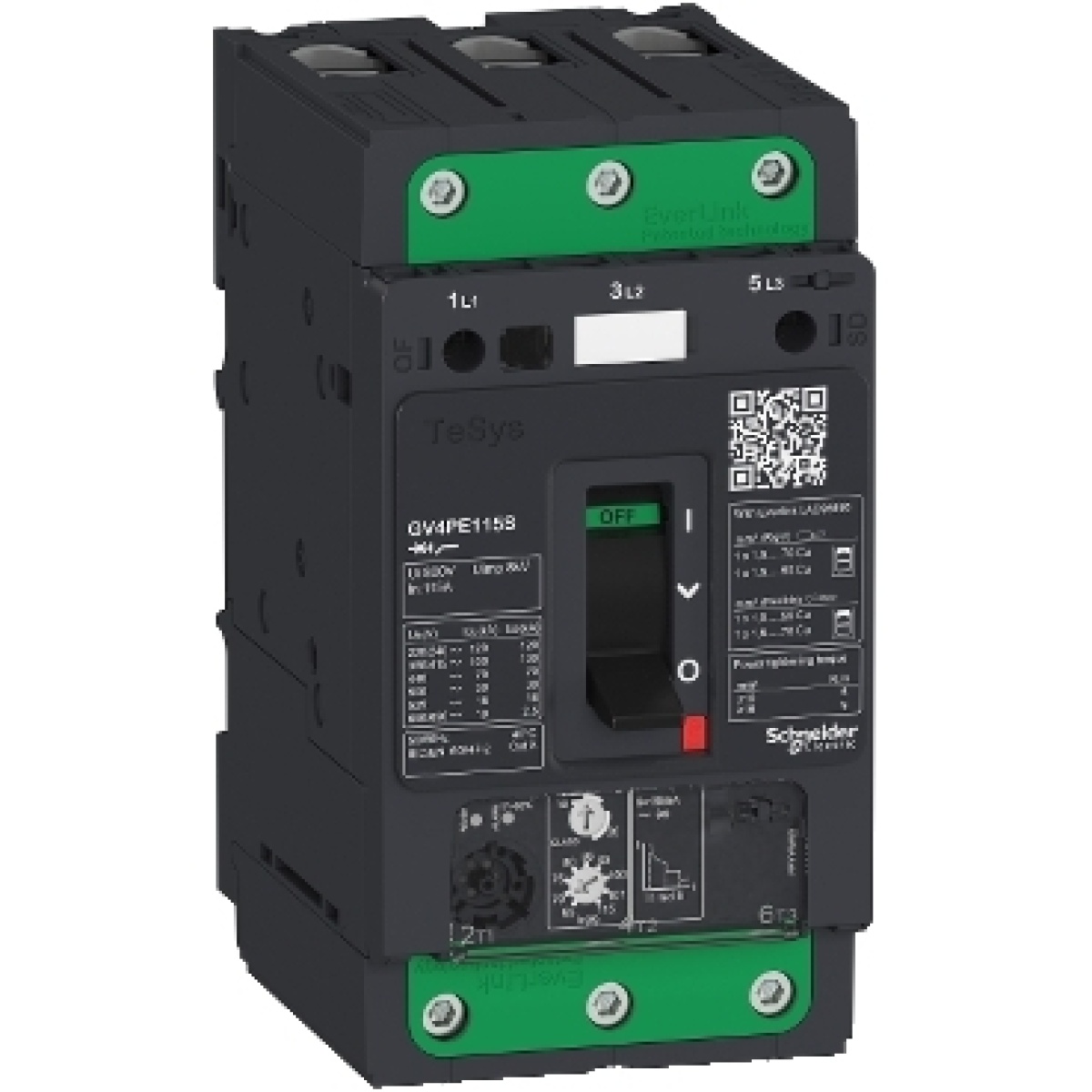

TeSys GV4 - disjuntor magneto-térmico - 115A 3P - com Everlink
Cutting and Protection Devices
TeSys GV4 - disjuntor magneto-térmico - 115A 3P - com Everlink
Manufacturer Ref:
GV4PE115B
Nortécnica Ref:
52GV4PE115B
EAN:
3606481310101
Description
Technical Information
Attributes
Width
81
Height
155
Depth
116
Rated operation power at AC-3, 400 V
55
With integrated auxiliary switch
No
Rated permanent current Iu
115
With integrated under voltage release
No
Number of poles
3
Rated operating voltage
690
690
Overload release current setting
65
115
Power loss
13.8
Degree of protection IP
IP40
With thermal overload protection
Yes
Type of electrical connection of main circuit
Screw connection
Type of control element
Rocker lever
Switch off technique
Electronic
Rated operation power at AC-3, 230 V
30
Rated short-circuit breaking capacity Icu at 400 V, AC
25
Adjustment range undelayed short-circuit release
1955
1955
Phase failure sensitive
Yes
Device construction
Complete device in housing
Brands
Schneider
Technical Sheet
