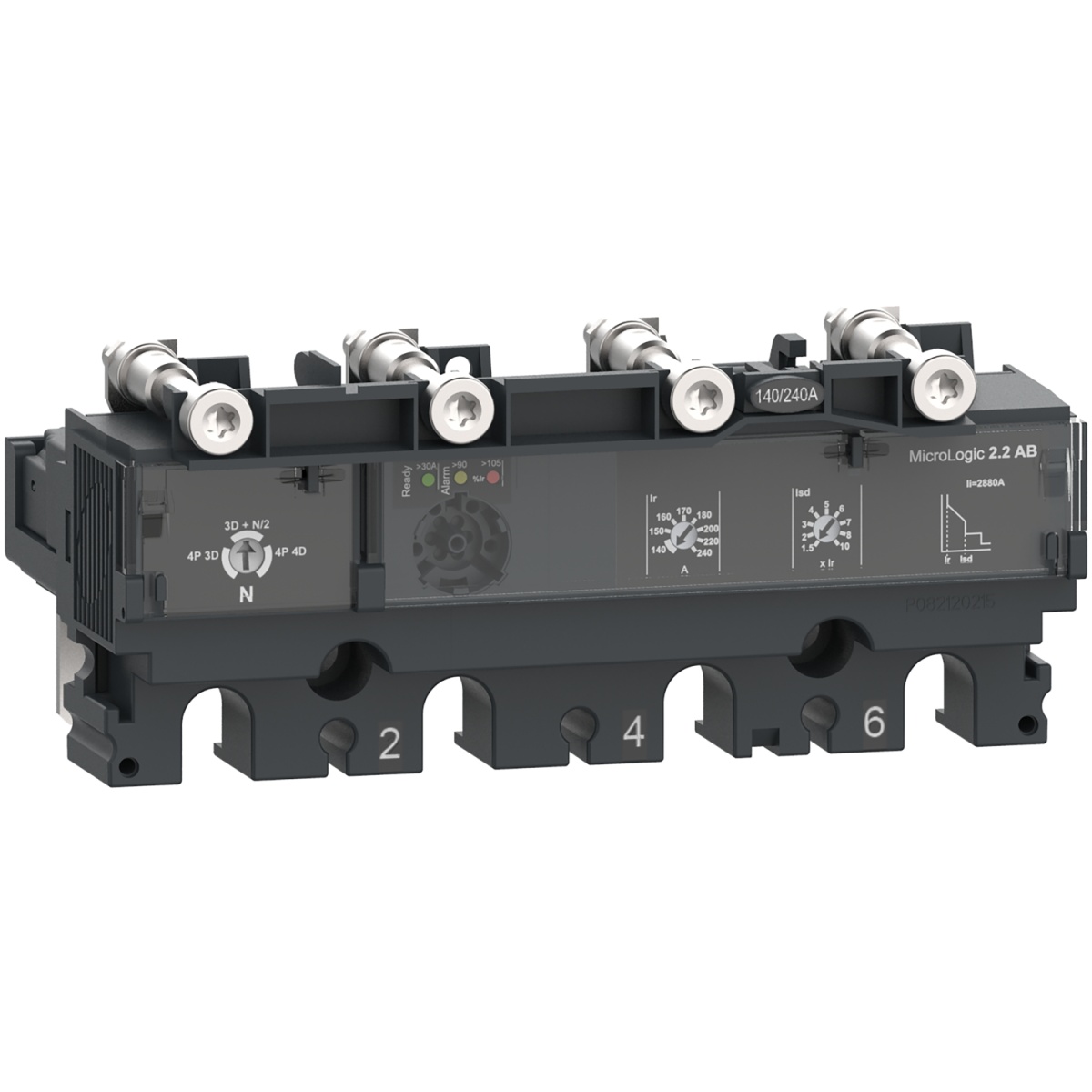

Trip unit MicroLogic 2.2 AB for ComPacT NSX 250 circuit breakers, electronic, rating 240A, 4 poles 4d
Cutting and Protection Devices
Trip unit MicroLogic 2.2 AB for ComPacT NSX 250 circuit breakers, electronic, rating 240A, 4 poles 4d
Manufacturer Ref:
C2542B240
Nortécnica Ref:
EAN:
3606482000834
Description
Technical Information
Attributes
Width
139.7
Height
59.7
Depth
89.4
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
240
Number of poles
4
Short-circuit release function
Delayed
Overload release current setting
140
240
Voltage type supply voltage
-
External power supply required
No
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
240
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
-
-
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
2880
2880
Current setting delayed short-circuit release
210
2400
Brands
Schneider
