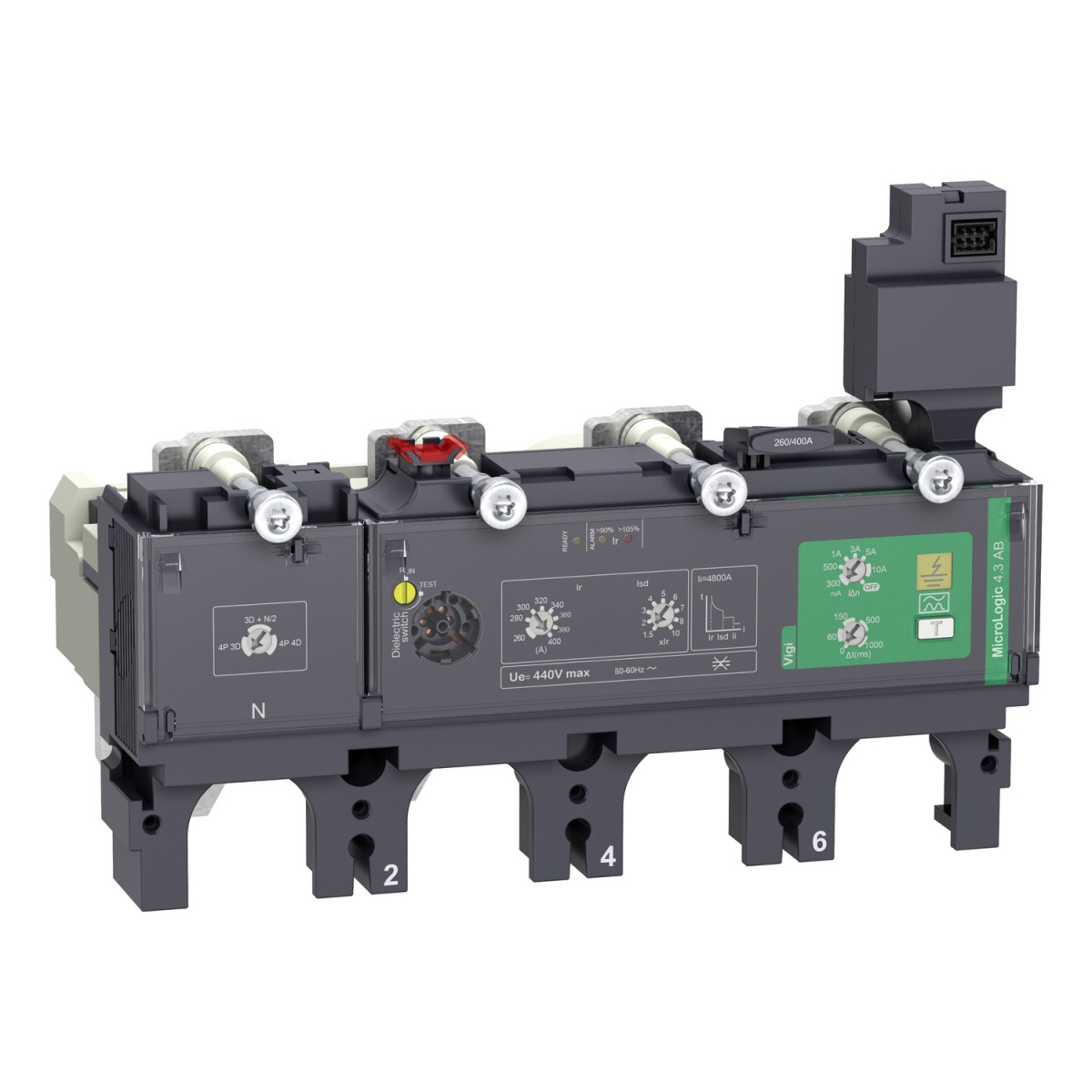

Trip unit MicroLogic 4.3 AB for ComPacT NSX 400630 circuit breakers, electronic, rating 400A, 4 poles 4d
Cutting and Protection Devices
Trip unit MicroLogic 4.3 AB for ComPacT NSX 400630 circuit breakers, electronic, rating 400A, 4 poles 4d
Manufacturer Ref:
C4044B400
Nortécnica Ref:
51C4044B400
EAN:
3606481995179
Description
Technical Information
Attributes
Width
184.7
Height
136.2
Depth
112.6
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
400
Number of poles
4
Short-circuit release function
Delayed
Overload release current setting
260
400
Voltage type supply voltage
-
External power supply required
No
Number of auxiliary contacts as change-over contact
0
Voltage type operating voltage
AC
With ground fault protection function
No
Rated switch current
400
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
-
-
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Operating voltage DC
-
-
Type of motor protection
Electronic release
Current setting undelayed short-circuit release
4800
4800
Current setting delayed short-circuit release
390
4000
Brands
Schneider
Technical Sheet
