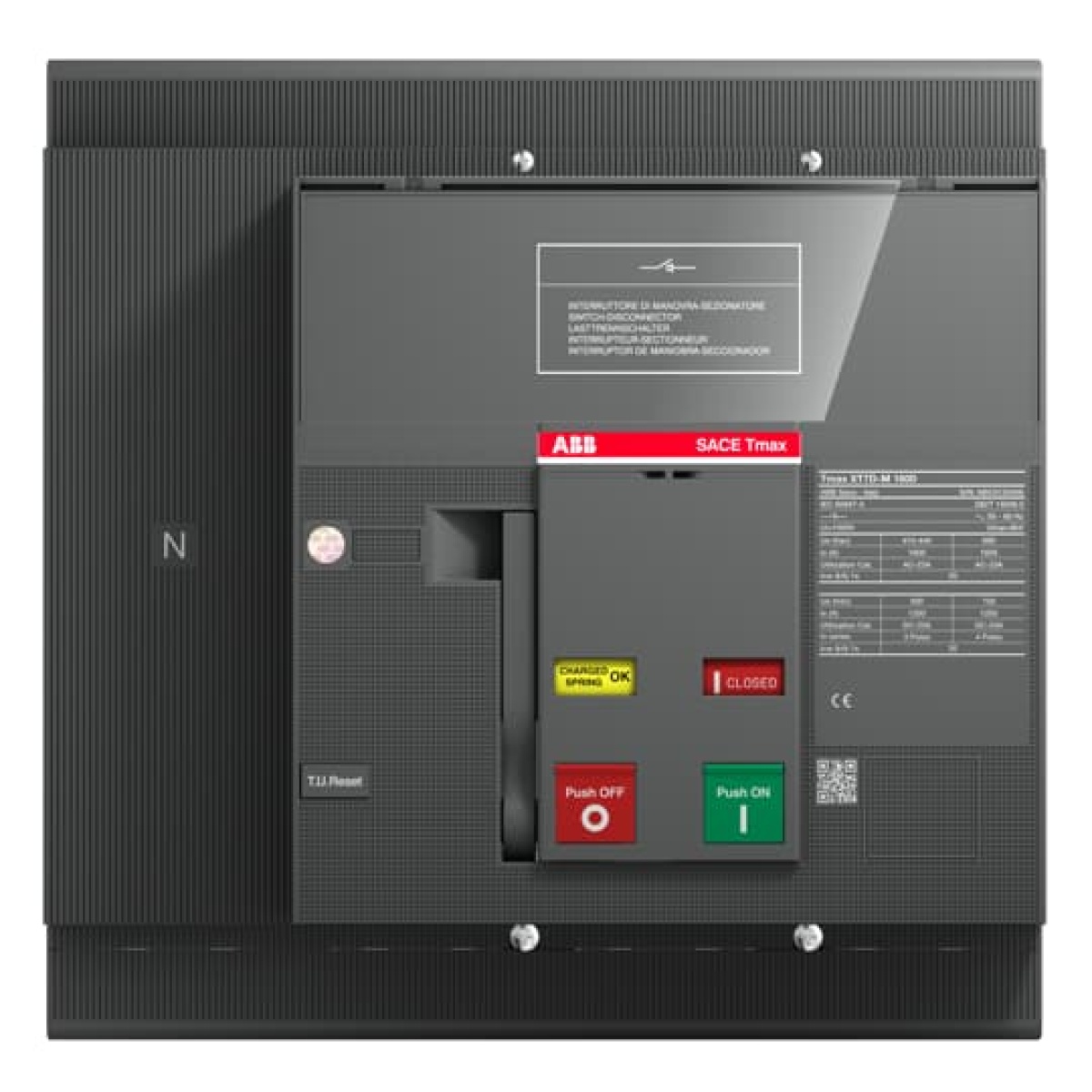

XT7D M 1000 4p F F
Cutting and Protection Devices
XT7D M 1000 4p F F
Manufacturer Ref:
1SDA101915R1
Nortécnica Ref:
EAN:
8056221019590
Description
Technical Information
Attributes
Width
280
Height
268
Depth
178
Rated operation power at AC-3, 400 V
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
1000
Number of poles
4
Rated operating voltage
0
690
Conditioned rated short-circuit current Iq
-
Width in number of modular spacings
-
Degree of protection IP, front side
IP20
Number of auxiliary contacts as change-over contact
0
Number of switches
0
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
No
Type of control element
-
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
No
Rated operation power at AC-23, 400 V
-
Rated short-time withstand current lcw
20
Colour control element
White
EF007243
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
1000
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
-
Degree of protection NEMA
4
With pre-assembled cabling
-
Brands
ABB
Technical Sheet
