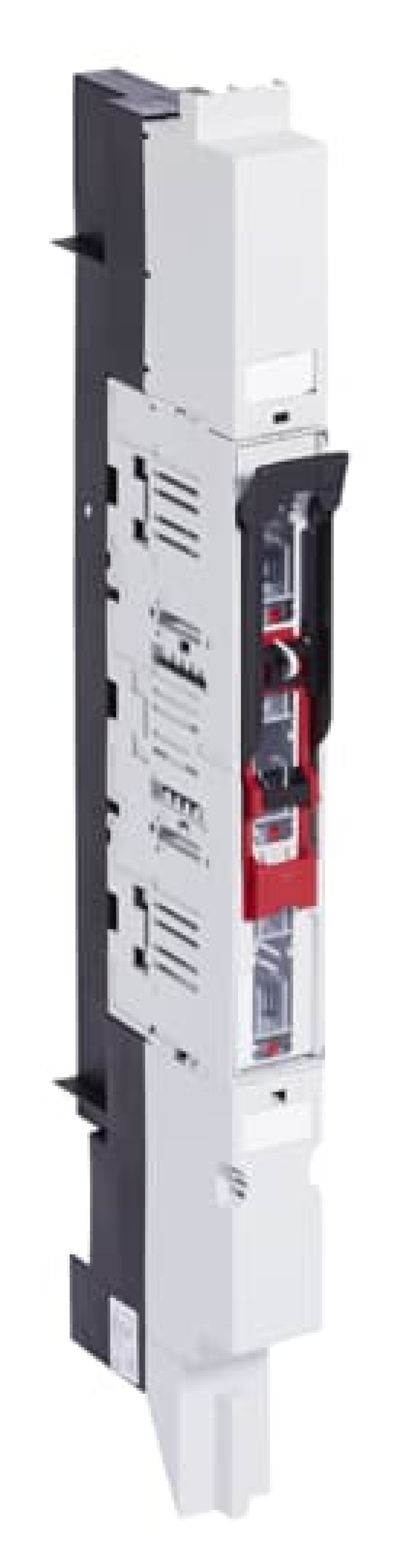

ZE50SB Protective devices 60 mm x 185 mm x 775 mm
Cutting and Protection Devices
ZE50SB Protective devices 60 mm x 185 mm x 775 mm
Manufacturer Ref:
2CPX061159R9999
Nortécnica Ref:
EAN:
4011617611592
Description
Technical Information
Attributes
Model
Protection switch separator
Rated permanent current Iu
160
Number of poles
3
Distance between rail centre, 50 mm
No
Distance between rail centre, 40 mm
No
Distance between rail centre, 60 mm
No
Conditioned rated short-circuit current Iq
50
Construction size fuse insert
NH00
Distance between rail centre, 100 mm
No
Distance between rail centre, 185 mm
Yes
Type of electrical connection of main circuit
Screw connection
Double interrupting
No
Max. rated operation voltage Ue AC
400
Release indication
None
Brands
ABB
Technical Sheet
