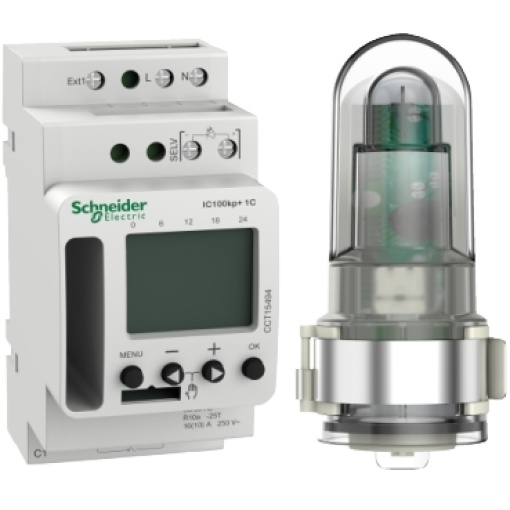

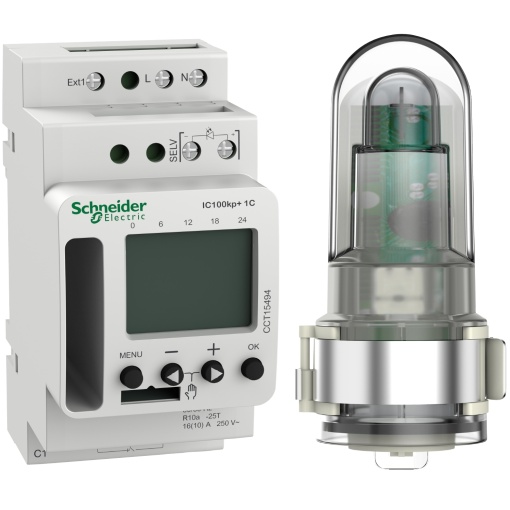

Acti 9 IC100kp 1C 1 - 99000 lux SMART programmable twilight switch
Management and Measuring Devices
Acti 9 IC100kp 1C 1 - 99000 lux SMART programmable twilight switch
Manufacturer Ref:
CCT15494
Nortécnica Ref:
53CCT15494
EAN:
3606489524562
Description
Technical Information
Attributes
Mounting method
DIN rail
Profundidade incorporada
67
Rated voltage
230
Rated frequency
50
60
Width in number of modular spacings
2.5
Rated voltage light sensor
-
Max. switching current cos phi 0.6
10
Max. incandescent lamp load
2600
Max. conductor length light sensor
50
Max. load fluorescent lamp
2300
Max. load fluorescent lamp Duo circuit
2300
Max. load fluorescent lamp parallel compensated
730
With programmable overnight shutoff
Yes
Degree of protection IP light sensor
IP55
Push button input
Yes
Degree of protection IP
IP20
Rated switch current
16
Adjustment range brightness value
1
99000
Protection class light sensor
II
Mounting method light sensor
Wall surface mounted
Potência máxima do LED
-
Brands
SCHNEIDER
