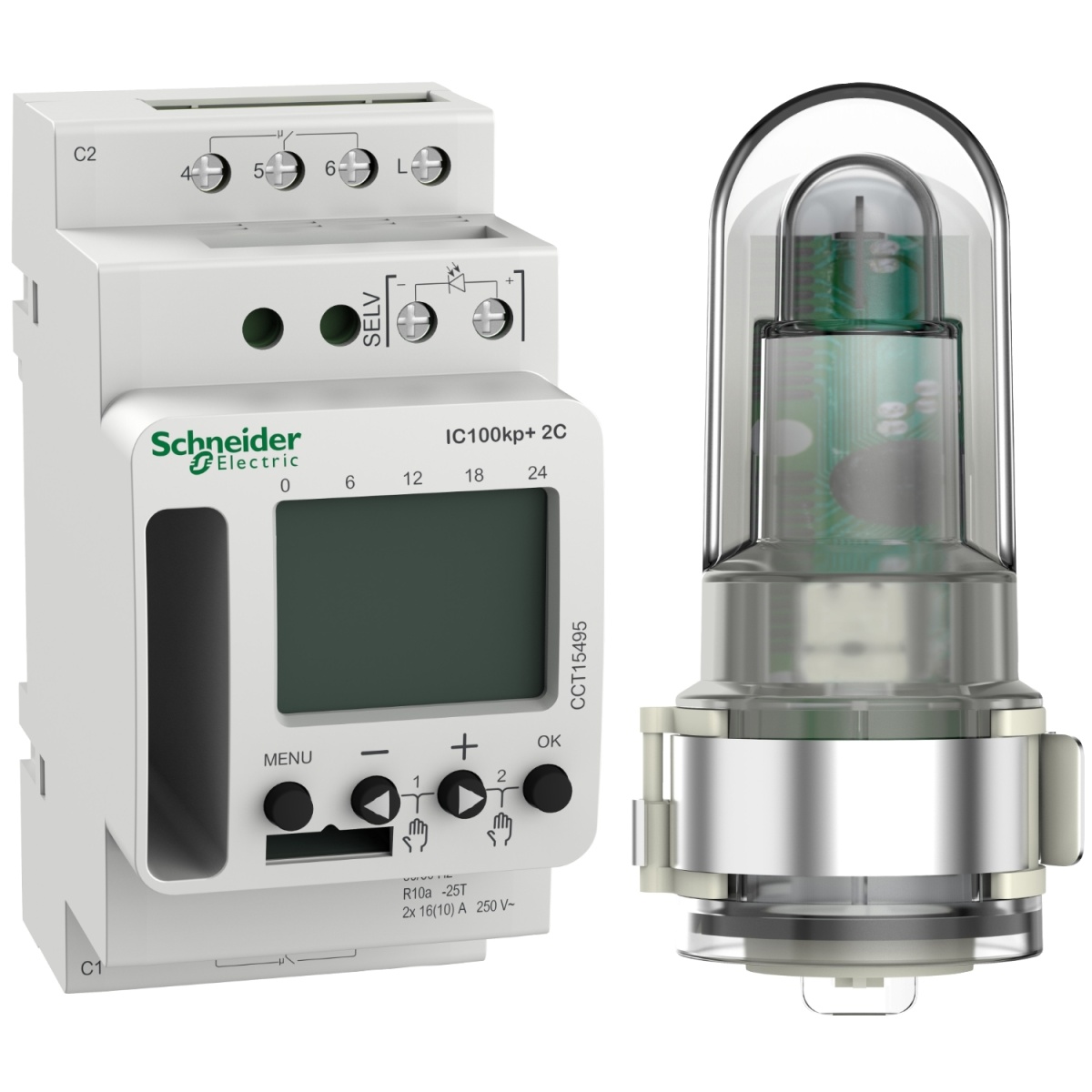

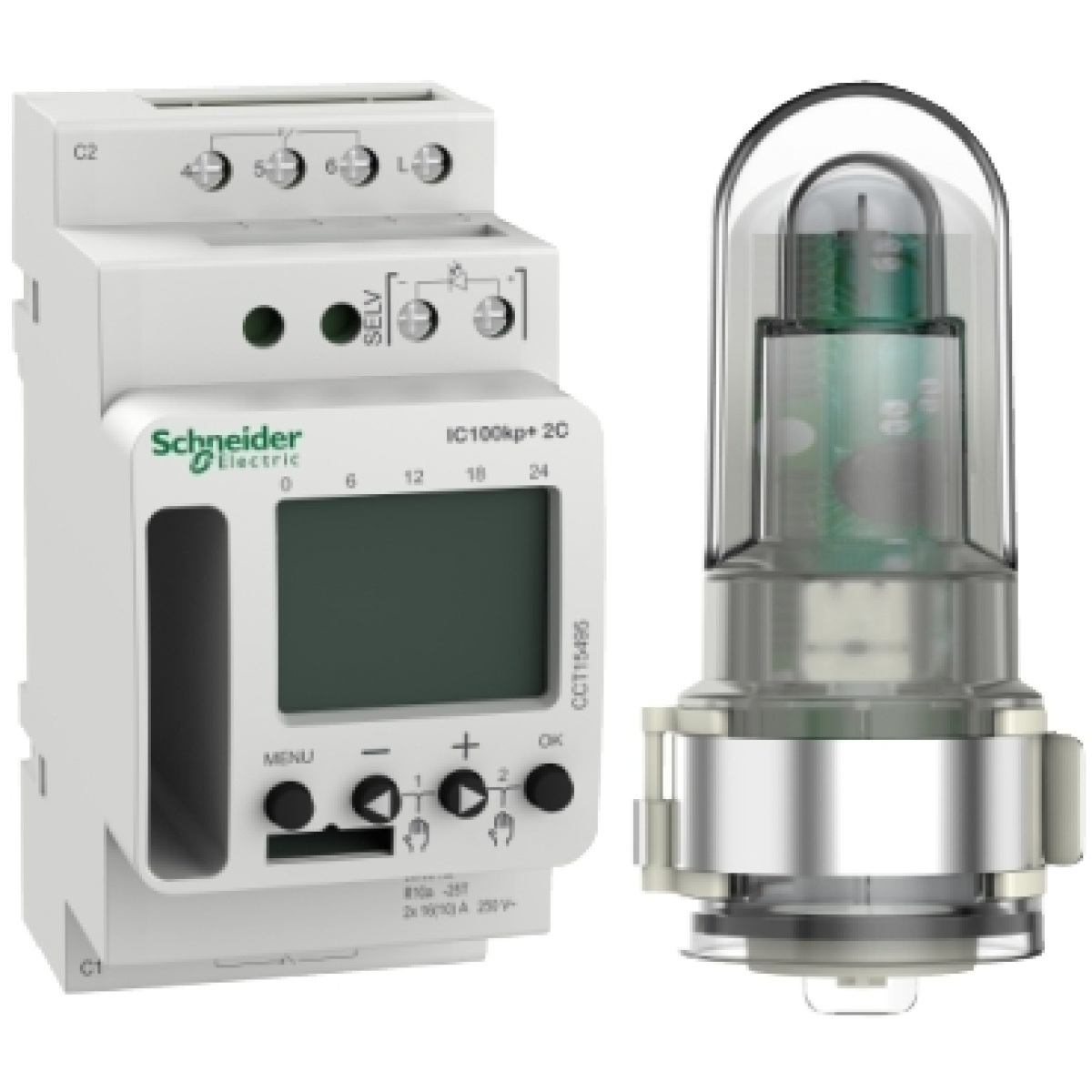

Acti 9 IC100kp 2C 1 - 99000 lux SMART programmable twilight switch
Management and Measuring Devices
Acti 9 IC100kp 2C 1 - 99000 lux SMART programmable twilight switch
Manufacturer Ref:
CCT15495
Nortécnica Ref:
EAN:
3606489524579
Description
Technical Information
Attributes
Mounting method
DIN rail
Built-in depth
67
EF000228
230
Rated frequency
50
60
Width in number of modular spacings
2.5
Rated voltage light sensor
-
Max. switching current cos phi 0.6
10
Max. incandescent lamp load
2600
Max. conductor length light sensor
50
Max. load fluorescent lamp
2300
Max. load fluorescent lamp Duo circuit
2300
Max. load fluorescent lamp parallel compensated
730
With programmable overnight shutoff
Yes
Degree of protection IP light sensor
IP55
Push button input
Yes
Degree of protection IP
IP20
Rated switch current
16
Adjustment range brightness value
1
99000
Protection class light sensor
II
Mounting method light sensor
Wall surface mounted
Max. switching power LED
-
Brands
Schneider
Technical Sheet
