Management and Measuring Devices

Acti 9 IHP 1C 24h7d SMARTw programmable time switch

Manufacturer Ref: CCT15551
Nortécnica Ref:
EAN: 3606489524494
Description

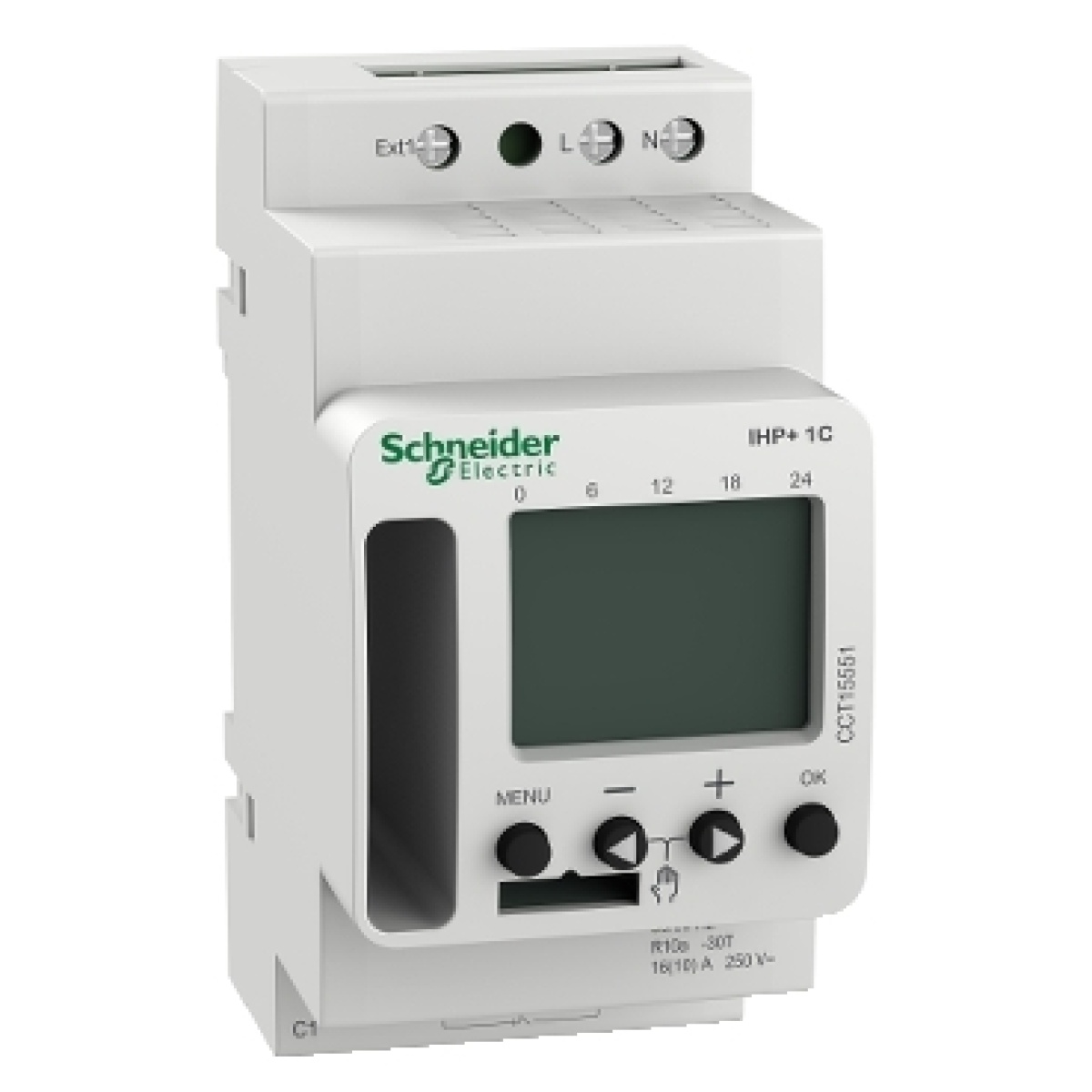

Acti 9 IHP 1C 24h7d SMARTw programmable time switch

Technical Information
Attributes
Mounting method
DIN rail
Width
45
Height
92.6
Depth
67
Number of contacts
-
Number of memory locations
84
Astro program
No
Number of channels
1
Output signal
Other
Radio-controlled
No
Weekly program
Yes
Annual program
No
Contact type
-
GPS global positioning system
No
Width in number of modular spacings
2.5
60 min program
Yes
24 h program
Yes
Holiday program
Yes
Random program
Yes
Impulse program
Yes
Cycle program
Yes
Mains synchronous
Yes
Quartz controlled
Yes
Automatic switching summerwinter time
Yes
Suitable for manual operation
Yes
Switching preselection
Yes
Voltage type supply voltage
AC
Potential free switch contact
Yes
External programming
Yes
Radio-controlled DCF77
No
Supply voltage
230
230
Hour meter
Yes
Frequency supply voltage
50
60
Autonomy in years
10
Autonomy in hours
87600.0
EF004855
0.017
EF004856
-
Nominal switching current at 250 V AC
16
Text guidance in display
Yes
Degree of protection IP
IP20
Accuracy per day
0.25
External push button input
Yes
With memory card
No
Max. switching power LED
-
Brands
Schneider
