Management and Measuring Devices

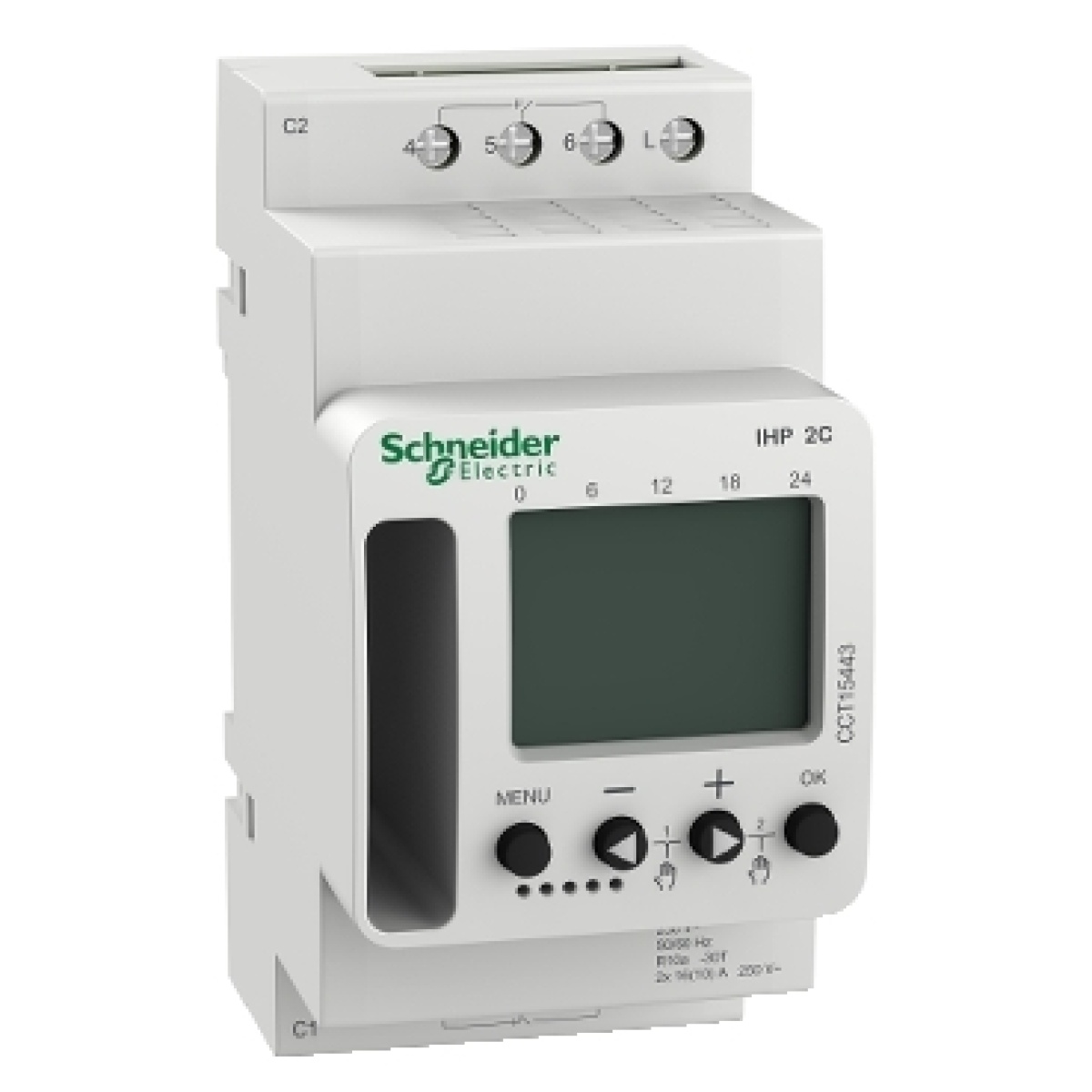

Acti 9 IHP 2C w 24h7d programmable time switch

Manufacturer Ref: CCT15443
Nortécnica Ref: 51CCT15443
EAN: 3606489524470
Description

Acti 9 IHP 2C w 24h7d programmable time switch

Technical Information
Attributes
Mounting method
DIN rail
Width
45
Height
92.6
Depth
67
Number of contacts
-
Number of memory locations
56
Astro program
No
Number of channels
2
Output signal
Other
Radio-controlled
No
Weekly program
Yes
Annual program
No
Contact type
-
GPS global positioning system
No
Width in number of modular spacings
2.5
60 min program
Yes
24 h program
Yes
Holiday program
Yes
Random program
No
Impulse program
No
Cycle program
No
Mains synchronous
Yes
Quartz controlled
Yes
Automatic switching summerwinter time
Yes
Suitable for manual operation
Yes
Switching preselection
Yes
Voltage type supply voltage
AC
Potential free switch contact
Yes
External programming
No
Radio-controlled DCF77
No
Supply voltage
230
230
Hour meter
No
Frequency supply voltage
50
60
Autonomy in years
10
Autonomy in hours
87600.0
EF004855
1
EF004856
1
Nominal switching current at 250 V AC
16
Text guidance in display
Yes
Degree of protection IP
IP20
Accuracy per day
0.25
External push button input
Yes
With memory card
No
Max. switching power LED
-
Brands
Schneider
