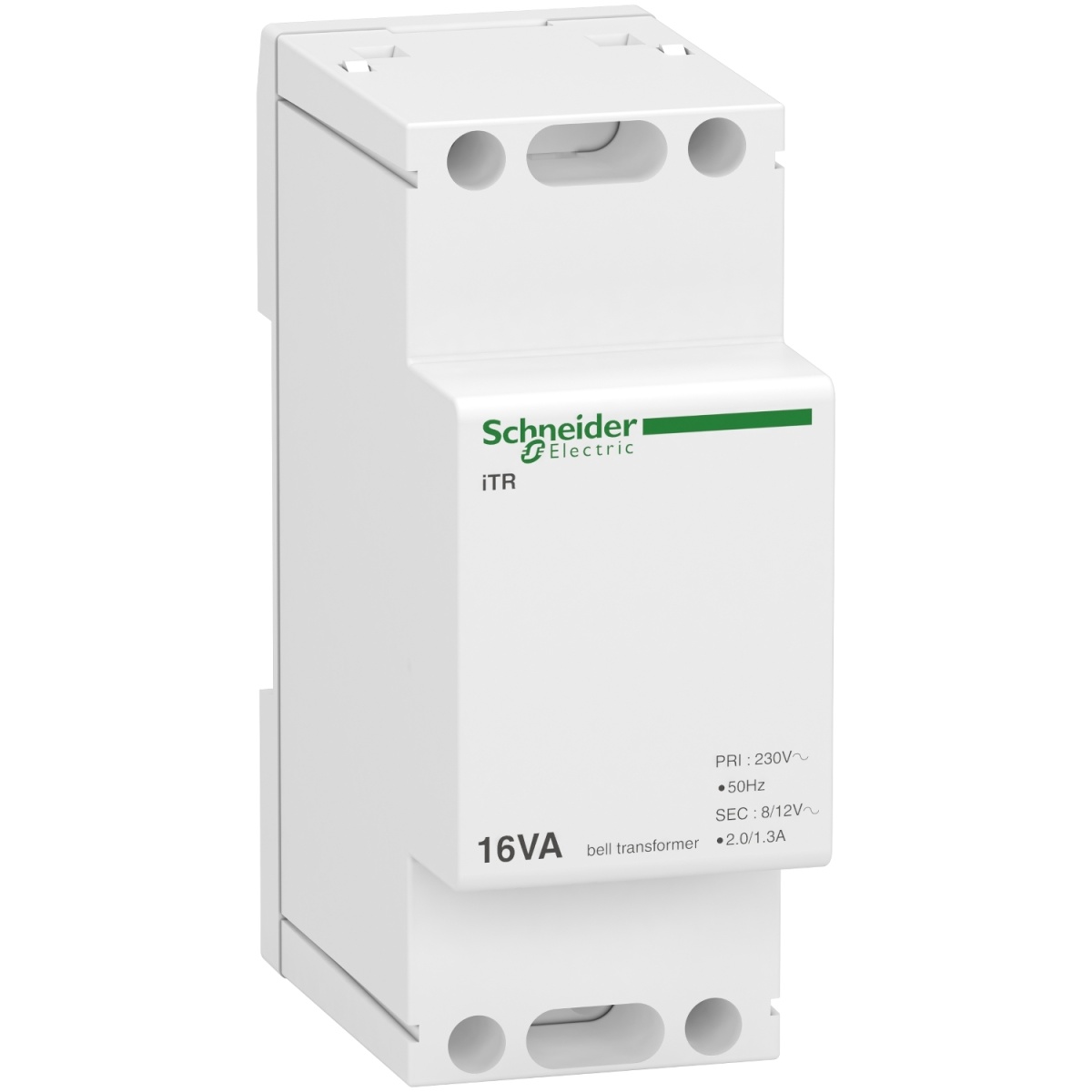

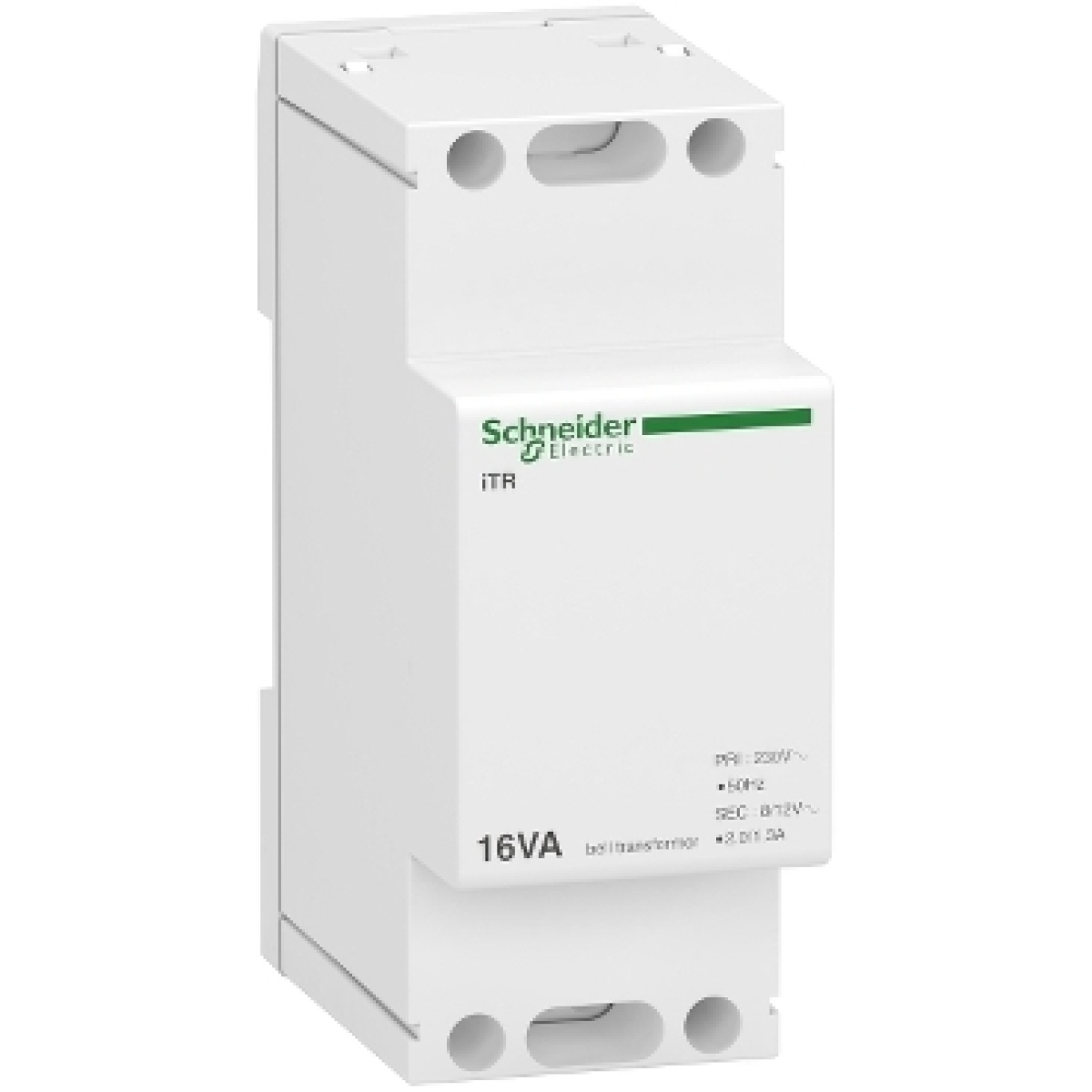

Acti 9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 16 VA
Management and Measuring Devices
Acti 9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 16 VA
Manufacturer Ref:
A9A15212
Nortécnica Ref:
51A9A15212
EAN:
3606480097843
Description
Technical Information
Attributes
Width
36
Height
89
Type of transformer
Standard bell ringing transformer
With onoff switch
No
Suitable for distribution board
Yes
Max. output current
-
Length
60
Max. output power
16
Width in number of modular spacings
2
Surface mounting
No
Short-circuit protected
Yes
Primary voltage
230
Secondary voltage 1
8
Secondary voltage 2
12
Secondary voltage 3
-
Secondary amperage 1
2
Secondary amperage 2
1.3
Secondary amperage 3
-
Temperature protection
Yes
Max. power loss
2
Flush-mounted installation
No
Brands
Schneider
Technical Sheet
