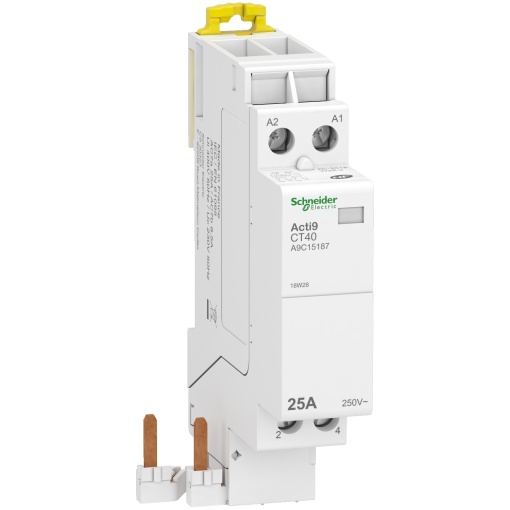

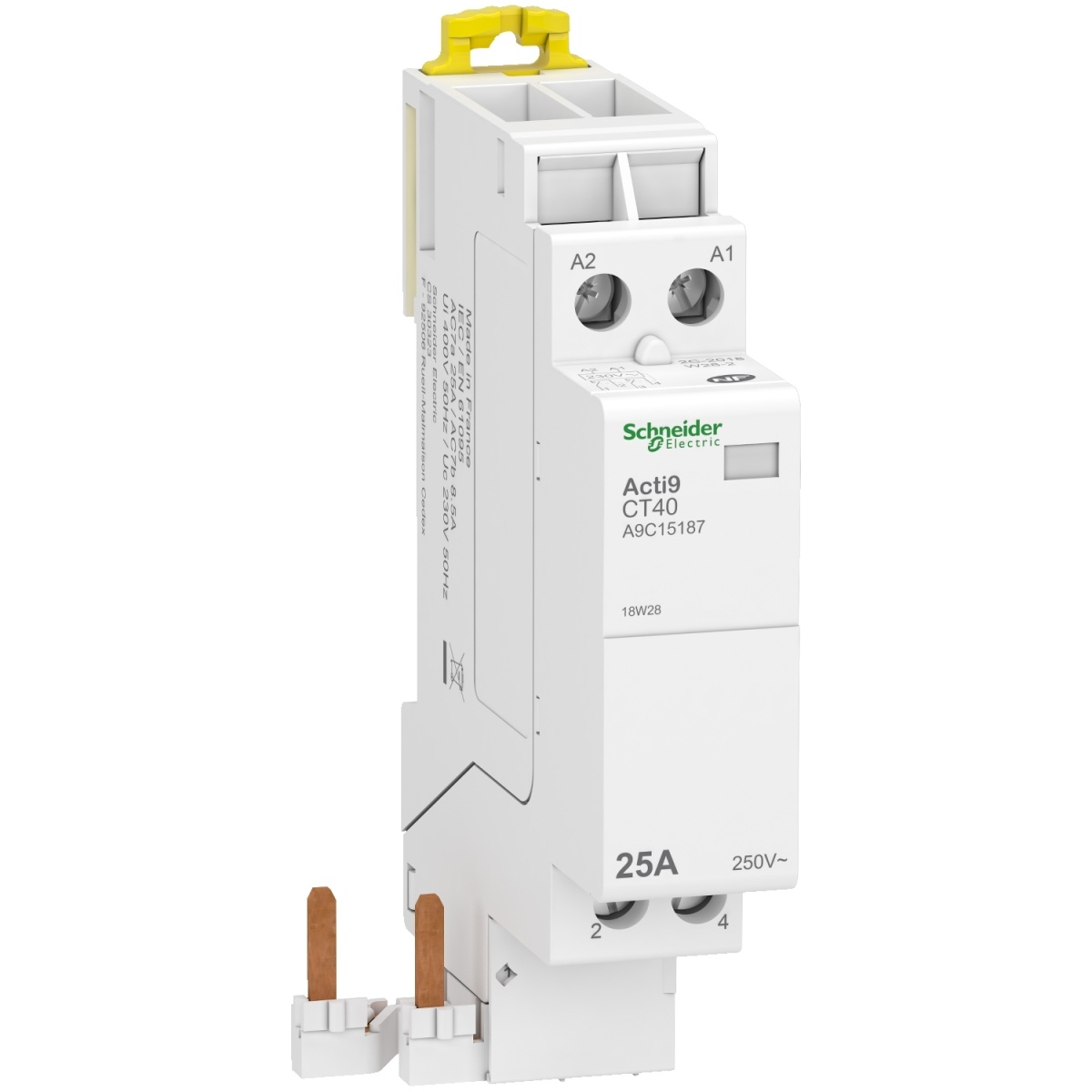

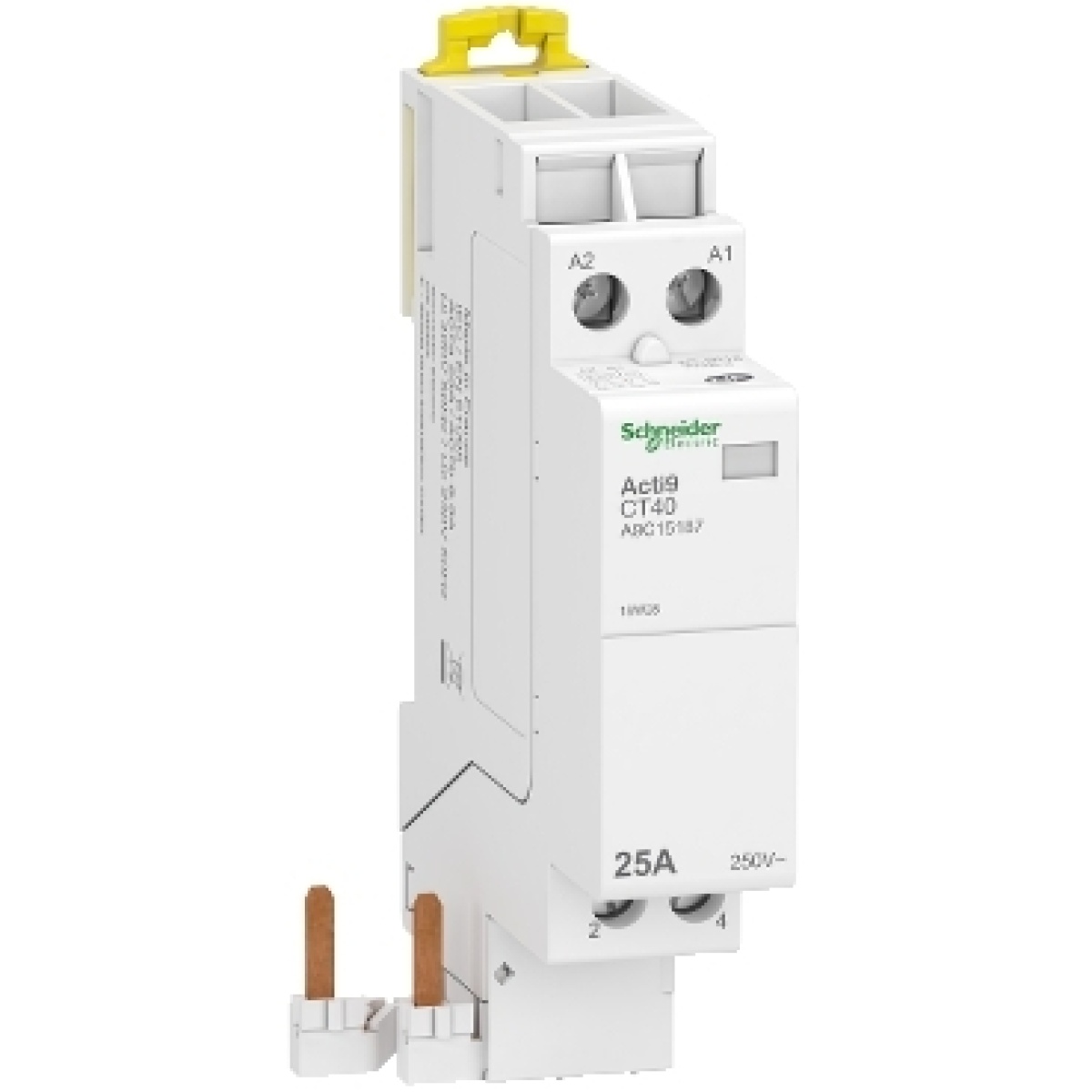

Acti9 CT40 contactor - 2 NA - 25 A - 230V AC
Management and Measuring Devices
Acti9 CT40 contactor - 2 NA - 25 A - 230V AC
Manufacturer Ref:
A9C15187
Nortécnica Ref:
EAN:
3606489443658
Description
Technical Information
Attributes
Built-in depth
44
Rated operating voltage
250
250
Width in number of modular spacings
1
Max. incandescent lamp load
-
Max. load fluorescent lamp
-
Max. load fluorescent lamp Duo circuit
-
Max. load fluorescent lamp parallel compensated
-
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
25
Additional equipment possible
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Rated excitation voltage
230
230
Hum-free
No
Utilization category according to EN IEC 60947-4-1
AC-1
With daynight function
No
Brands
Schneider
Technical Sheet
