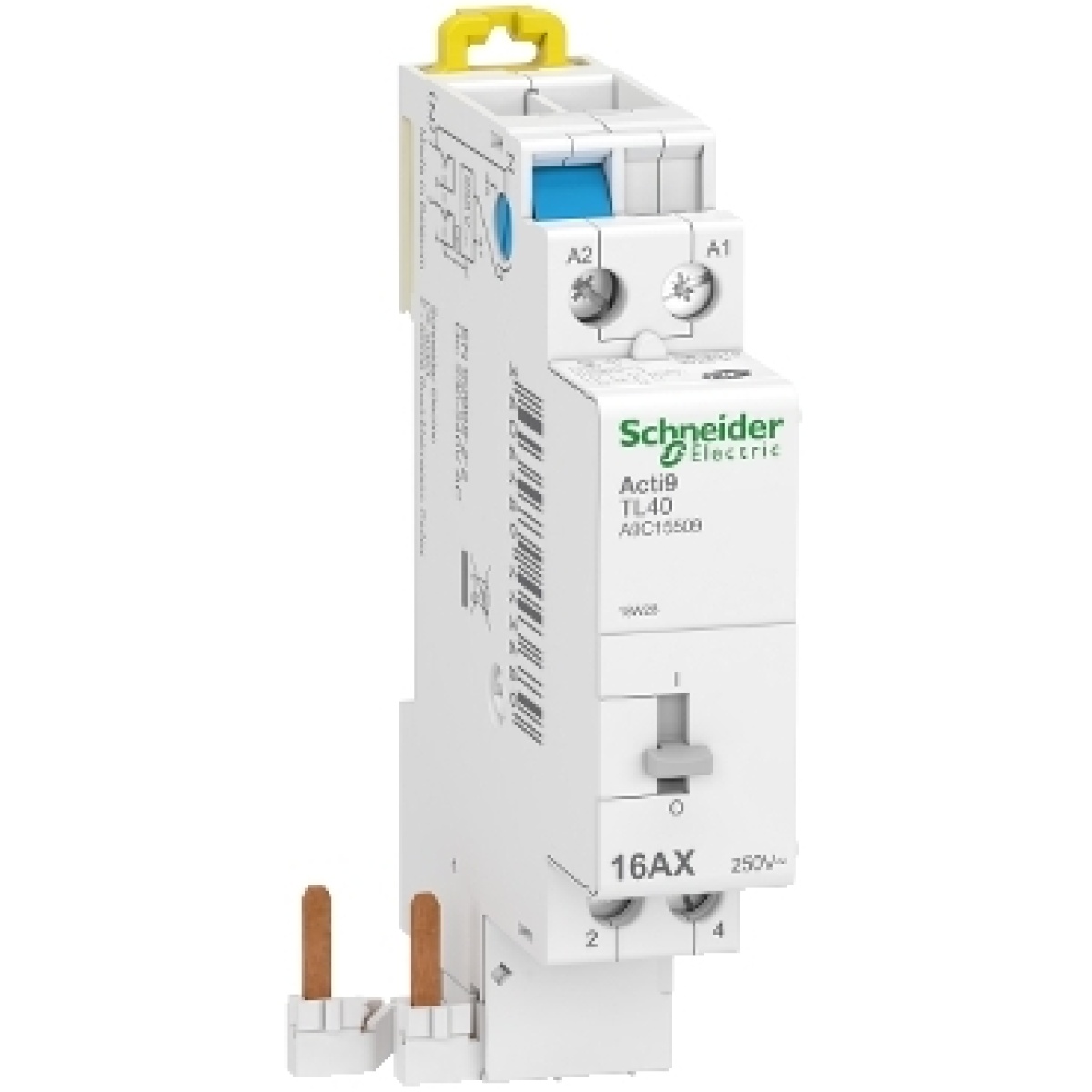

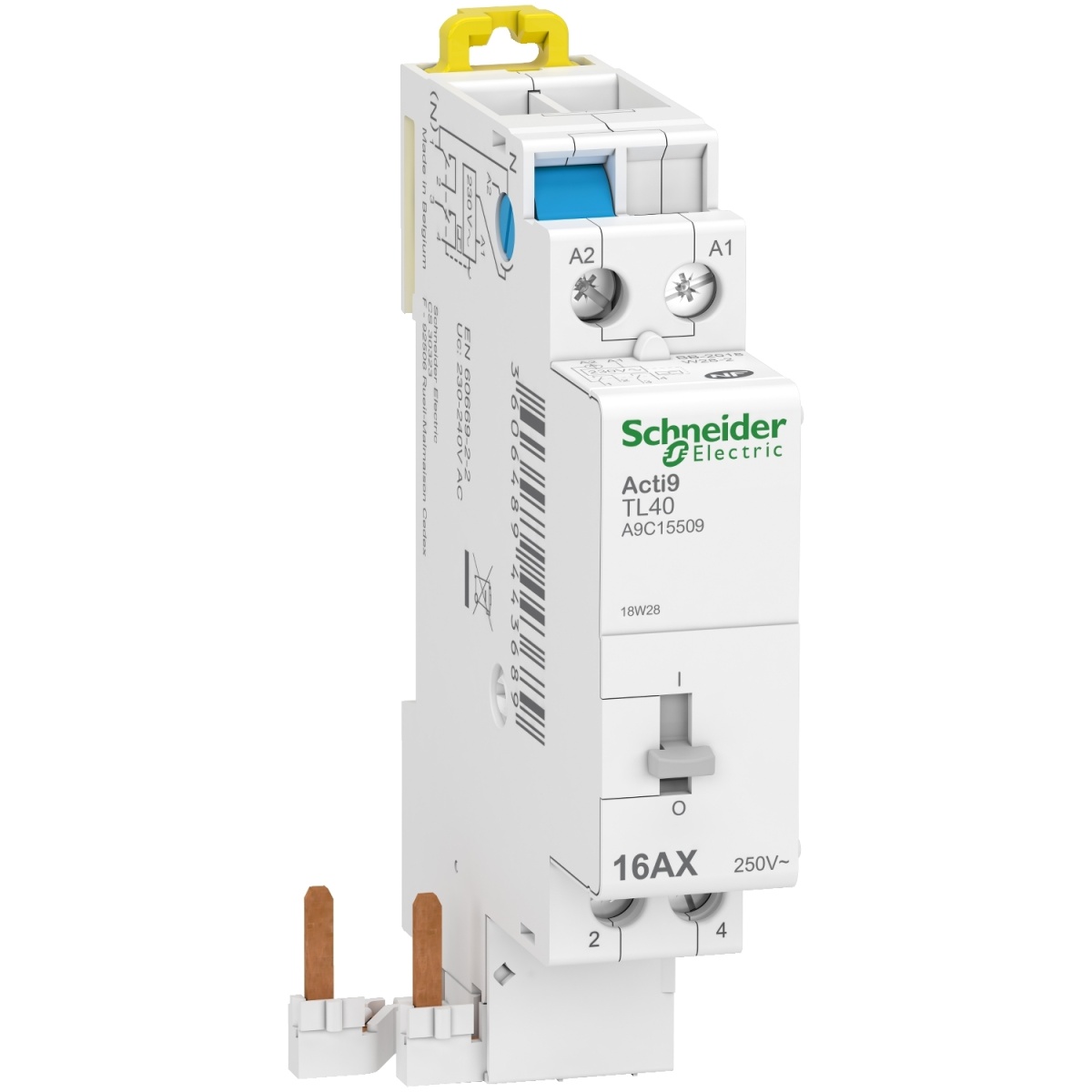

Acti9 TL40 - telerruptor - 2P - 2NA - 16A - VCA 230 V AC 50Hz
Management and Measuring Devices
Acti9 TL40 - telerruptor - 2P - 2NA - 16A - VCA 230 V AC 50Hz
Manufacturer Ref:
A9C15509
Nortécnica Ref:
51A9C15509
EAN:
3606489443689
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Mechanical switch
Built-in depth
50
Width in number of modular spacings
1
Control voltage 1
230
230
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
-
Frequency control voltage 1
50
50
Frequency control voltage 2
-
-
Suitable for manual operation
Yes
Voltage type supply voltage
AC
Supply voltage
250
250
Max. switching current cos phi 0.6
-
Max. incandescent lamp load
-
Max. load fluorescent lamp
-
Max. load fluorescent lamp Duo circuit
-
Max. load fluorescent lamp parallel compensated
-
Rated switch current
16
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Brands
Schneider
Technical Sheet
