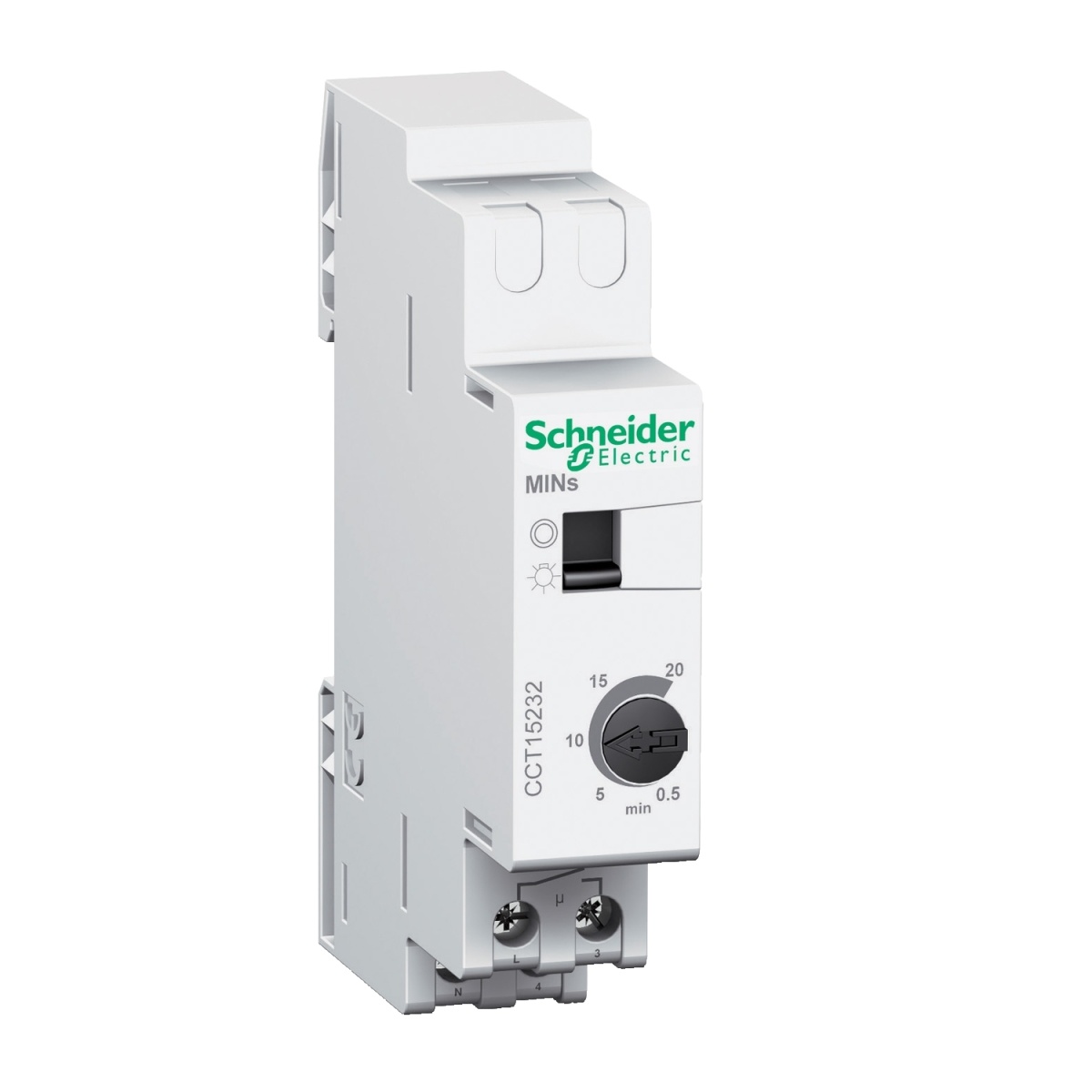

Automático de escada MINs
Management and Measuring Devices
Automático de escada MINs
Manufacturer Ref:
CCT15232
Nortécnica Ref:
51CCT15232
EAN:
3303431062621
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Electronic
Built-in depth
66
Power consumption
-
Release-delay
0.5
20
Width in number of modular spacings
1
Control voltage 1
230
230
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
-
Frequency control voltage 1
50
60
Frequency control voltage 2
50
50
Wiring system
3 and 4 wire configuration
Pre-warning of switching-off
None
Repetitive
None
Voltage type supply voltage
AC
Supply voltage
230
230
Max. switching current cos phi 0.6
10
Max. incandescent lamp load
2300
Max. load fluorescent lamp
2300
Max. load fluorescent lamp Duo circuit
2300
Max. load fluorescent lamp parallel compensated
400
Rated switch current
16
Push button glow-lamp current
-
Current surge function selectable
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Max. switching power LED
-
Brands
Schneider
