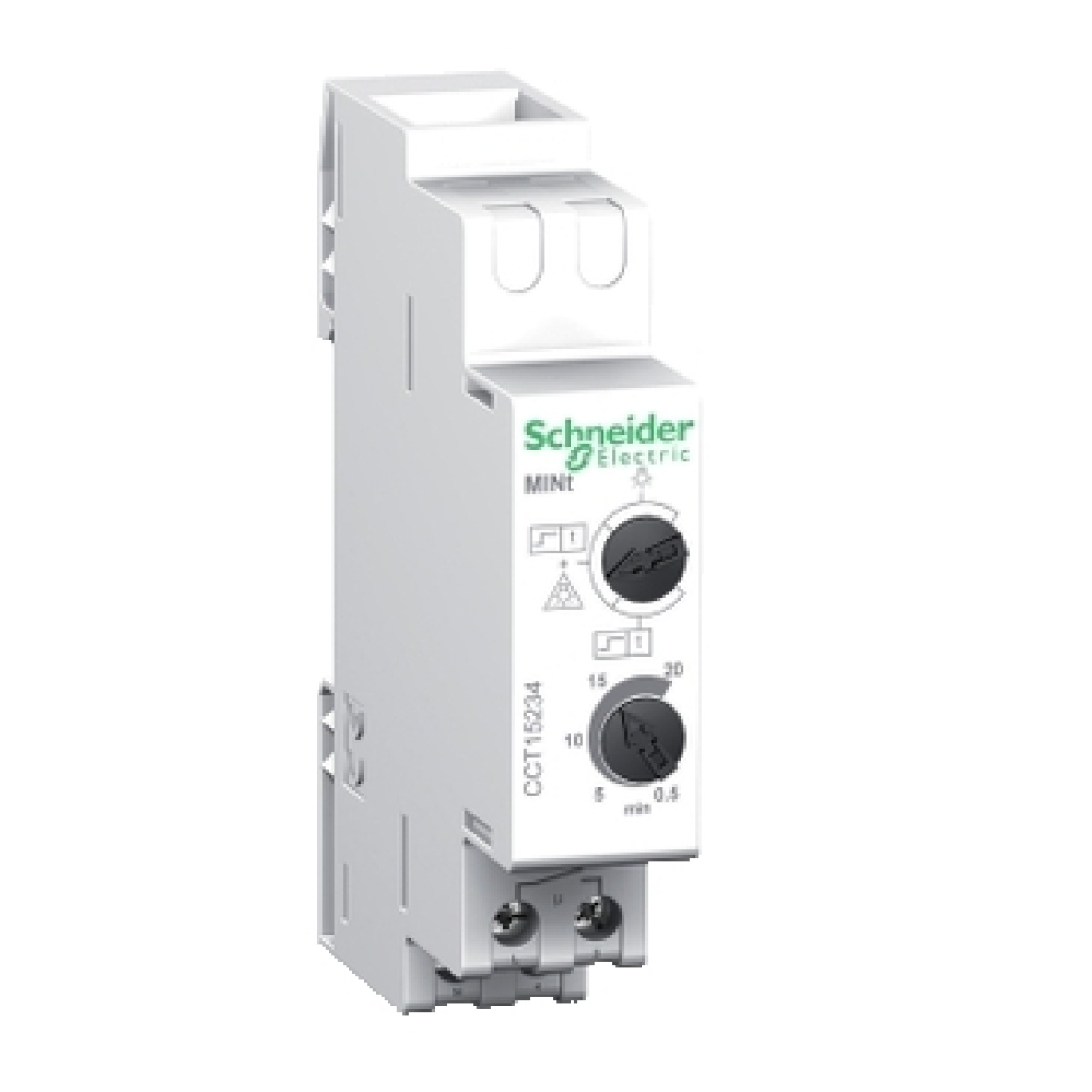

Automático de escada MINt
Management and Measuring Devices
Automático de escada MINt
Manufacturer Ref:
CCT15234
Nortécnica Ref:
EAN:
3303431062645
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Electronic with switching-off pre-warning
Built-in depth
66
Power consumption
-
Release-delay
0.5
20
Width in number of modular spacings
1
Control voltage 1
230
230
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
-
Frequency control voltage 1
50
60
Frequency control voltage 2
-
-
Wiring system
3 and 4 wire configuration
Pre-warning of switching-off
Flickering
Repetitive
Repetitive
Voltage type supply voltage
AC
Supply voltage
230
230
Max. switching current cos phi 0.6
10
Max. incandescent lamp load
2300
Max. load fluorescent lamp
2300
Max. load fluorescent lamp Duo circuit
2300
Max. load fluorescent lamp parallel compensated
1300
Rated switch current
16
Push button glow-lamp current
50
Current surge function selectable
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Max. switching power LED
-
Brands
Schneider
Technical Sheet
