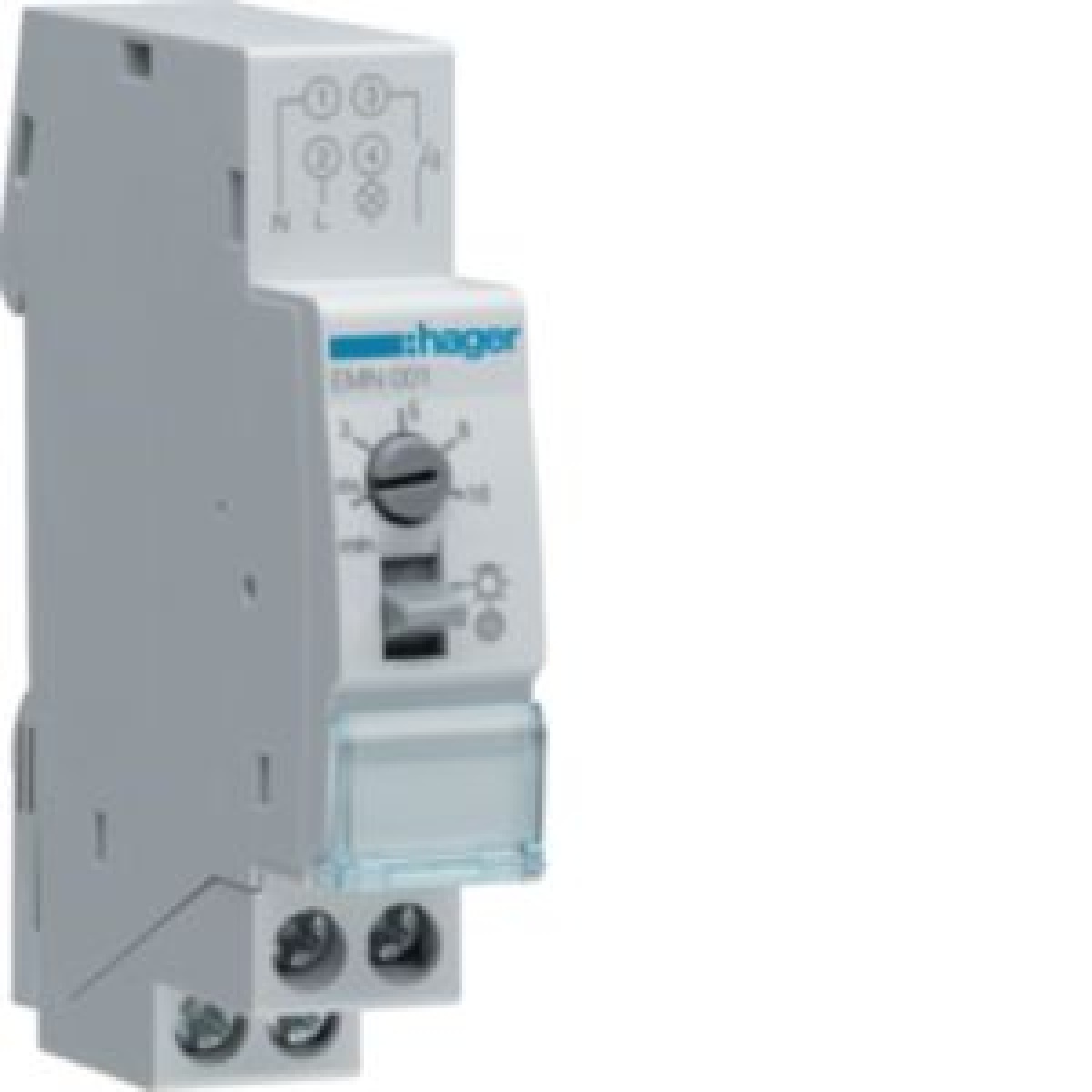

Automático escada simples
Management and Measuring Devices
Automático escada simples
Manufacturer Ref:
EMN001
Nortécnica Ref:
71EMN001
EAN:
3250612339969
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Electronic
Built-in depth
64
Power consumption
-
Release-delay
0.5
10
Width in number of modular spacings
1
Control voltage 1
230
230
Control voltage 2
230
230
Type of control voltage 1
AC
Type of control voltage 2
AC
Frequency control voltage 1
50
60
Frequency control voltage 2
50
60
Wiring system
3 and 4 wire configuration
Pre-warning of switching-off
None
Repetitive
Repetitive
Voltage type supply voltage
AC
Supply voltage
230
230
Max. switching current cos phi 0.6
16
Max. incandescent lamp load
2300
Max. load fluorescent lamp
3600
Max. load fluorescent lamp Duo circuit
1000
Max. load fluorescent lamp parallel compensated
1000
Rated switch current
16
Push button glow-lamp current
100
Current surge function selectable
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Max. switching power LED
400
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
