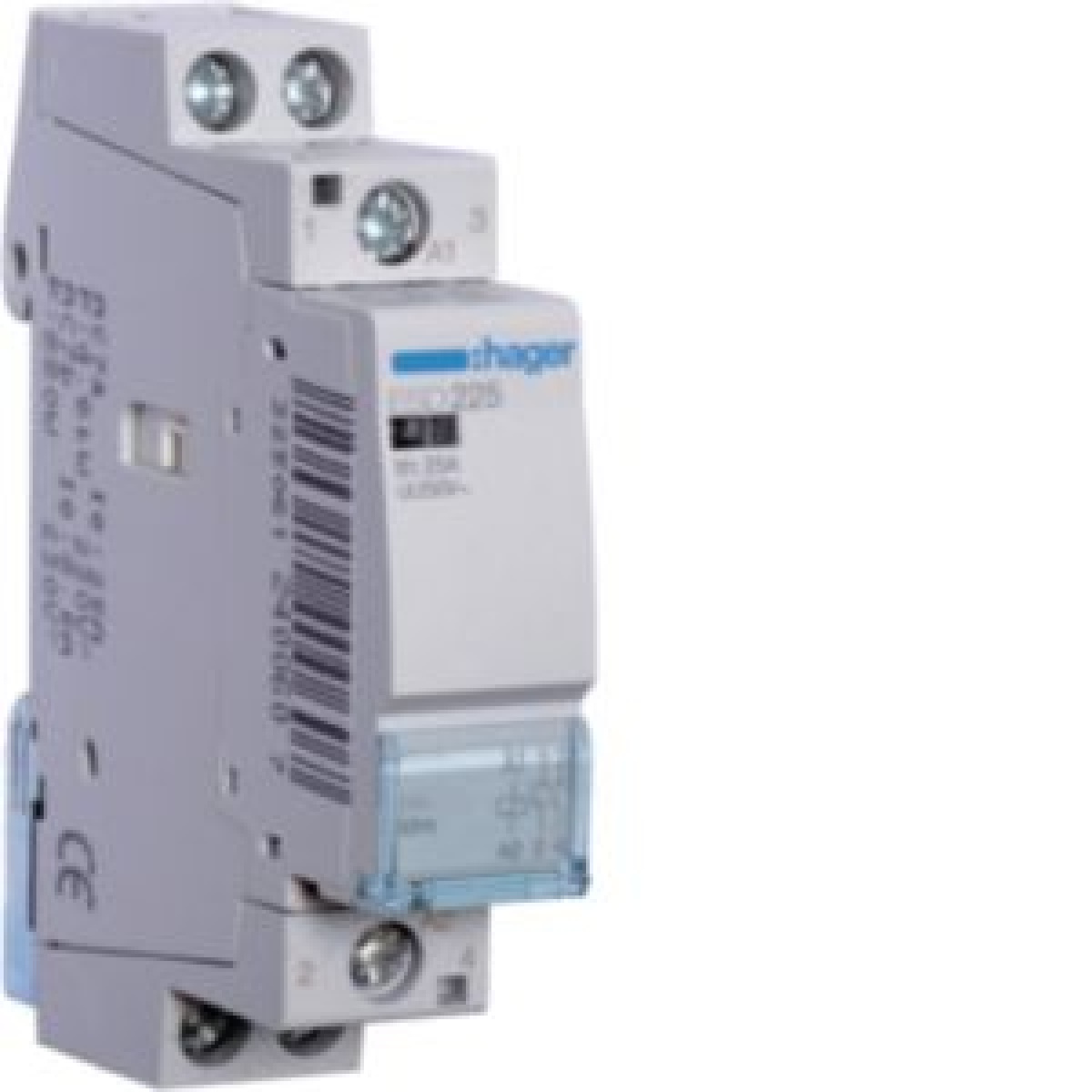

Contactor 25A 2NA 24V 1M
Management and Measuring Devices
Contactor 25A 2NA 24V 1M
Manufacturer Ref:
ESD225
Nortécnica Ref:
71ESD225
EAN:
3250612400584
Description
Technical Information
Attributes
Built-in depth
60
Rated operating voltage
230
230
Width in number of modular spacings
1
Max. incandescent lamp load
1900
Max. load fluorescent lamp
950
Max. load fluorescent lamp Duo circuit
1990
Max. load fluorescent lamp parallel compensated
810
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP2X
Rated operation current
25
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Rated excitation voltage
24
24
Hum-free
No
Utilization category according to EN IEC 60947-4-1
AC7aAC7b
With daynight function
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
