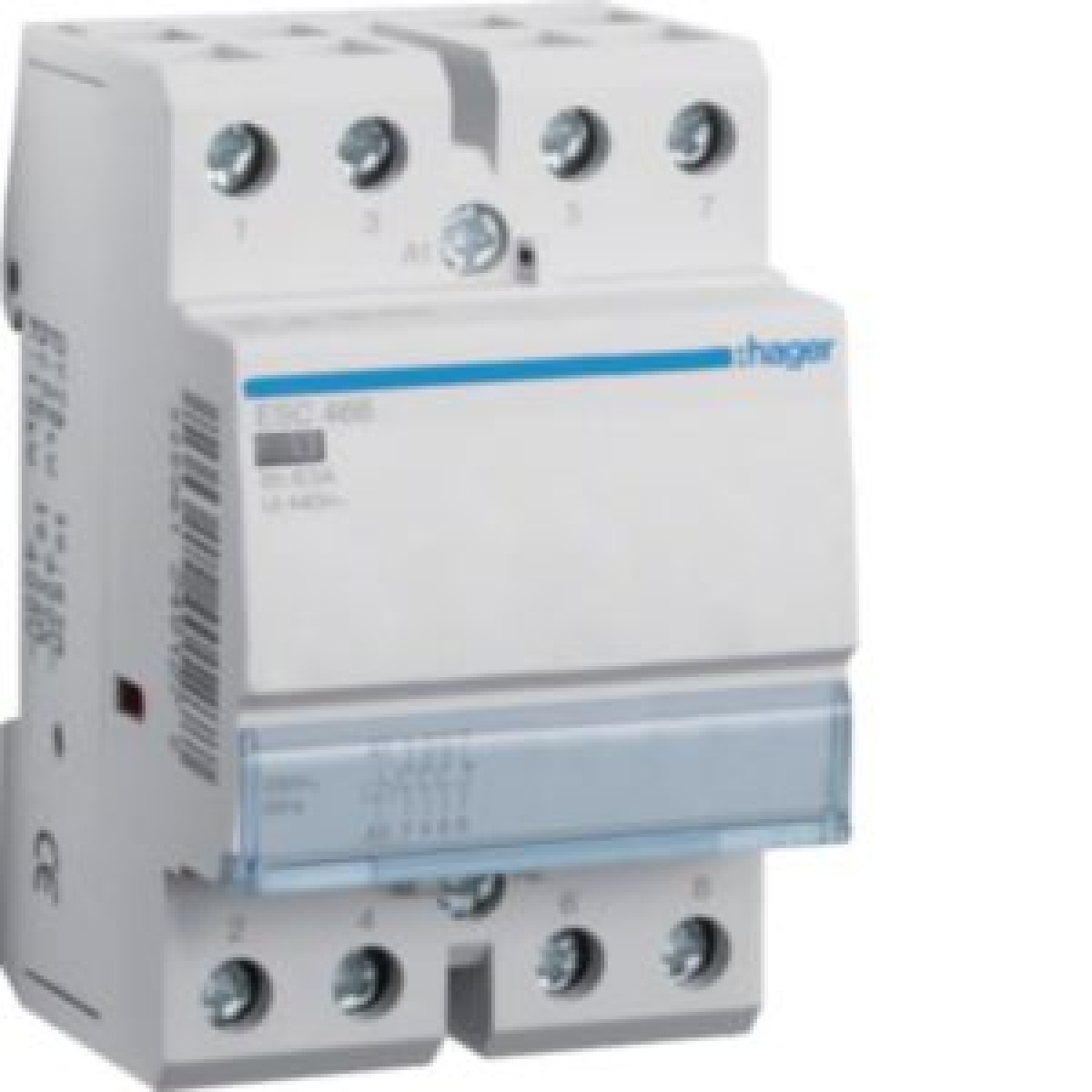

Contactor 63A 3NA1NF 230V 3M
Management and Measuring Devices
Contactor 63A 3NA1NF 230V 3M
Manufacturer Ref:
ESC466
Nortécnica Ref:
71ESC466
EAN:
3250612401277
Description
Technical Information
Attributes
Built-in depth
60
Rated operating voltage
400
400
Width in number of modular spacings
3
Max. incandescent lamp load
6500
Max. load fluorescent lamp
3000
Max. load fluorescent lamp Duo circuit
4700
Max. load fluorescent lamp parallel compensated
2100
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP2X
Rated operation current
63
Additional equipment possible
Yes
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
3
Rated excitation voltage
230
230
Hum-free
No
Utilization category according to EN IEC 60947-4-1
AC7aAC7b
With daynight function
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
