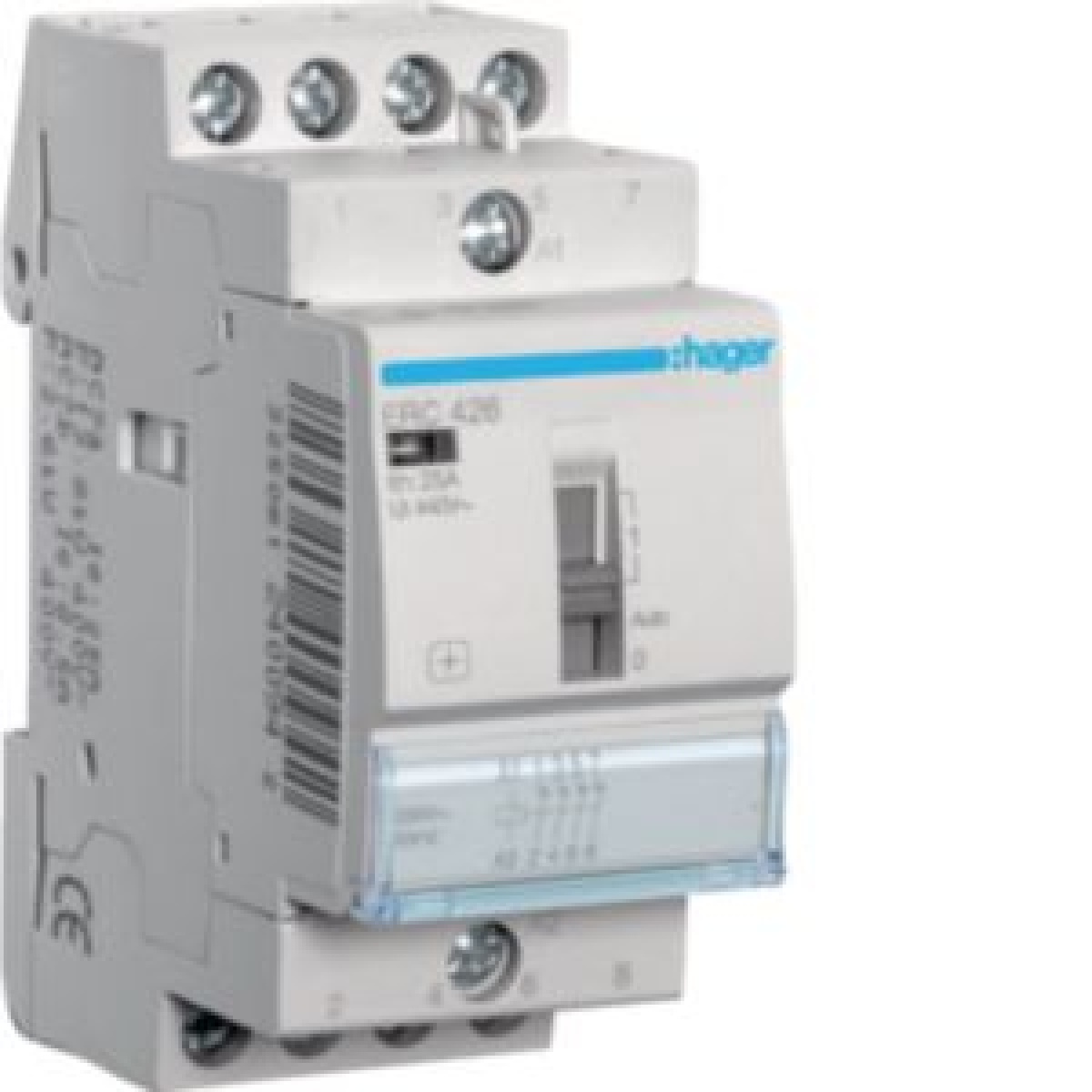

Contactor com manu 25A 4NF 230V
Management and Measuring Devices
Contactor com manu 25A 4NF 230V
Manufacturer Ref:
ERC426
Nortécnica Ref:
71ERC426
EAN:
3250612400942
Description
Technical Information
Attributes
Built-in depth
60
Rated operating voltage
400
400
Width in number of modular spacings
2
Max. incandescent lamp load
1900
Max. load fluorescent lamp
950
Max. load fluorescent lamp Duo circuit
1990
Max. load fluorescent lamp parallel compensated
810
Slider for hand switch
Yes
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP2X
Rated operation current
25
Additional equipment possible
Yes
Number of contacts as normally closed contact
4
Number of contacts as normally open contact
0
Rated excitation voltage
230
230
Hum-free
No
Utilization category according to EN IEC 60947-4-1
AC7aAC7b
With daynight function
No
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
