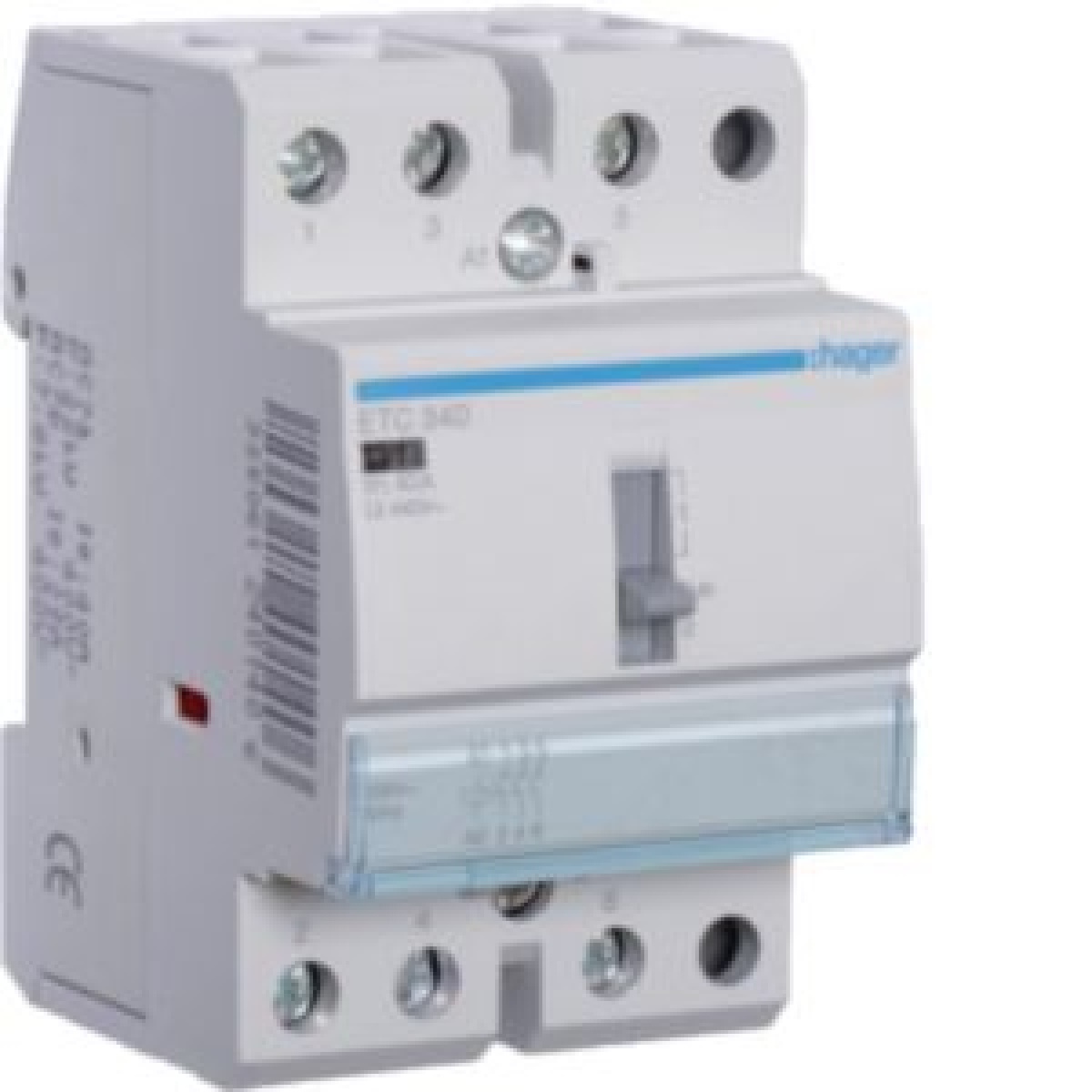

Contactor dianoite 40A 3NA 230V 3M
Management and Measuring Devices
Contactor dianoite 40A 3NA 230V 3M
Manufacturer Ref:
ETC340
Nortécnica Ref:
71ETC340
EAN:
3250612401406
Description
Technical Information
Attributes
Built-in depth
64
Rated operating voltage
400
400
Width in number of modular spacings
-
Max. incandescent lamp load
4000
Max. load fluorescent lamp
1900
Max. load fluorescent lamp Duo circuit
3000
Max. load fluorescent lamp parallel compensated
1300
Slider for hand switch
Yes
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP2X
Rated operation current
40
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
3
Rated excitation voltage
230
230
Hum-free
-
Utilization category according to EN IEC 60947-4-1
-
With daynight function
-
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
