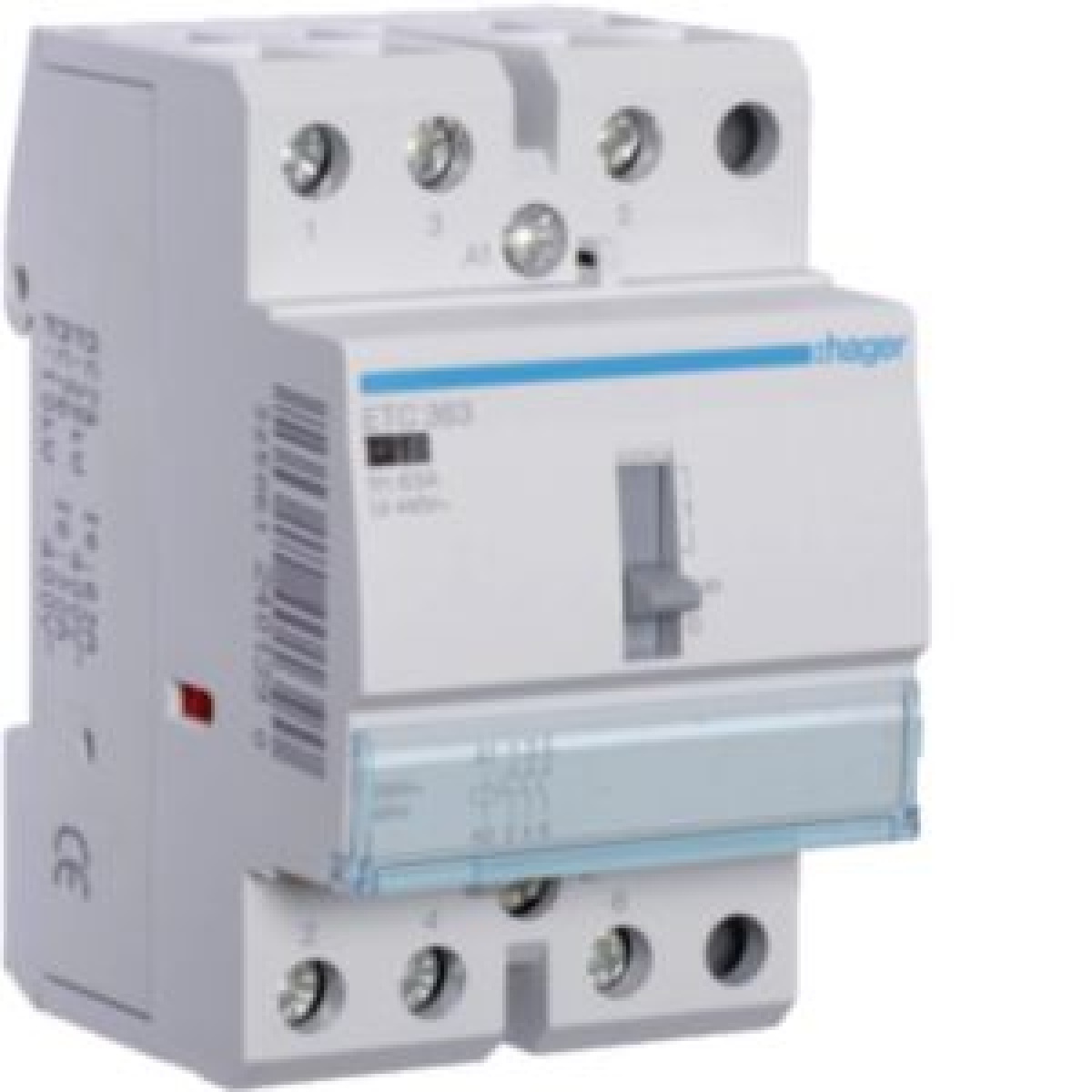

Contactor dianoite 63A 3NA 230V 3M
Management and Measuring Devices
Contactor dianoite 63A 3NA 230V 3M
Manufacturer Ref:
ETC363
Nortécnica Ref:
EAN:
3250612401390
Description
Technical Information
Attributes
Built-in depth
64
Rated operating voltage
400
400
Width in number of modular spacings
-
Max. incandescent lamp load
6500
Max. load fluorescent lamp
3000
Max. load fluorescent lamp Duo circuit
4700
Max. load fluorescent lamp parallel compensated
2100
Slider for hand switch
Yes
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP2X
Rated operation current
63
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
3
Rated excitation voltage
230
230
Hum-free
-
Utilization category according to EN IEC 60947-4-1
-
With daynight function
-
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
