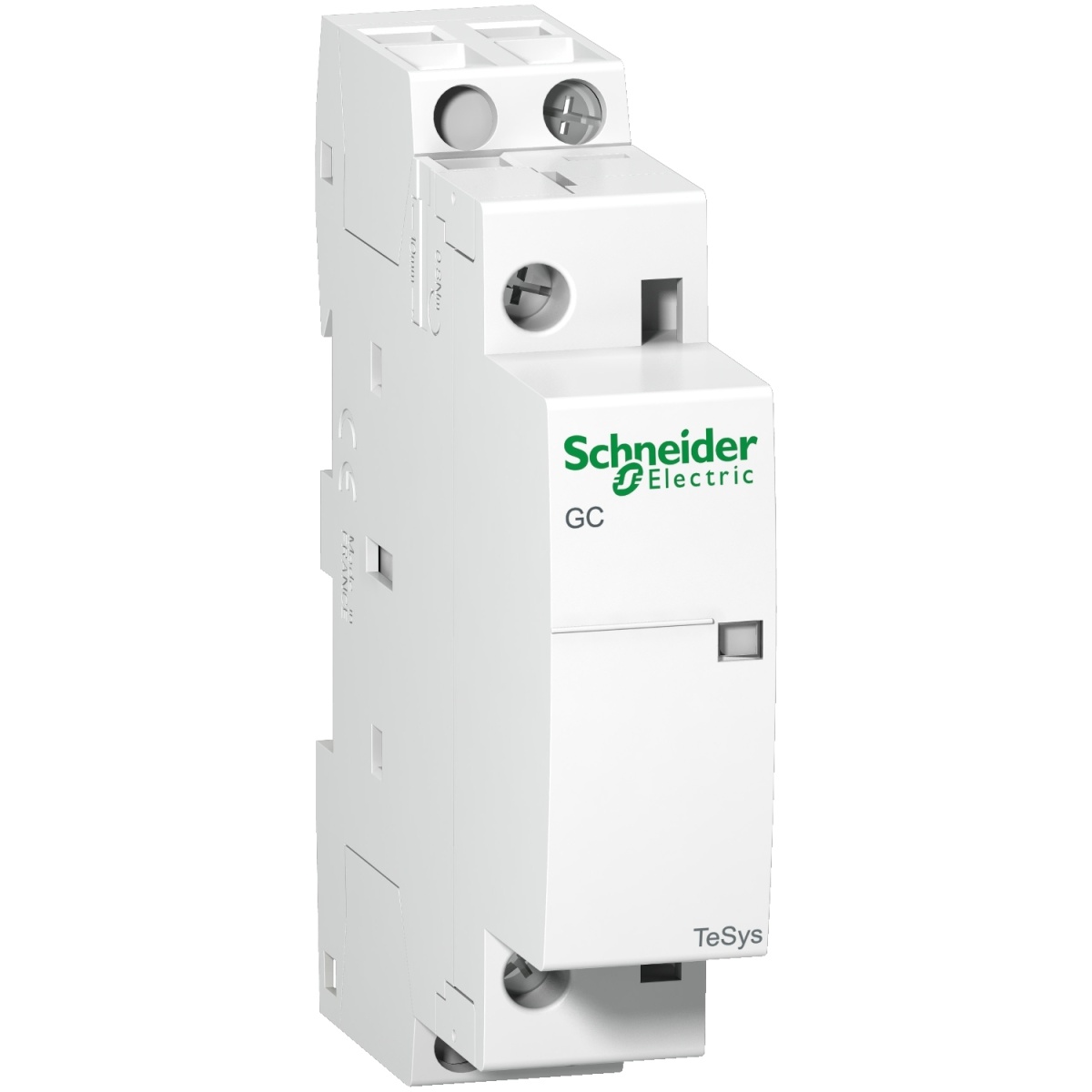

Contactor modular GC - 16A AC1 1P 220240VCA
Management and Measuring Devices
Contactor modular GC - 16A AC1 1P 220240VCA
Manufacturer Ref:
GC1610M5
Nortécnica Ref:
52GC1610M5
EAN:
3389110641233
Description
Technical Information
Attributes
Built-in depth
62.5
Rated operating voltage
250
250
Width in number of modular spacings
1
Max. incandescent lamp load
1800
Max. load fluorescent lamp
650
Max. load fluorescent lamp Duo circuit
800
Max. load fluorescent lamp parallel compensated
600
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
16
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Rated excitation voltage
220
240
Hum-free
Yes
Utilization category according to EN IEC 60947-4-1
AC-7a
With daynight function
Yes
Brands
Schneider
Technical Sheet
