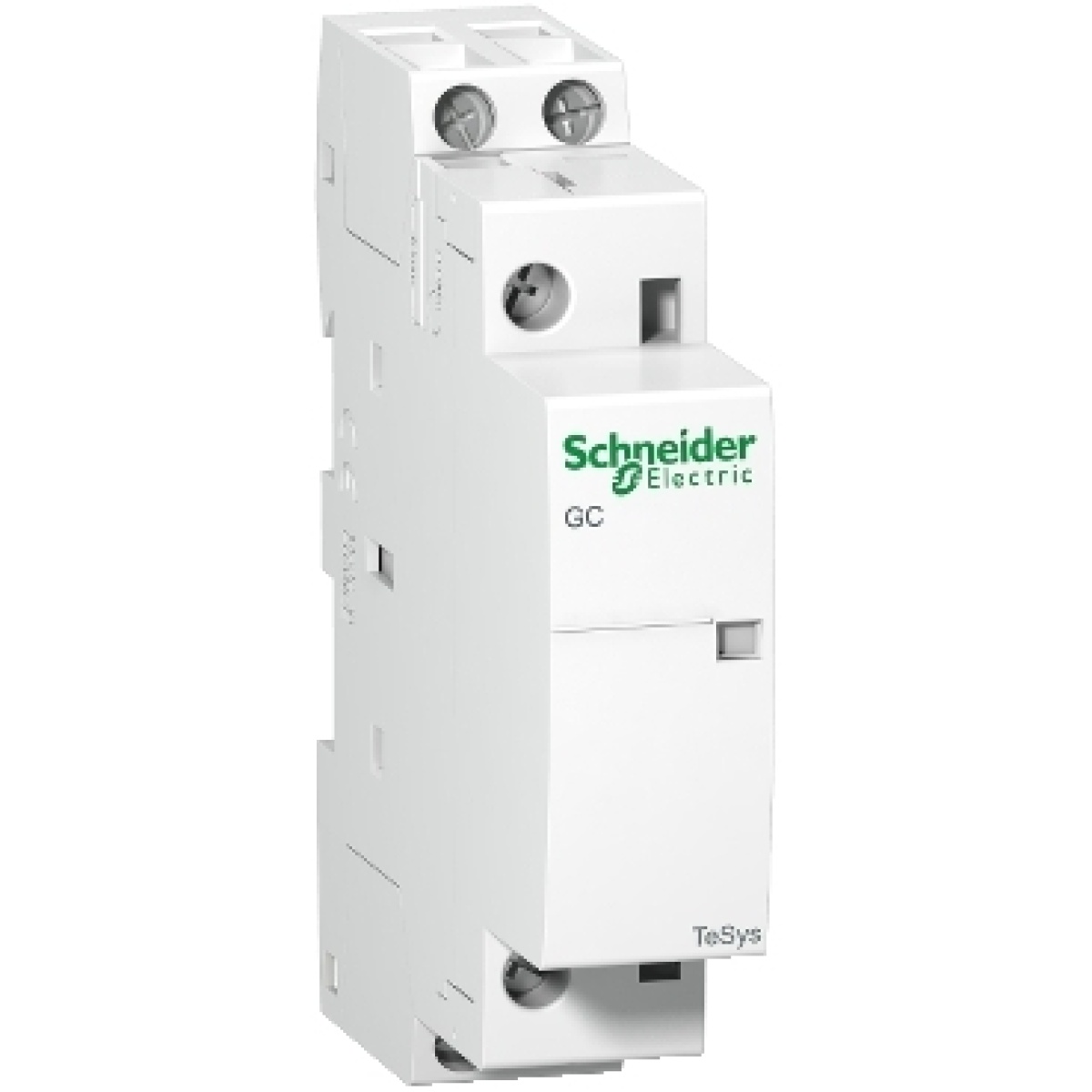

Contactor modular GC - 25A AC1 2R 220240VCA
Management and Measuring Devices
Contactor modular GC - 25A AC1 2R 220240VCA
Manufacturer Ref:
GC2502M5
Nortécnica Ref:
EAN:
3389110641592
Description
Technical Information
Attributes
Built-in depth
62.5
Rated operating voltage
250
250
Width in number of modular spacings
1
Max. incandescent lamp load
2800
Max. load fluorescent lamp
1000
Max. load fluorescent lamp Duo circuit
1200
Max. load fluorescent lamp parallel compensated
800
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
25
Additional equipment possible
Yes
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
0
Rated excitation voltage
220
240
Hum-free
Yes
Utilization category according to EN IEC 60947-4-1
AC-7a
With daynight function
Yes
Brands
Schneider
Technical Sheet
