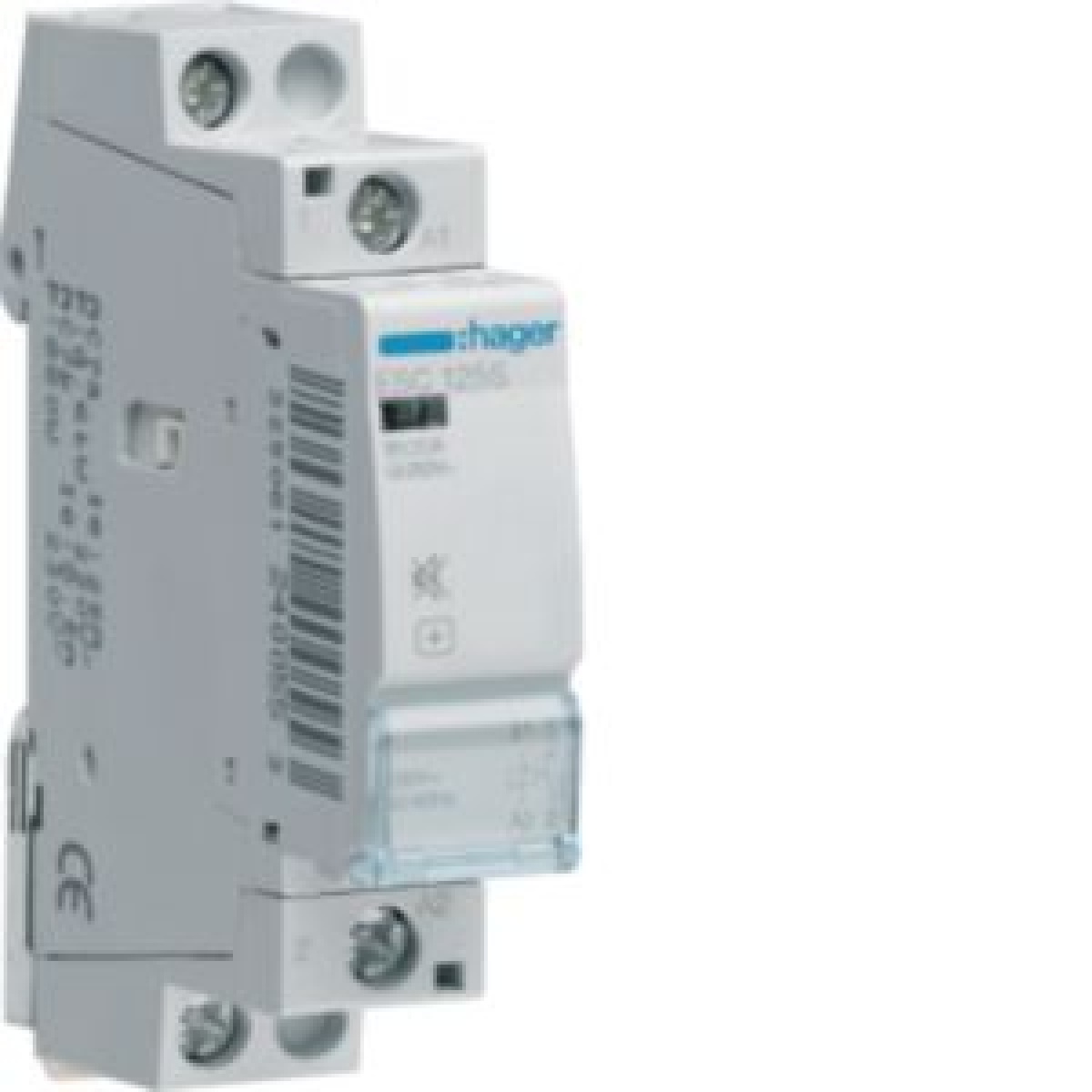

Contactor silencioso 25A 1NA 230V
Management and Measuring Devices
Contactor silencioso 25A 1NA 230V
Manufacturer Ref:
ESC125S
Nortécnica Ref:
71ESC125S
EAN:
3250612230617
Description
Technical Information
Attributes
Built-in depth
60
Rated operating voltage
230
230
Width in number of modular spacings
-
Max. incandescent lamp load
1900
Max. load fluorescent lamp
950
Max. load fluorescent lamp Duo circuit
1990
Max. load fluorescent lamp parallel compensated
810
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP2X
Rated operation current
25
Additional equipment possible
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Rated excitation voltage
230
230
Hum-free
-
Utilization category according to EN IEC 60947-4-1
-
With daynight function
-
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
