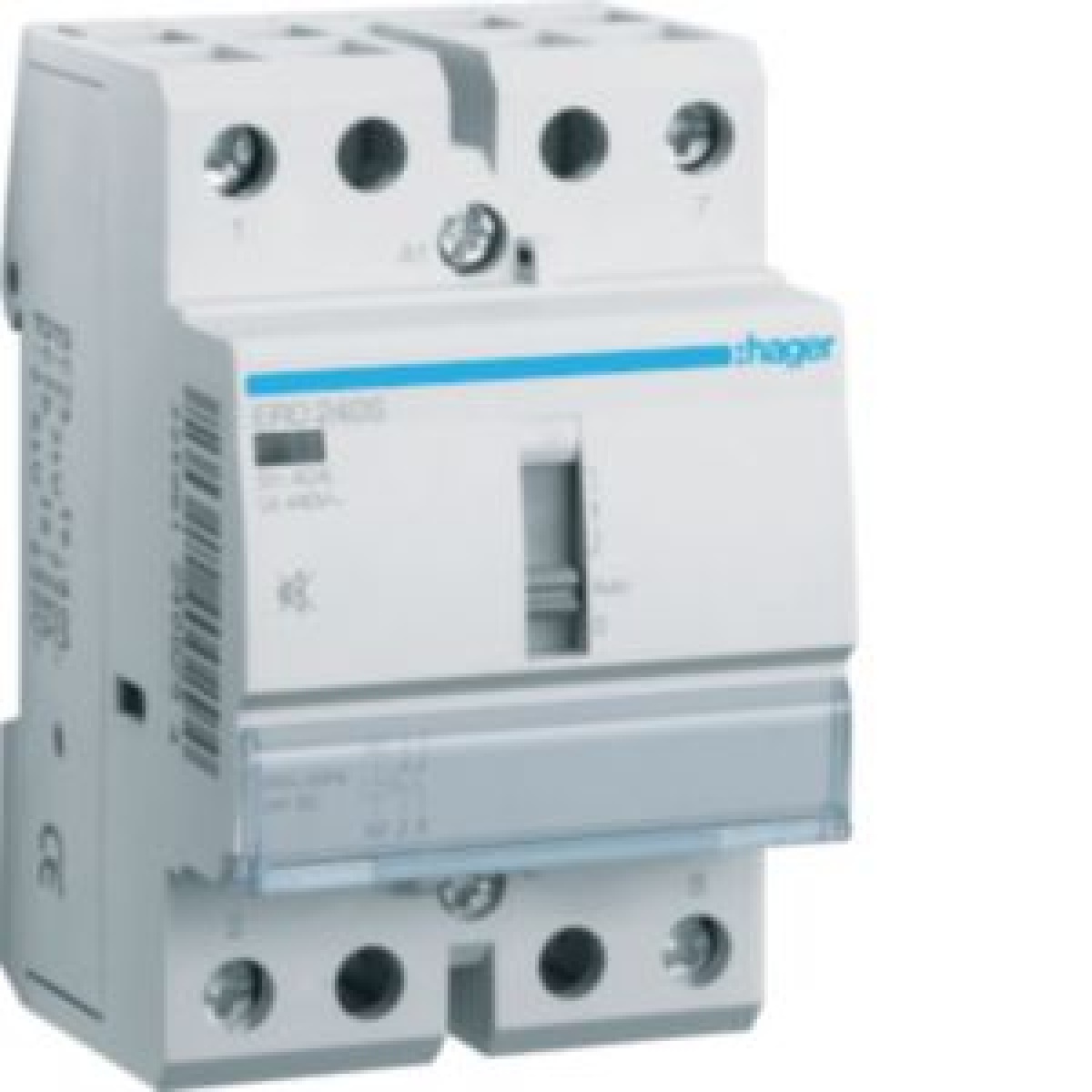

Contactor silencioso manu 40A 2NA 24V
Management and Measuring Devices
Contactor silencioso manu 40A 2NA 24V
Manufacturer Ref:
ERD240S
Nortécnica Ref:
71ERD240S
EAN:
3250612400294
Description
Technical Information
Attributes
Built-in depth
60
Rated operating voltage
400
400
Width in number of modular spacings
-
Max. incandescent lamp load
4000
Max. load fluorescent lamp
1900
Max. load fluorescent lamp Duo circuit
3000
Max. load fluorescent lamp parallel compensated
1300
Slider for hand switch
Yes
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP2X
Rated operation current
40
Additional equipment possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Rated excitation voltage
24
24
Hum-free
-
Utilization category according to EN IEC 60947-4-1
-
With daynight function
-
Brands
Hager Sistemas Eléctricos Modulares SA
Technical Sheet
