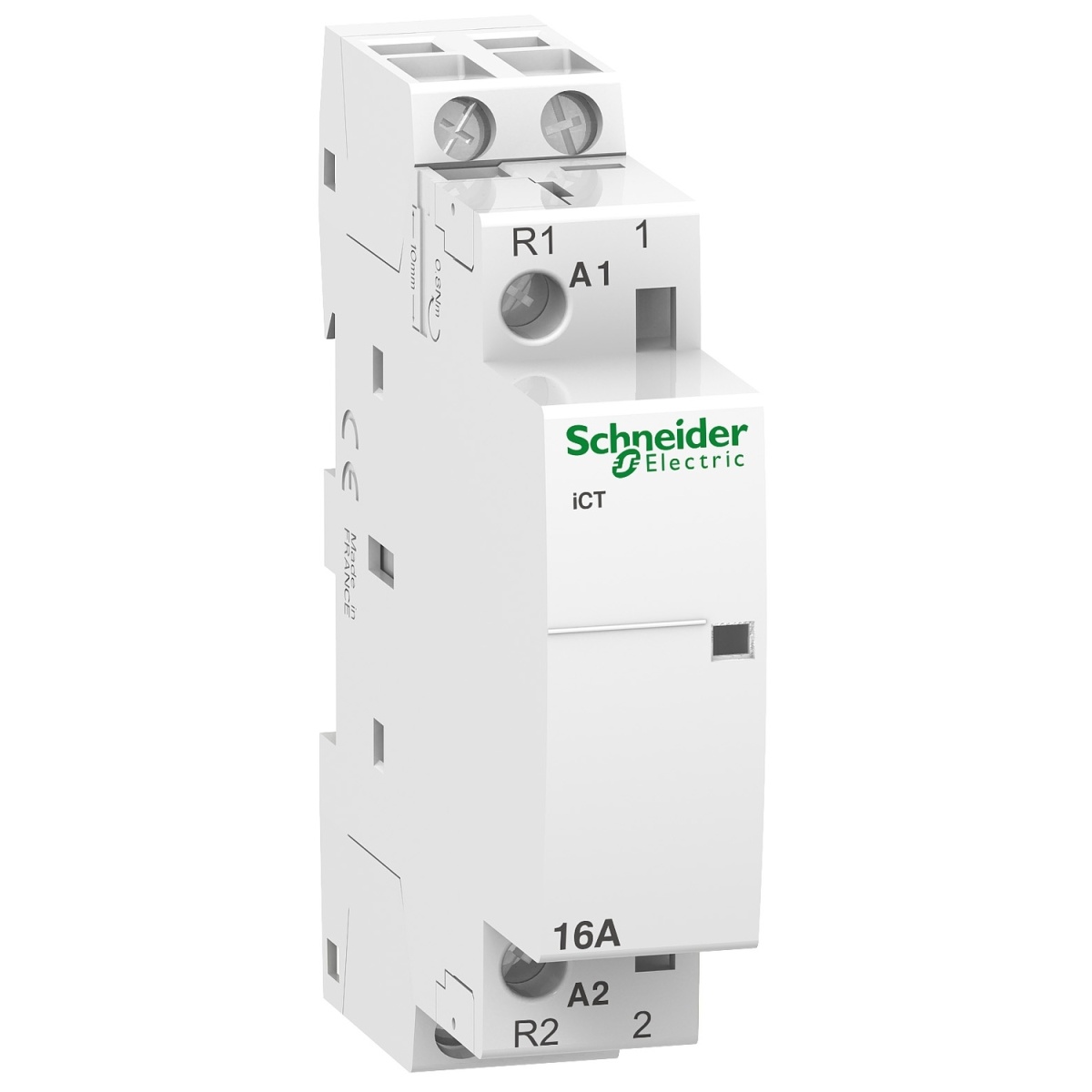

CONTATOR MODULAR ACTI9 ICT16A 1NA 1NF 220240VCA 60HZ A9C22615
Management and Measuring Devices
CONTATOR MODULAR ACTI9 ICT16A 1NA 1NF 220240VCA 60HZ A9C22615
Manufacturer Ref:
A9C22615
Nortécnica Ref:
EAN:
3606480097034
Description
Technical Information
Attributes
Built-in depth
43.5
Rated operating voltage
250
250
Width in number of modular spacings
1
Max. incandescent lamp load
2000
Max. load fluorescent lamp
850
Max. load fluorescent lamp Duo circuit
1500
Max. load fluorescent lamp parallel compensated
800
Slider for hand switch
No
Voltage type excitation voltage
AC
Voltage type operating voltage
AC
Degree of protection IP
IP20
Rated operation current
16
Additional equipment possible
Yes
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Rated excitation voltage
240
240
Hum-free
No
Utilization category according to EN IEC 60947-4-1
-
With daynight function
No
Brands
Schneider
Technical Sheet
